Timing Adjustment Tool Kit Ford Transit TDCi from 2016 EcoBlue

Timing Adjustment Tool Kit Ford Transit TDCi from 2016 EcoBlue

Country of Origin: Poland, warranty period - 24 months

The timing adjustment tool kit for Ford Transit TDCi from 2016 EcoBlue is a professional tool set designed for the easy and safe removal of the injection pump and for ensuring precise engine timing adjustment. Using this kit, no additional pump adjustment is required after reassembly. The kit is suitable for various Ford models with 2.0 EcoBlue TDCi engines.

Features:

• Enables the removal of the injection pump without requiring additional adjustments after reassembly.
• Compact and user-friendly for use with various Ford models.
• Replaces the Ford factory tool: OEM 303-1653.

Technical Specifications:

Engines:

• Ford 2.0 D EcoBlue TDCi with AWD, RWD, and FWD systems.

Engine Codes:

• BCCC, YLCB, YLDA, YLF6, YLFA, YLFB, YLFS, YLR6, YLRA, YMCB, YMF6, YMFA, YMFB, YMFS, YMHA, YMR6, YMRA, YNCA, YNF6, YNFA, YNFB, YNFS, YNR6, YNRA.

Applications:

Manufacturer: Ford

Models:

• Focus (from 2016)
• Galaxy (from 2016)
• S-MAX (from 2016)
• Tourneo Custom (from 2016)
• Transit (from 2016)
• Transit Custom (from 2016)

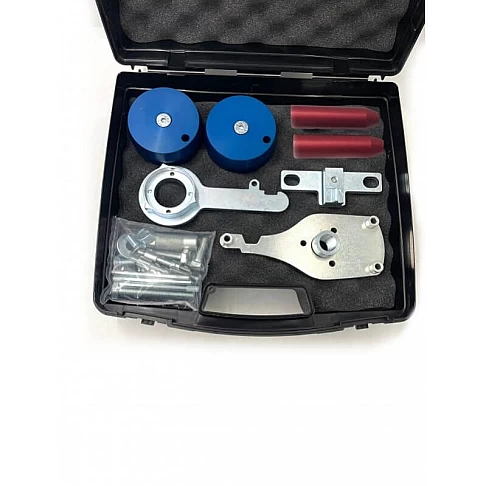

Contents:

• Flywheel lock
• Crankshaft lock
• Camshaft sprocket locking tool (2 pcs.)
• Curved plunger – 3 sets:
• 2 pcs. for fixing the camshaft sprocket locks
• 1 pc. for the camshaft belt tensioner locking tool
• Injection pump extraction plate
• Pump gear locking pins
• M6 nuts (3 pcs.) for securing the pins to the plate
• Plunger – pump extractor (disassembly)
• M6 bolts (3 pcs.) for securing the plate to the engine block
• Bushings (washers) for the bolts
• Bolt for pump extraction assembly
