Country of origin: Italy, warranty period – 24 months
Optional accessories for this device are listed below!

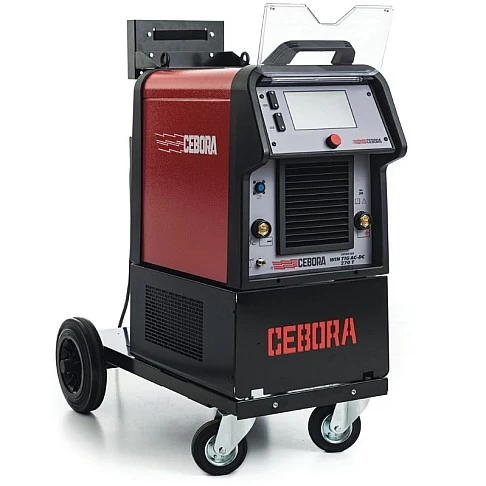

WIN TIG AC-DC 340 T is a powerful three-phase TIG and MMA welding machine with pulsed mode and high-frequency arc ignition. This inverter-based unit is designed for professional use in industry, manufacturing, energy, agriculture, and other demanding applications that require high performance and versatility. It is suitable for welding aluminum, stainless steel, and other non-ferrous metals.
Functions:
Three-phase inverter power source for TIG and MMA modes
High-frequency arc ignition (HF Ignition)
Electronic, stepless current adjustment
Up to 340 A in TIG mode
Up to 310 A in MMA mode
Wide duty cycle even at maximum capacity
High protection class IP23S
Suitable for various materials and metal thickness combinations
Technical specifications:
Power supply: three-phase, 400 V ±15%, 50/60 Hz
Fuse: TIG – 16 A, MMA – 20 A, slow-blow
Power in TIG mode: 11.3 kVA 40%, 10.3 kVA 60%, 9.7 kVA 100%
Power in MMA mode: 13.1 kVA 40%, 12.1 kVA 60%, 11.0 kVA 100%
Current adjustment range:
TIG: 3–340 A
MMA: 10–310 A
Duty cycle (10 min at 40 °C):
TIG: 340 A 40%, 300 A 60%, 310 A 100%
MMA: 310 A 40%, 290 A 60%, 280 A 100%
Protection class: IP23 S
Weight: 109 kg
Dimensions (LxWxH): 588 x 1120 x 1010 mm
Available accessories:
5 m extension cable for remote control
Foot pedal for current adjustment with 5 m cable and ON/OFF switch
Adapter for simultaneous connection of torch and pedal
Work return cable (3.5 m – 50 mm²)
Flowmeter with two pressure gauges
Remote control panel
5 m connection cable between the unit and control panel
10 m connection cable between the unit and control panel
Calibration certificate (valid for 1 year from the date of issue)
