Country of origin: Italy, warranty period – 24 months
Optional accessories for this device are listed below!

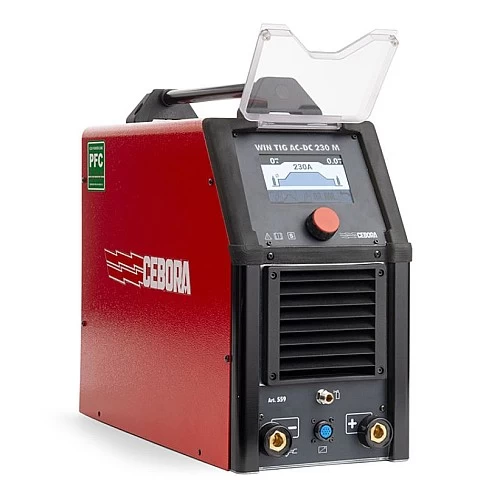

WIN TIG AC-DC 230 M is a single-phase TIG and MMA welding machine with pulsed mode and inverter technology, suitable for both direct (DC) and alternating (AC) current. The unit features high efficiency, powerful performance, and high-quality high-frequency arc ignition, making it an ideal solution for professionals working with aluminum, stainless steel, or other non-ferrous metals. Suitable for both production and mobile repair tasks.
Functions:
TIG and MMA welding with DC and AC current
Pulsed TIG mode
High-frequency arc ignition (HF)
Wide current adjustment range
Suitable for welding various metals: aluminum, stainless steel, steel, etc.
Compact and easy to transport – only 21.5 kg
Technical specifications:
Power supply: single-phase, 230 V +15% / -20%, 50/60 Hz
Fuse: 16 A, slow-blow
Power in TIG mode: 5.7 kVA 30%, 4.8 kVA 60%, 3.7 kVA 100%
Power in MMA mode: 6.2 kVA 40%, 4.8 kVA 60%, 3.6 kVA 100%
Current adjustment range:
TIG: 3–230 A
MMA: 10–180 A
Duty cycle (10 min at 40 °C):
TIG: 230 A 40%, 200 A 60%, 170 A 100%
MMA: 180 A 30%, 160 A 60%, 120 A 100%
Protection class: IP23 S
Weight: 21.5 kg
Dimensions (LxWxH): 232 x 530 x 467 mm
Available accessories:
5 m extension cable for remote control
Foot pedal for current adjustment with 5 m cable and ON/OFF switch
Adapter for simultaneous connection of torch and pedal
Work return cable (3.5 m – 25 mm²)
Flowmeter with two pressure gauges
Calibration certificate (valid for 1 year from the date of issue)
