TIG welding machine AC DC 200A

TIG welding machine AC DC 200A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

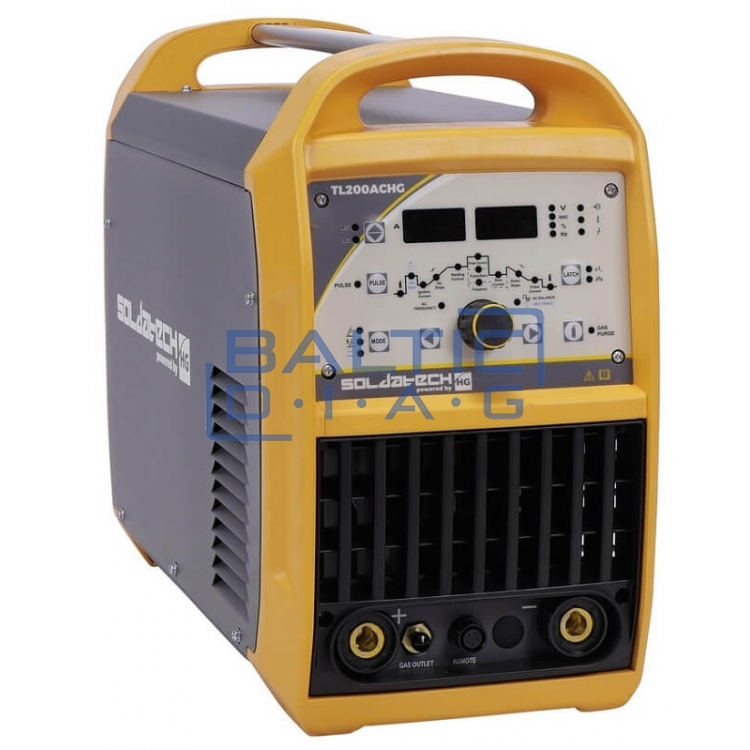

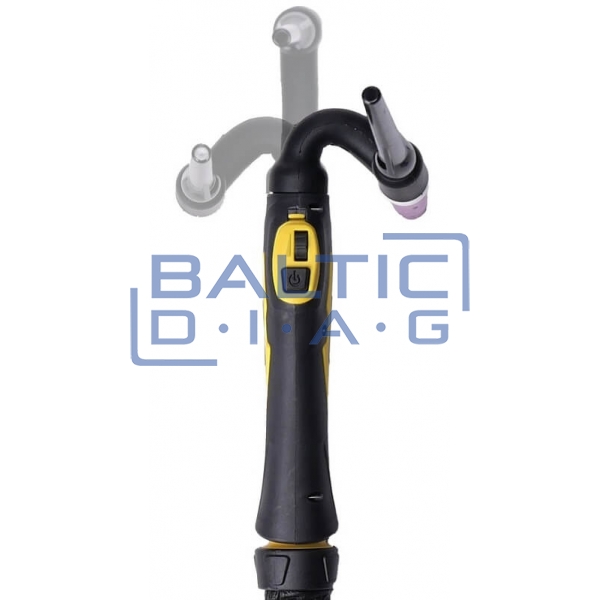

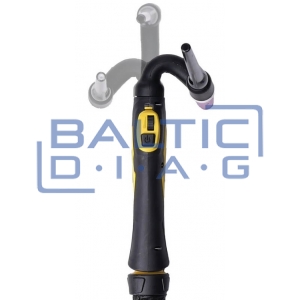

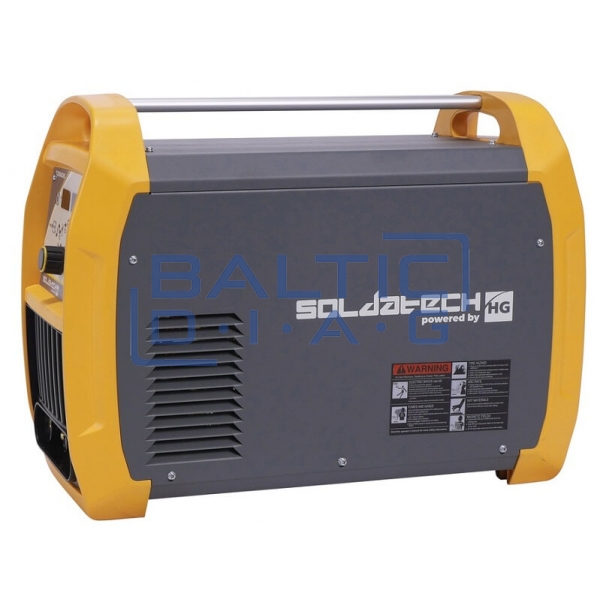

The TL200ACHG is a convenient and easy-to-use device that can process a variety of materials in a variety of welding processes, including AC/DC pulse, TIG and MMA welding. The adjustment and selection buttons allow you to easily set all the parameters of the TL200ACHG to ensure that every welding job is done with quality. Modern IGBT inverter technology ensures operation with higher power and longer duty cycle. Overload protection combined with a built-in fan prevents overheating and ensures high-quality welding performance for a long time. Adjustable digital display clearly shows welding processes and options. The TLT24M4 torch has a flexible head that allows TIG welding in any position. The TIG torch also has a remote control that can be used to adjust the amperage range during welding. The hot start/non-stick function rapidly increases the welding current to prevent the electrode from sticking to the workpiece during ARC welding. Ideal for welding aluminum stainless steel, carbon steel, low alloy steel, copper and special aluminum alloys.

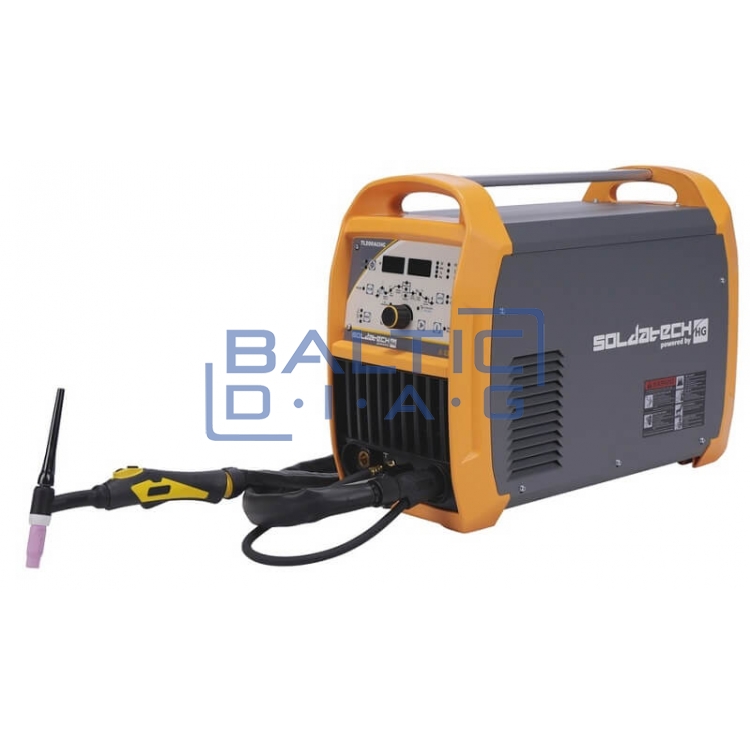

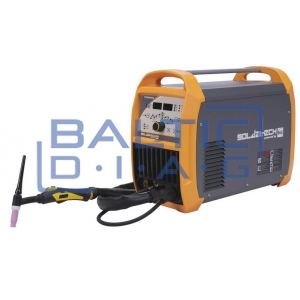

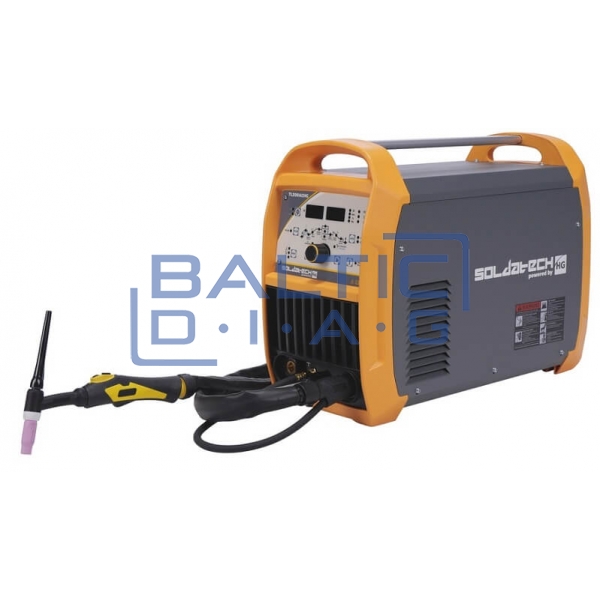

Standard equipment:

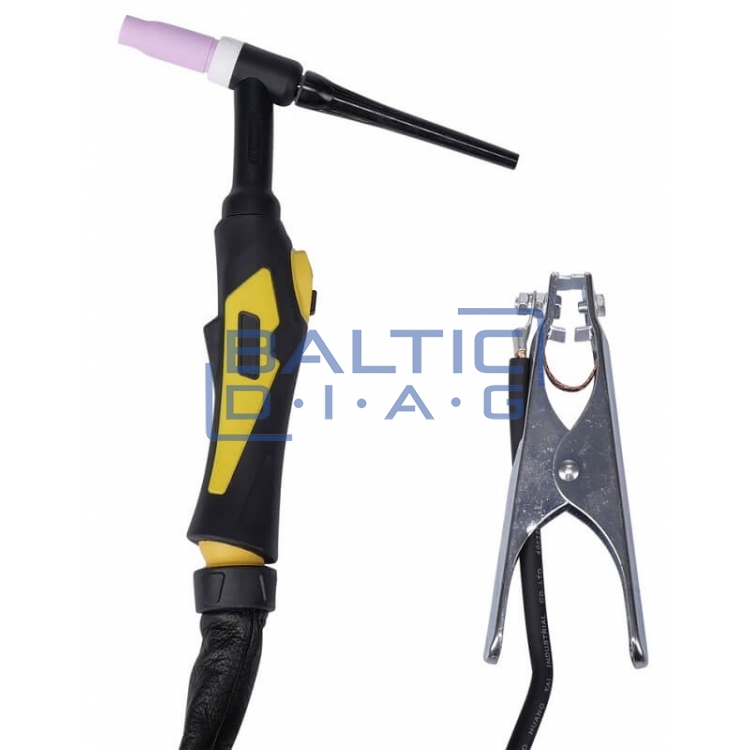

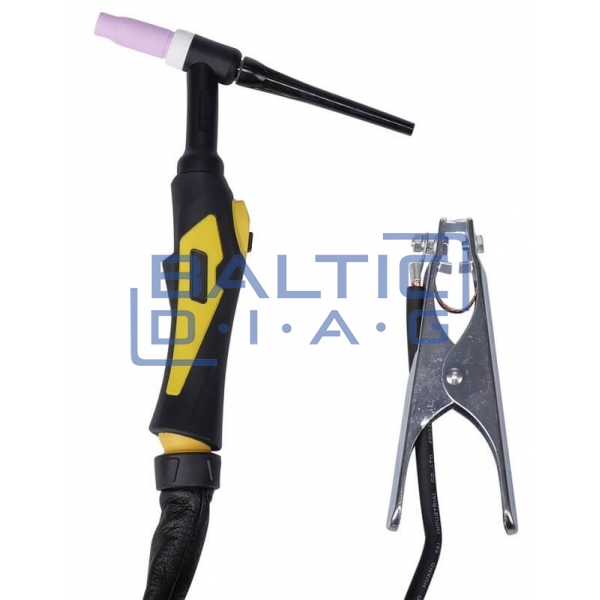

• Soldatech TLT26M4 remote flexible TIG torch with 4m cable
• Welding earth terminal with 3 m 16 mm² cable
• European Dinse connectors 13 mm
• Gas line with quick connection 3 m
• 3-pin 32A plug with 2 m 3x4 mm² cable

Technical specifications:

• Voltage = 230V - 1 phase
• Frequency = 50/60Hz
• Fuse protection = 16A B-char
• Input power = 8.05kVA
• No load voltage = 68V
• Duty cycle (at 20°C ambient temperature) = 35% - 200A
• Duty cycle (at 40°C ambient temperature) = 35% - 200A
• Welding current range MMA = 5 - 170A
• Welding current range DC TIG = 5 - 200A
• Welding current range AC TIG = 10 - 200A
• Protection class = IP21S
• Dimensions = 508 x 241 x 408 mm
• Weight = 19.5 kg
