TIG water-cooled welding machine AC DC 315A

TIG water-cooled welding machine AC DC 315A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

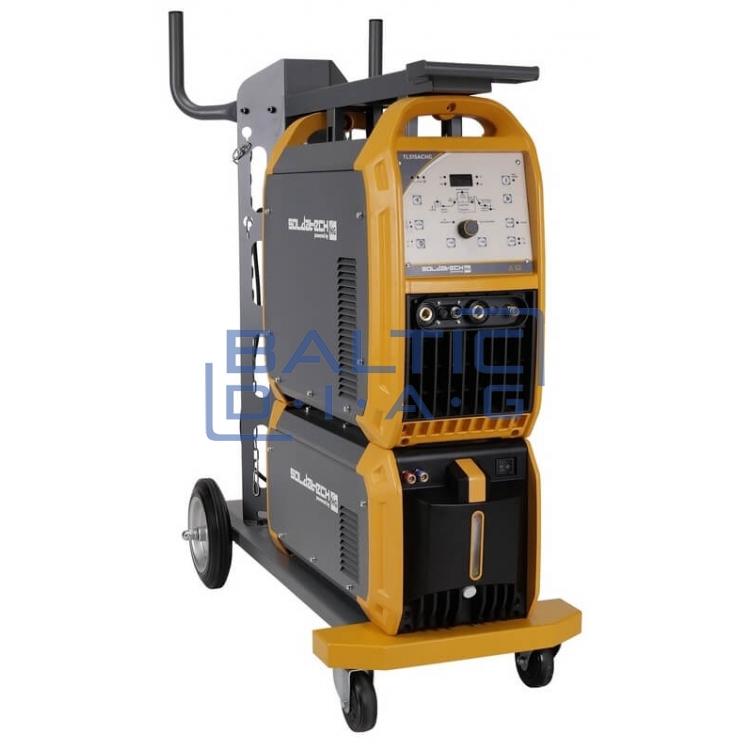

The Soldatech welding machine is equipped with a solid cart that easily transports the 50 l gas cylinder. The machine processes a wide range of materials with a variety of welding processes, including AC/DC pulse, TIG and MMA welding. Advanced IGBT inverter technology ensures TL315ACHG operation with higher power and long duty cycle. In addition, the TL315ACHG comes standard with a powerful water cooler that prevents overheating. Together with the built-in fan, it ensures high-quality welding performance for a long time. The digital continuously adjustable display shows the welding processes and possibilities very clearly. Thanks to HF ignition, the device always starts smoothly. The included TLT18M4 torch is water cooled for long life when welding at high amperage. The hot start/anti-stick function quickly increases the welding current to prevent the electrode from sticking to the workpiece during ARC welding. Ideal for welding aluminium, stainless steel, carbon steel, low alloy steel, copper and special aluminum alloys.

Standard equipment:

• Soldatech TLT18M4 water cooled TIG torch with 4m cable
• Welding ground terminal with 3m 25mm² cable
• European Dinse connectors 13mm
• Gas line with quick connector 4 m (8 mm inner diameter)
• 5-pin 32A plug with 2 m 4x2.5 mm² cable
• Wearing parts = 3 x bushing (1.6 / 2.0 / 2.4 mm), 1 x 3.2 mm chuck, 3 x gas nozzle (6, 7, 8 mm), 1 x sealing ring, 1 short seal cap and 1 long sealing cap

Technical specifications:

• Voltage = 400V - 3 phases
• Frequency = 50 / 60 Hz
• Circuit breaker = 25 A B-char
• Input power = 13.8 kVA
• No load voltage = 70 V
• Duty cycle (at 20°C ambient temperature) = 60% - 315 A
• Duty cycle (at 40°C ambient temperature) = 35% - 315 A
• Welding current range DC TIG = 10A - 315 A
• Welding current range AC TIG = 20A - 315 A
• Welding current range MMA = 20A - 250 A
• Cooling unit volume = 6 L
• Protection class = IP21S
• Dimensions = 1110 mm x 520 mm x 1265 mm
• Weight = 94 kg
