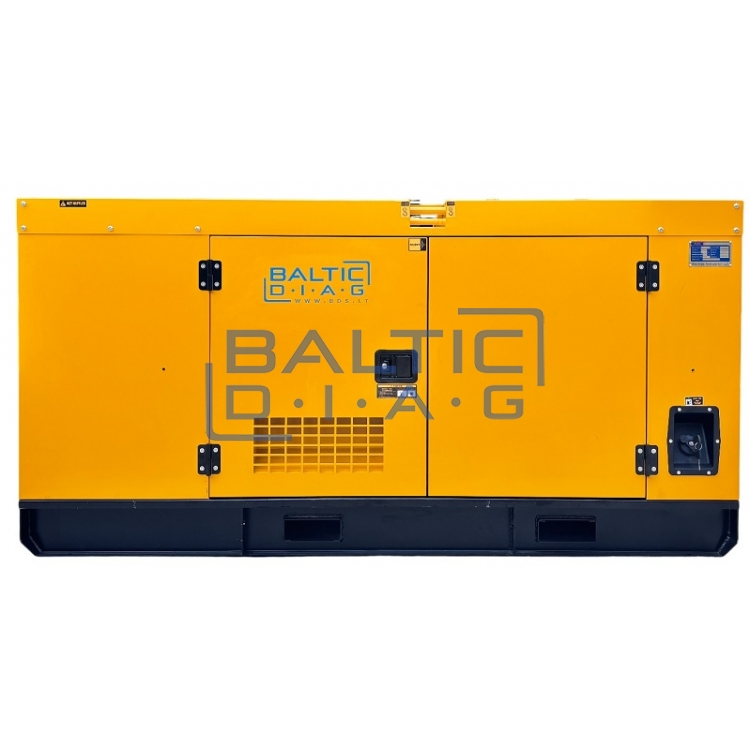

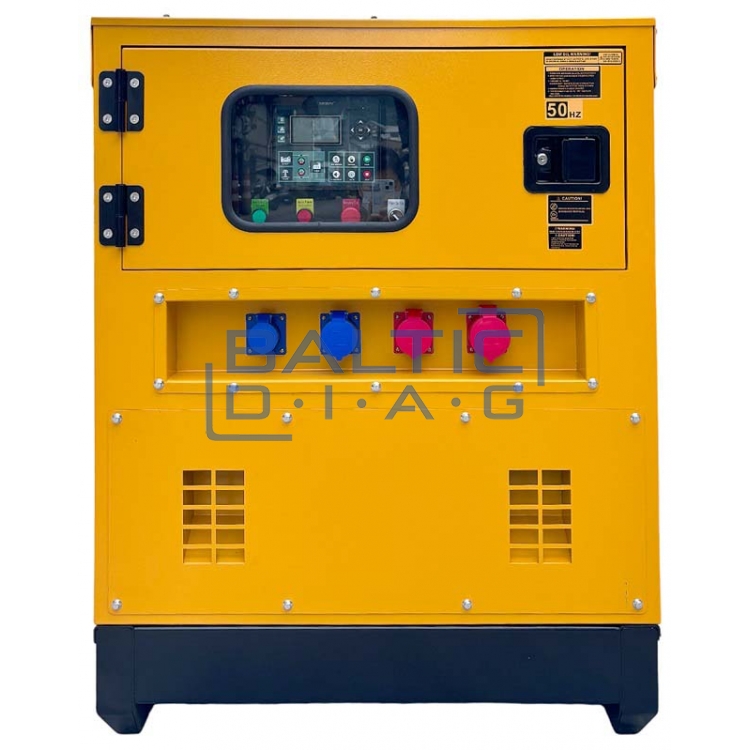

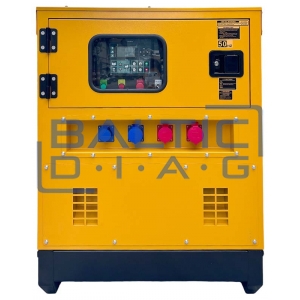

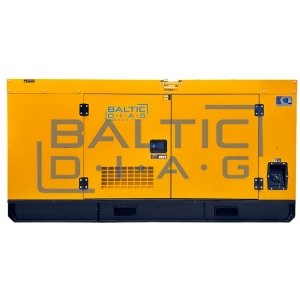

Stationary diesel generator BD-40, 40 kW

Stationary diesel generator BD-40, 40 kW

Diesel generators with a power of 20 to 40 kW are reliable and efficient energy sources suitable for industrial, commercial and emergency use. These generators ensure a stable energy supply and are adapted to various conditions and work purposes, therefore they are ideal for construction sites, office complexes, factories or outdoor events. Powerful diesel engines ensure durability and high performance, and economical fuel consumption allows you to work for a long time without interruption. A convenient control panel allows you to easily monitor and adjust the generator's operation and operations, and a robust design guarantees protection from environmental influences. These diesel generators are a reliable energy source that provides a long-term solution for unforeseen cases as well as for continuous use, whenever an independent energy source is needed.

Features:

• Integrated oil, fuel, air and coolant heaters
• Integrated internal ATS (automatic reserve switching)
• European electrical plugs installed
• Lockable generator design
• Self-excited electric generator

Technical parameters:

• Stand-by power: 44 kW / 55 kVA
• Nominal power (Prime power): 40 kW / 50 kVA
• Generator generated electric current: 76 A
• Engine manufacturer: Yang Dong
• Engine model: Y4102ZLD
• Number of cylinders: 4 cylinders
• Fuel injection system: direct
• Fuel compression ratio: 18 : 1
• Piston diameter and stroke: 102 x 118 mm
• Internal combustion engine displacement: 3875 cm3
• Air intake system: naturally aspirated engine
• Cylinder firing order: 1 – 3 – 4 – 2
• Revolution speed: 1500 rpm
• Engine speed control system: mechanical
• Engine cooling system: liquid cooling
• Cooling system capacity: 10 l
• Engine oil capacity: 11 l
• Power developed by the internal combustion engine: 48 kW / 60 kVA
• Fuel type: diesel
• Fuel consumption at 100% load: 9.0 l/h
• Fuel consumption at 75% load: 6.75 l/h
• Fuel consumption at 50% load: 4.5 l/h
• Starting system: electric starter
• Battery: 2 x 60 A / 24 V
• Fuel tank capacity: 90 l
• Operating temperature: from -30°C to +40°C
• Fuel, oil and coolant heating system: 230 V / 50 Hz / 1 fz
• Air heating system: 12 / 24 V/DC
• Dimensions: 2400 x 950 x 1200 mm
• Weight: 1032 kg

Generator:

• Generated frequency: 50 Hz
• Generated instantaneous power: 44 kW
• Generated continuous power: 40 kW
• Generated electrical voltage: 400 V
• Automatic voltage regulation: AVR SX460
• Voltage regulation error: ± 0.5%
• Type: brushless
• Power factor: 0.8
• Number of phases: 3 fz
• Protection class: IP22
• Insulation class: H
