SMART IND dry ice cleaning machine

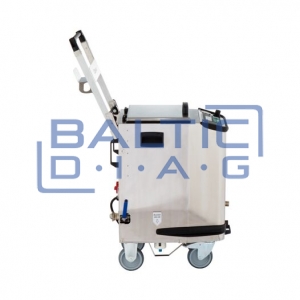

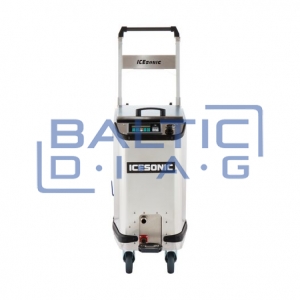

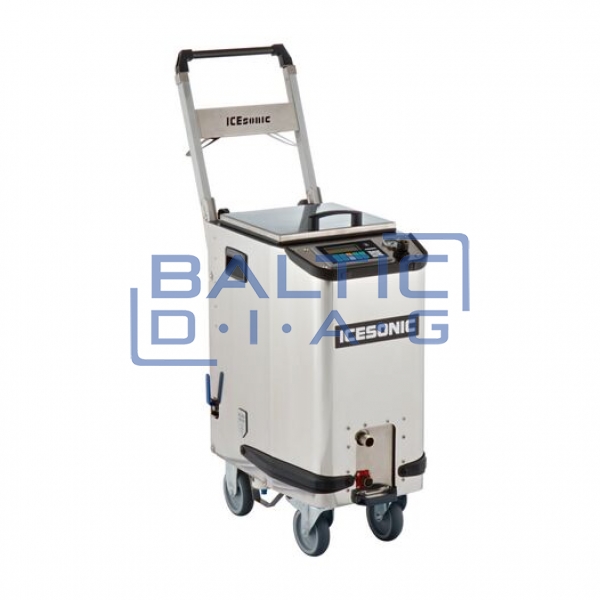

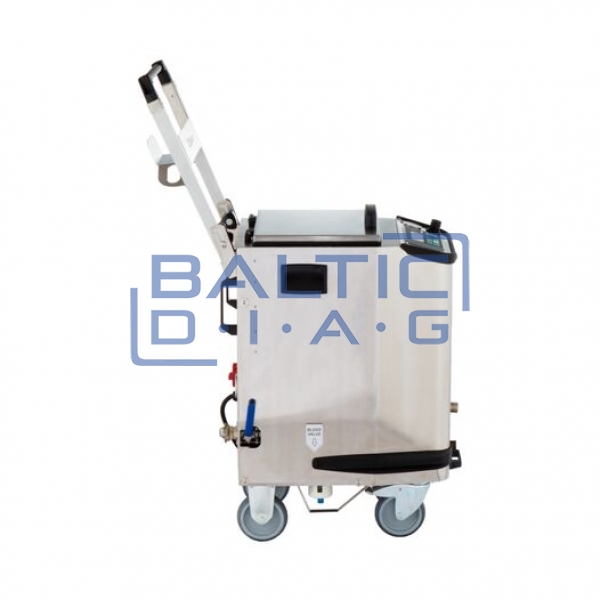

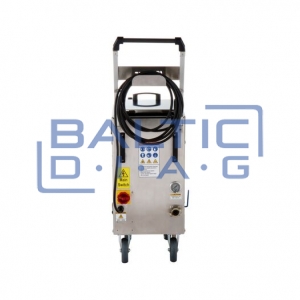

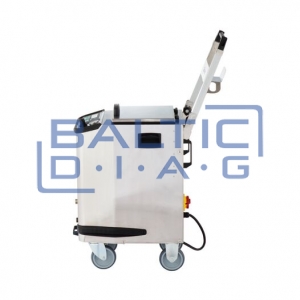

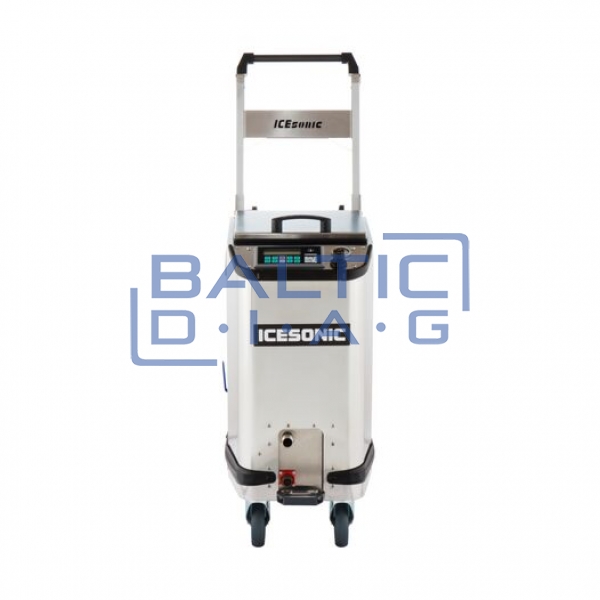

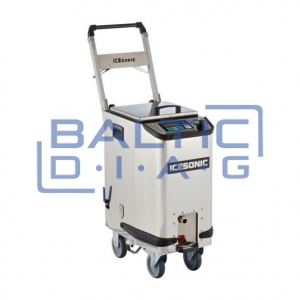

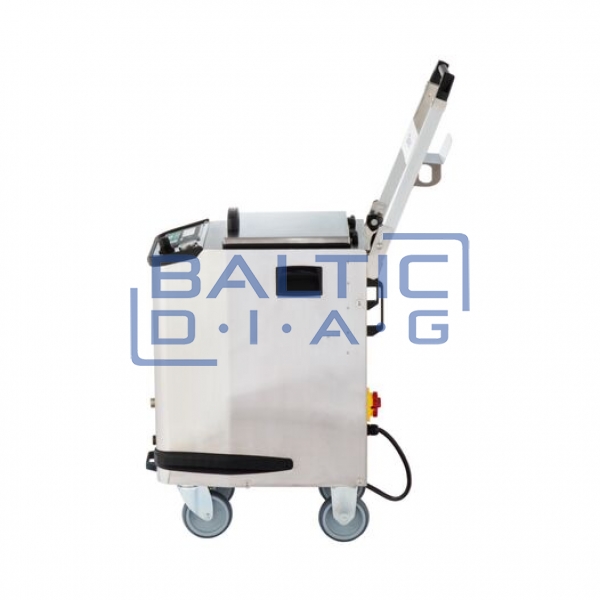

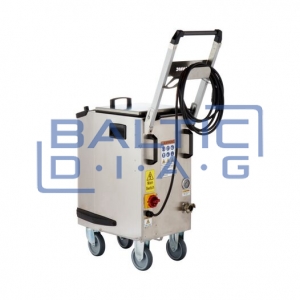

SMART IND Dry Ice Cleaning Machine

Country of Origin: Croatia, warranty period – 24 months

The SMART IND is a powerful, industrial-grade single-hose dry ice cleaning machine, designed to handle even the most demanding cleaning tasks. Compared to other models in the ICEsonic SMART line, the SMART IND features increased airflow and dry ice feed rate, ensuring highly efficient and fast surface cleaning.

This machine is built with a stainless steel body and features an anodized aluminum control panel, providing exceptional durability even in the harshest working conditions. The integrated Siemens PLC control system allows for easy and precise adjustment of dry ice feed and pressure, ensuring maximum cleaning efficiency.

The SMART IND is ideal for coating removal, equipment cleaning, and surface preparation, delivering outstanding results every time.

Features:

• Increased airflow and dry ice feed rate – enhances efficiency and speeds up the cleaning process.
• Robust stainless steel body – resistant to challenging industrial conditions.
• Siemens PLC control system – precise regulation of pressure and dry ice feed.
• Automation-ready – can be integrated into automated production lines.
• Large hopper capacity – 15 kg capacity ensures longer, uninterrupted operation.
• Ergonomic design – easy to handle and transport.

Technical Specifications:

• Type: Single-hose dry ice cleaning machine
• Touch screen: No
• Automation ready: Optional
• Air inlet: 3/4" universal claw coupling
• Housing/frame: Stainless steel
• Blasting pressure regulator: Included
• Compressed air filter: Included
• Compressed air pressure: Up to 1200 kPa (12 bar) (175 psi)
• Optimal compressed airflow: 3.5 m³/min (124 cfm) or more
• Mid-range compressed airflow: 2.5-3.5 m³/min (88-124 cfm)
• Low-end compressed airflow: 2.0-2.5 m³/min (71-88 cfm)
• Feed rate: Up to 90 kg/h (198 lbs/h)
• Hopper capacity: 15 kg (33 lbs)
• Wheel size: 125 mm (5")
• Power supply: 110/220/240V AC (50/60 Hz)
• Max power consumption: 0.76 kW
• Weight: 67 kg (148 lbs)
• Dimensions: 370 x 650 x 1150 mm (15 x 26 x 45")
• Shipping weight: 85 kg (187 lbs)
• Shipping dimensions: 400 x 800 x 1020 mm (16 x 31 x 40")

Additional Accessory: SMART Dry Ice Plus Abrasive Module – €2,790 (incl. VAT)

The SMART Dry Ice Plus is an optional abrasive module designed for use with the ICEsonic SMART IND dry ice cleaning machine. This module allows abrasive materials, such as glass beads, to be mixed into the dry ice stream, enabling the efficient removal of paint, graffiti, rust, epoxy coatings, and other contaminants.

Features:

• Abrasive particle mixing technology – ensures effective contaminant removal without damaging the surface.
• Self-standing module – abrasive material is stored separately from the dry ice until the moment of delivery.
• Minimal dust and abrasive consumption – optimal results achieved by adding 15-20% abrasive to the dry ice stream.
• SA 2½ specification – surface cleaning meets the clean, satin-finish standard.
• Ideal for Non-Destructive Testing (NDT) – does not cause surface pitting or damage, unlike traditional sandblasting or grinding methods.

Applications:

• Removal of industrial coatings and paints
• Rust removal from metal surfaces
• Graffiti cleaning from buildings or vehicles
• Epoxy coating removal
• Precision cleaning tasks requiring a gentle yet effective approach

The SMART Dry Ice Plus is the perfect addition to the ICEsonic SMART IND machine when more aggressive cleaning is required, but surface damage and excessive abrasive use need to be avoided.

Additional Accessory: AT 160 Air Preparation System – €5,299 (incl. VAT)

The AT 160 is a portable air preparation system designed to ensure clean, dry, and cool air for use with the ICEsonic SMART IND dry ice cleaning machine. This system removes moisture, oil residues, and solid particles from the compressed air supply, which can otherwise reduce cleaning efficiency and cause equipment malfunctions.

Features:

• Advanced air filtration – transforms hot, humid, and oily air into clean, dry, and cool air.
• Improved cleaning efficiency – minimizes surface contamination and optimizes dry ice particle impact.
• Maximum equipment protection – helps prevent clogging and reduces equipment wear.
• Fully integrated system – includes an After-Cooler, Water Separator, and Coalescing Filter.
• Portable and compact – easily transportable and suitable for use in various work environments.
• Cost-effective solution – reduces downtime, enhances cleaning performance, and lowers operational costs.

Applications:

• Dry ice cleaning systems – ensures optimal airflow for the cleaning machine.
• Industrial use – ideal for cleaning sensitive surfaces that require purified air.
• Automotive and manufacturing sectors – prevents surface contamination and improves cleaning results.

The AT 160 is the perfect complement to the ICEsonic SMART IND cleaning machine, ensuring maximum efficiency, reliability, and an extended equipment lifespan.
