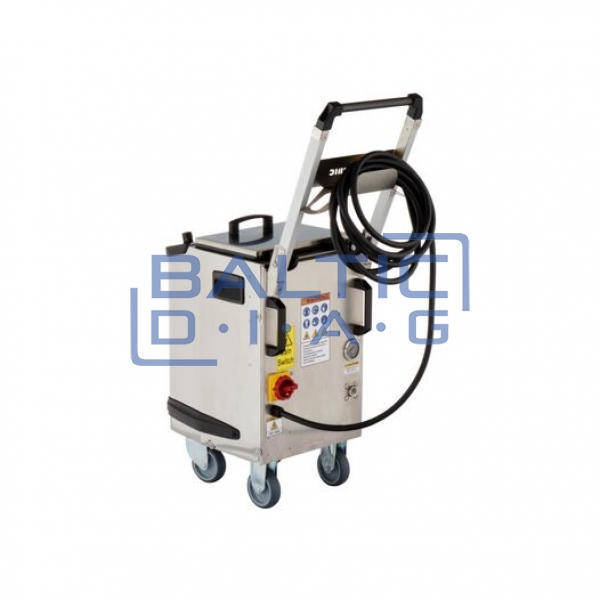

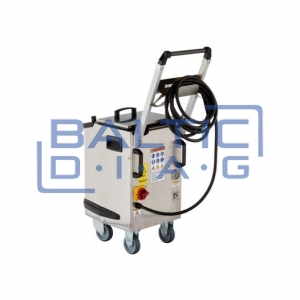

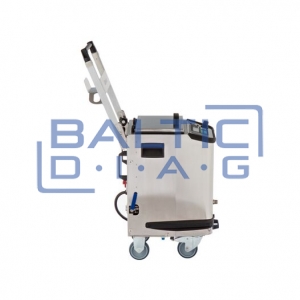

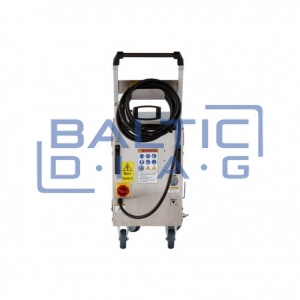

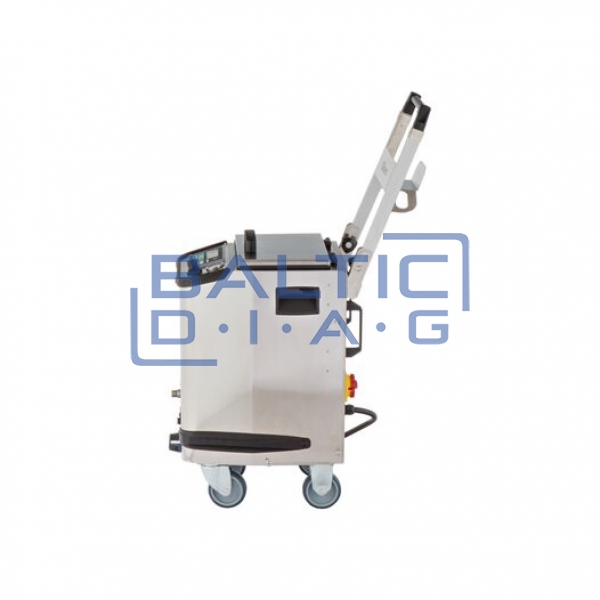

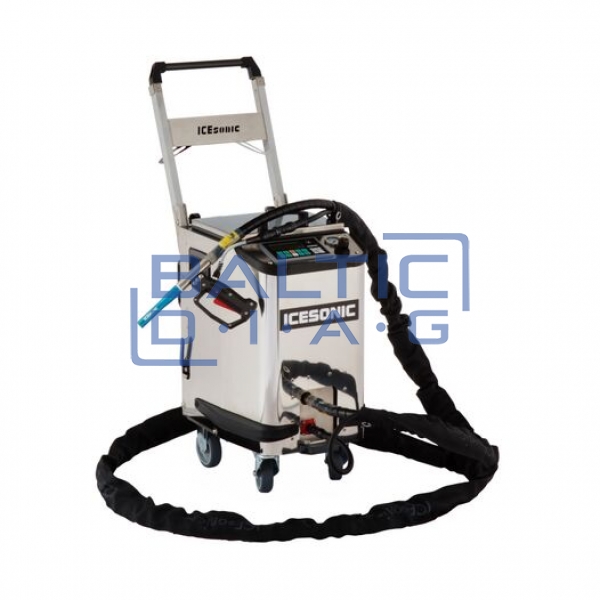

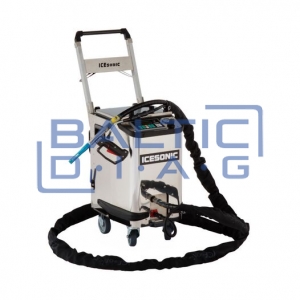

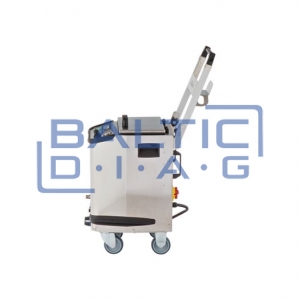

SMART HD dry ice cleaning machine

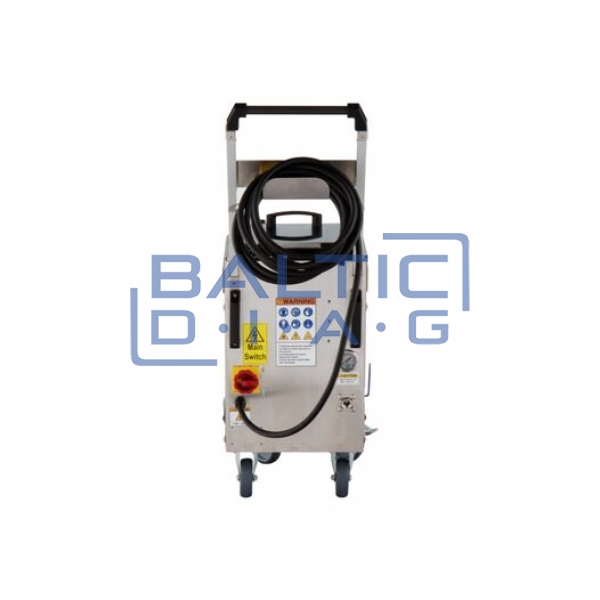

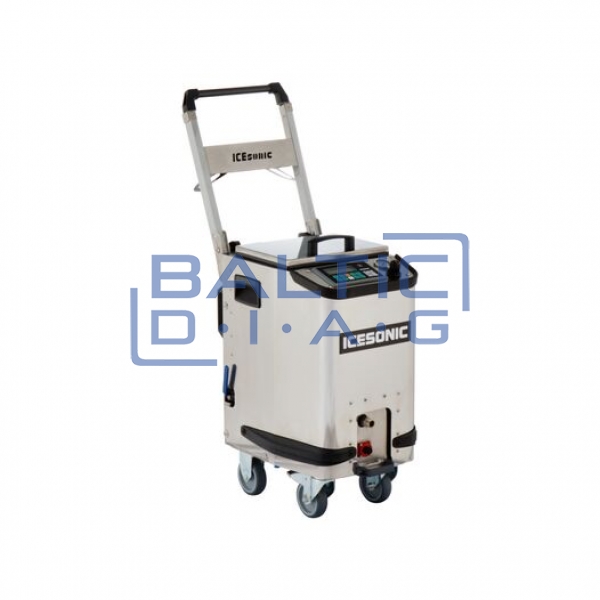

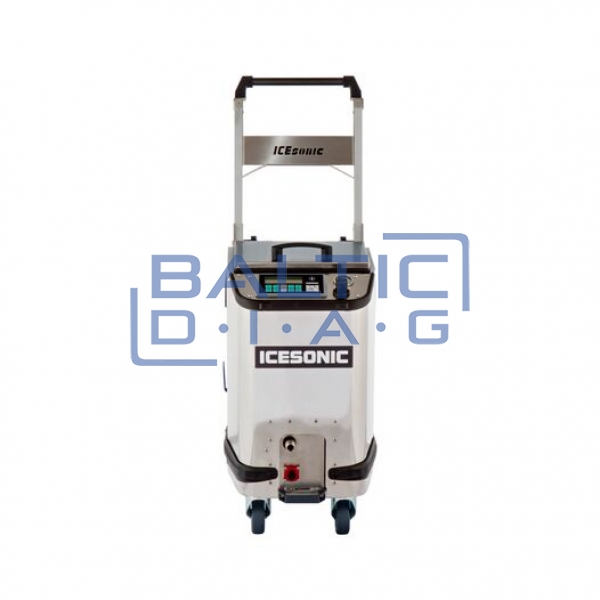

SMART HD Dry Ice Cleaning Machine

Country of Origin: Croatia, warranty period – 24 months

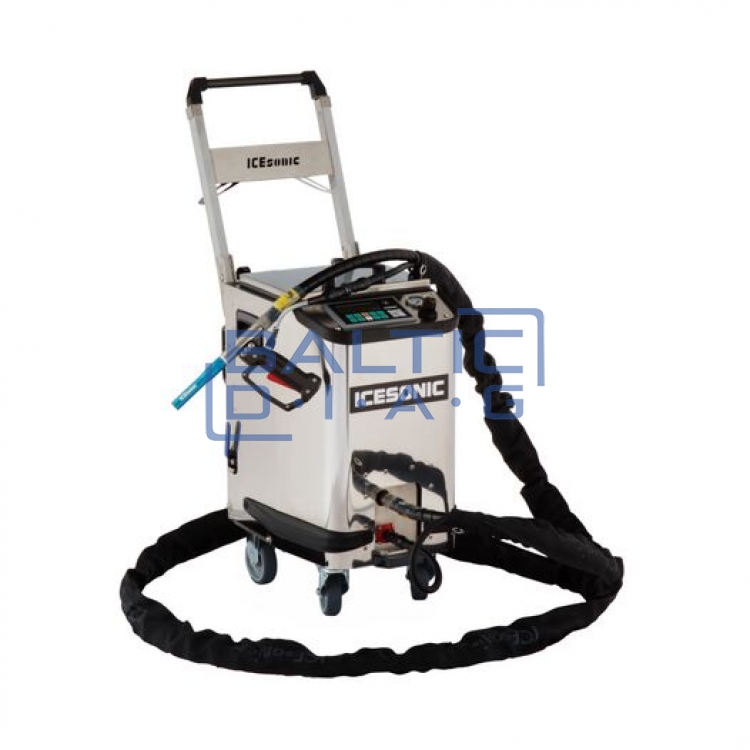

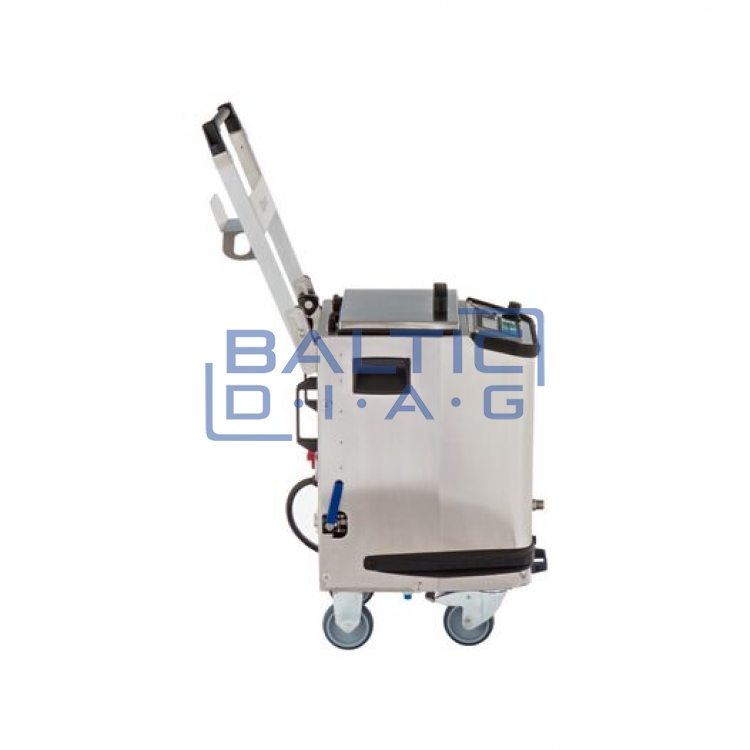

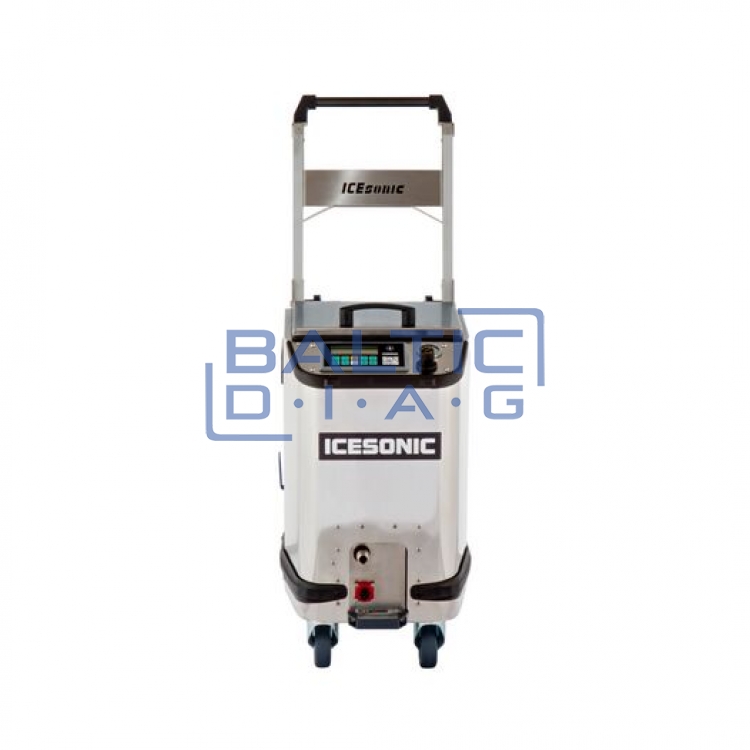

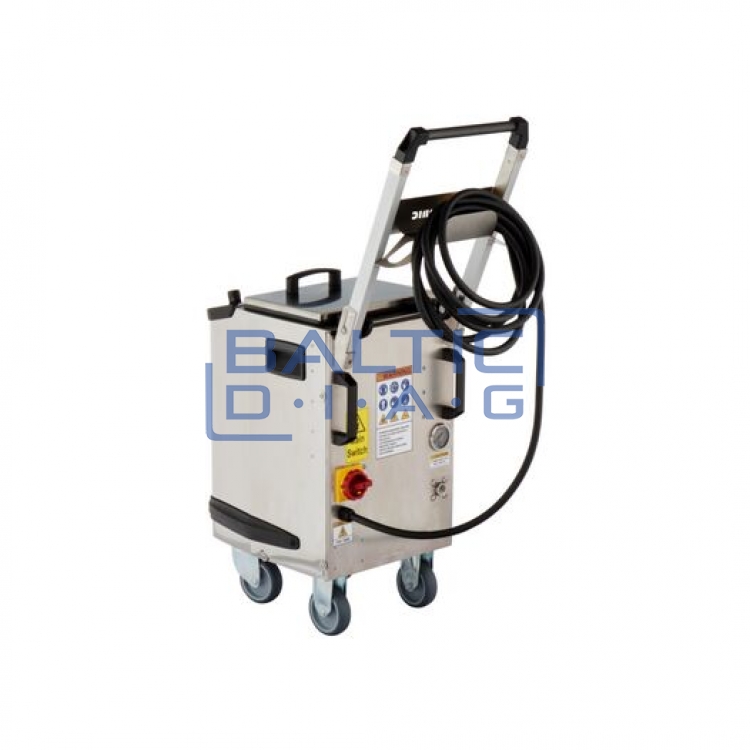

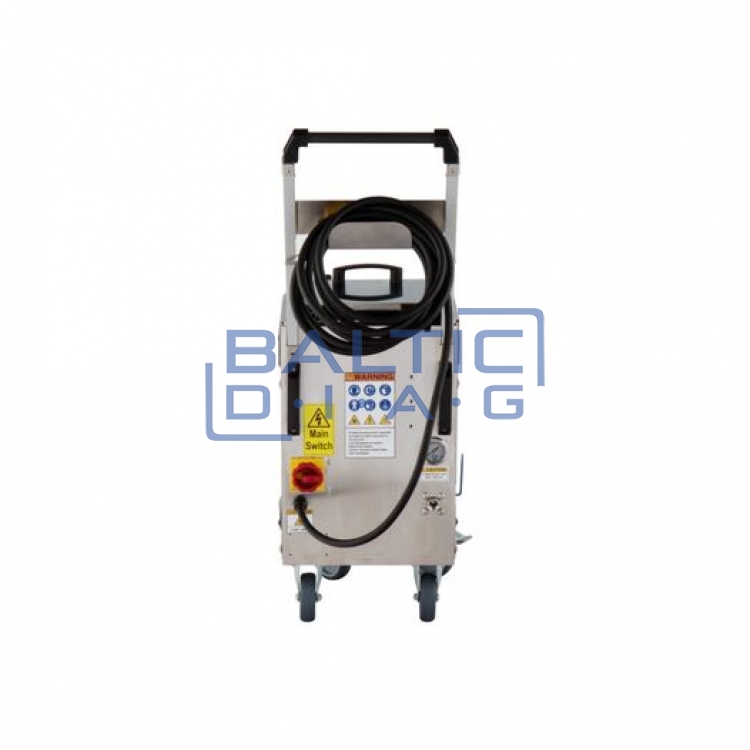

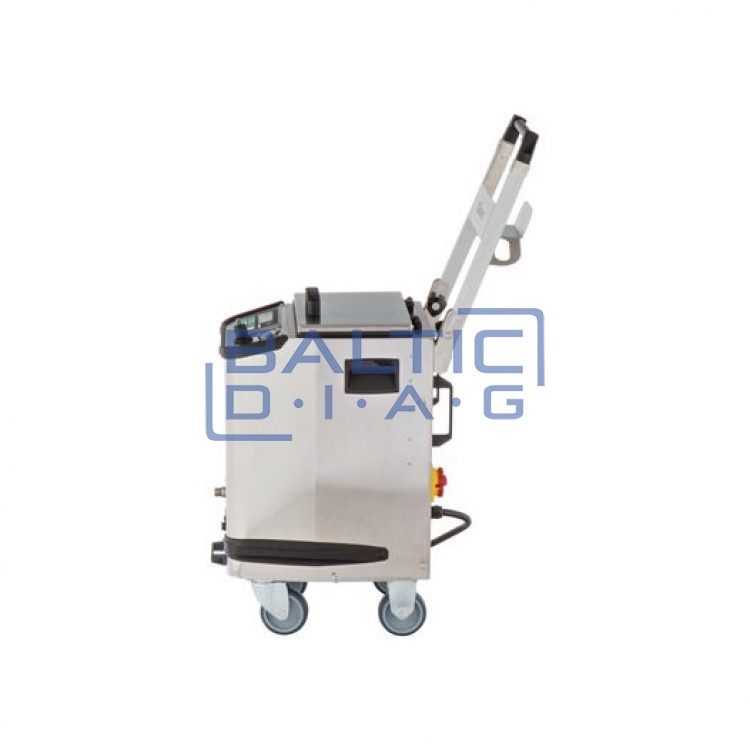

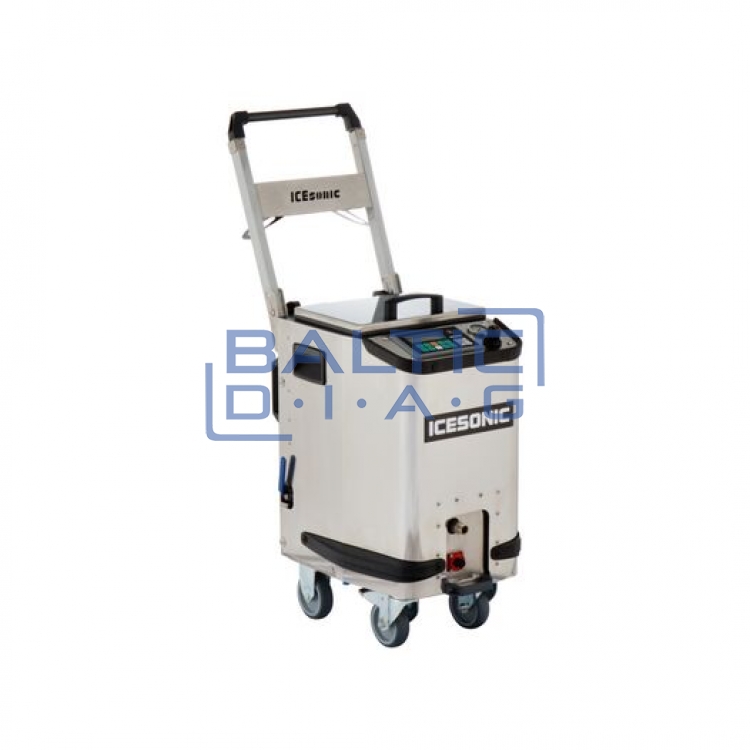

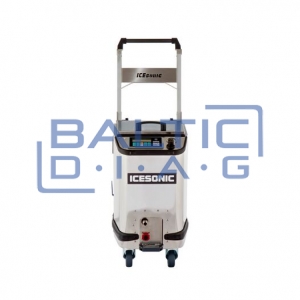

The ICEsonic SMART HD is a single-hose dry ice cleaning machine that offers greater efficiency and precision compared to dual-hose systems. With an integrated Siemens HMI control system, powerful 12-bar pressure, and an insulated 10 kg hopper, this machine is a versatile, reliable, and cost-effective solution for medium to heavy-duty industrial cleaning tasks.

Features:

• Single-hose technology – more efficient use of air and dry ice, ensuring a consistent flow and improved cleaning precision.
• Powerful pressure up to 12 bar (174 psi) – effectively removes even the toughest contaminants and adapts to various cleaning challenges.
• 10 kg insulated dry ice hopper – maintains optimal temperature and reduces dry ice evaporation.
• Advanced anti-clog system – ensures smooth and uninterrupted operation.
• Siemens HMI control system – allows easy adjustment of dry ice feed, air-only mode, and real-time usage monitoring.
• Integrated particle filter – guarantees clean air, protecting the equipment from contamination and reducing maintenance costs.
• High-precision construction – CNC-machined, laser-cut, and welded stainless steel frame ensures long-term durability.

Technical Specifications:

• Type: Single-hose dry ice cleaning machine
• Touch screen: No
• Automation ready: Optional
• Air inlet: 3/4" universal claw coupling
• Housing/frame: Stainless steel
• Blasting pressure regulator: Included
• Compressed air filter: Included
• Compressed air pressure: Up to 1200 kPa (12 bar) (174 psi)
• Optimal compressed airflow: 2.2 m³/min (78 cfm) or more
• Mid-range compressed airflow: 1.2-2.2 m³/min (42-78 cfm)
• Low-end compressed airflow: 0.5-1.2 m³/min (18-42 cfm)
• Feed rate: Up to 70 kg/h (154 lbs/h)
• Hopper capacity: 10 kg (22 lbs), insulated against temperature fluctuations
• Wheel size: 100 mm (4")
• Power supply: 110/220/240V AC (50/60 Hz)
• Max power consumption: 0.4 kW
• Weight: 50 kg (110 lbs)
• Dimensions: 370 x 500 x 1045 mm (15 x 20 x 41")
• Shipping weight: 60 kg (132 lbs)
• Shipping dimensions: 400 x 600 x 950 mm (16 x 24 x 37")

Additional Accessory: SMART Dry Ice Plus Abrasive Module – €2,790 (incl. VAT)

The SMART Dry Ice Plus is an optional abrasive module designed for use with the ICEsonic SMART HD dry ice cleaning machine. This module allows abrasive materials, such as glass beads, to be mixed into the dry ice stream, enabling the efficient removal of paint, graffiti, rust, epoxy coatings, and other contaminants.

Features:

• Abrasive particle mixing technology – ensures effective contaminant removal without damaging the surface.
• Self-standing module – abrasive material is stored separately from the dry ice until the moment of delivery.
• Minimal dust and abrasive consumption – optimal results achieved by adding 15-20% abrasive to the dry ice stream.
• SA 2½ specification – surface cleaning meets the clean, satin-finish standard.
• Ideal for Non-Destructive Testing (NDT) – does not cause surface pitting or damage, unlike traditional sandblasting or grinding methods.

Applications:

• Removal of industrial coatings and paints
• Rust removal from metal surfaces
• Graffiti cleaning from buildings or vehicles
• Epoxy coating removal
• Precision cleaning tasks requiring a gentle yet effective approach

The SMART Dry Ice Plus is the perfect addition to the ICEsonic SMART HD machine when more aggressive cleaning is required, but surface damage and excessive abrasive use need to be avoided.

Additional Accessory: AT 160 Air Preparation System – €5,299 (incl. VAT)

The AT 160 is a portable air preparation system designed to ensure clean, dry, and cool air for use with the ICEsonic SMART HD dry ice cleaning machine. This system removes moisture, oil residues, and solid particles from the compressed air supply, which can otherwise reduce cleaning efficiency and cause equipment malfunctions.

Features:

• Advanced air filtration – transforms hot, humid, and oily air into clean, dry, and cool air.
• Improved cleaning efficiency – minimizes surface contamination and optimizes dry ice particle impact.
• Maximum equipment protection – helps prevent clogging and reduces equipment wear.
• Fully integrated system – includes an After-Cooler, Water Separator, and Coalescing Filter.
• Portable and compact – easily transportable and suitable for use in various work environments.
• Cost-effective solution – reduces downtime, enhances cleaning performance, and lowers operational costs.

Applications:

• Dry ice cleaning systems – ensures optimal airflow for the cleaning machine.
• Industrial use – ideal for cleaning sensitive surfaces that require purified air.
• Automotive and manufacturing sectors – prevents surface contamination and improves cleaning results.

The AT 160 is the perfect complement to the ICEsonic SMART HD cleaning machine, ensuring maximum efficiency, reliability, and an extended equipment lifespan.
