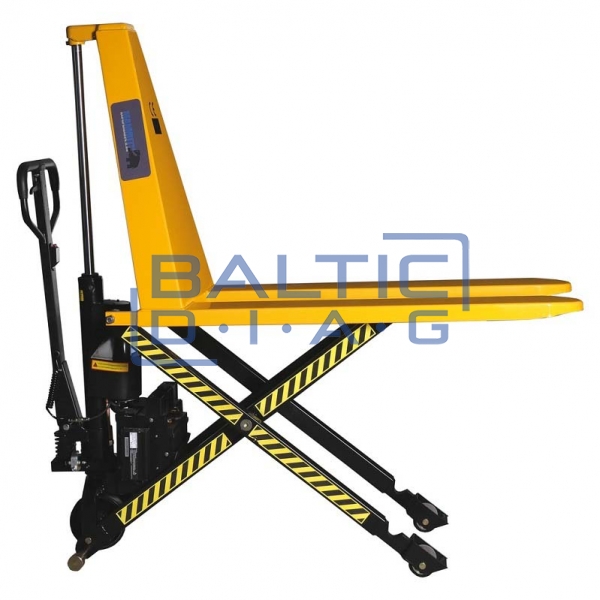

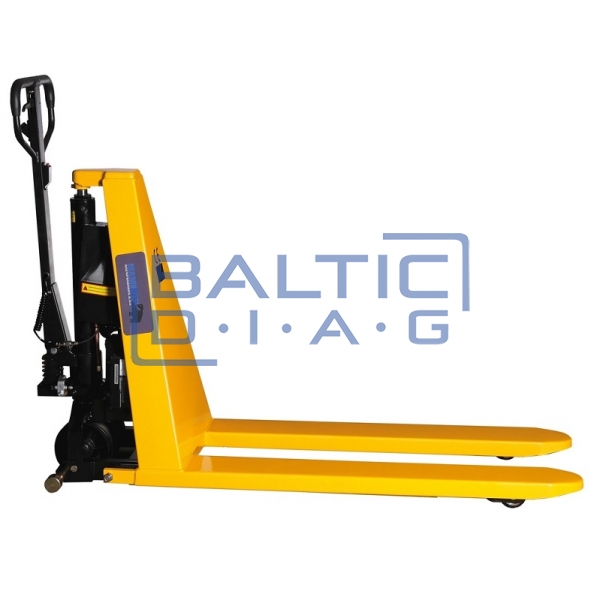

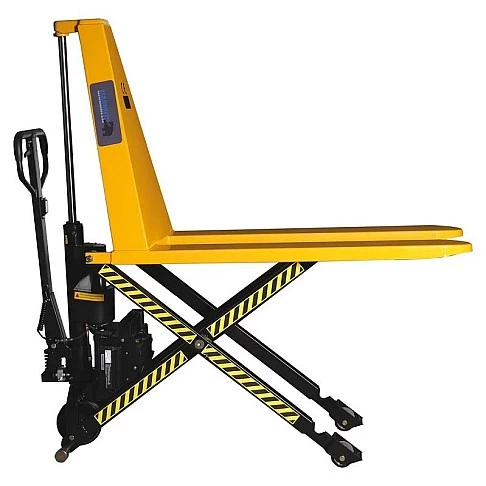

Semi-electric pallet stacker PS10SB Mammuth

Semi-electric pallet stacker PS10SB Mammuth

Functions:

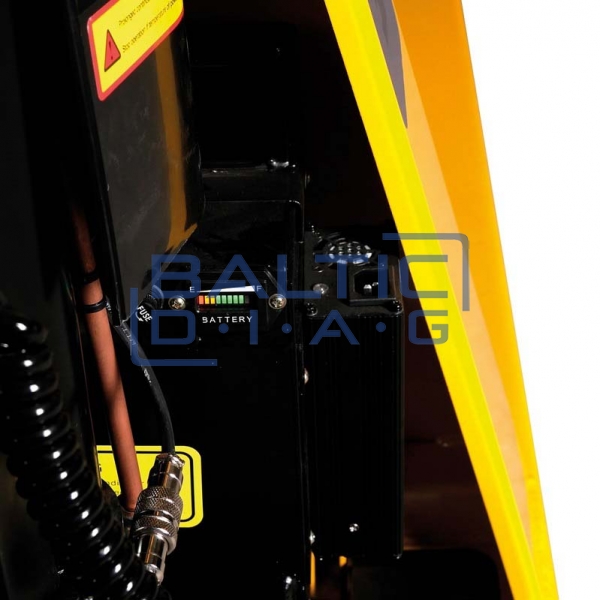

• Semi-electric lifting system with 12 V / 65 Ah battery
• Powerful 0.8 kW motor for efficient operation
• Automatic pressure and overload valve protects the pump from damage
• Polyurethane steering and fork wheels ensure quiet, stable movement

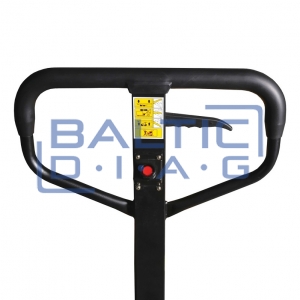

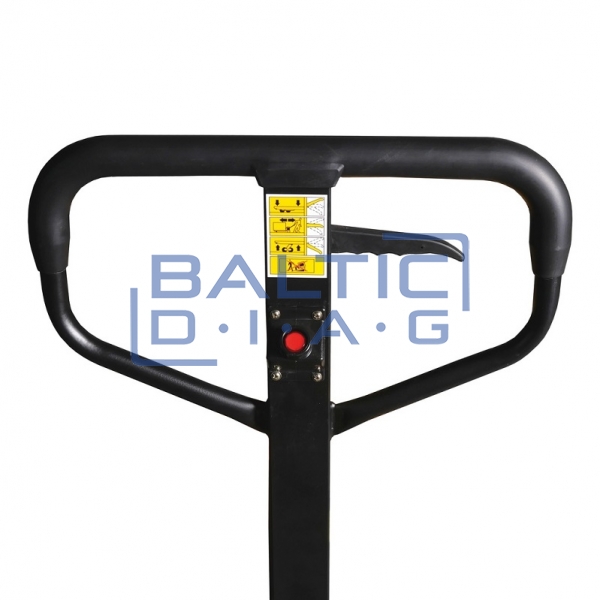

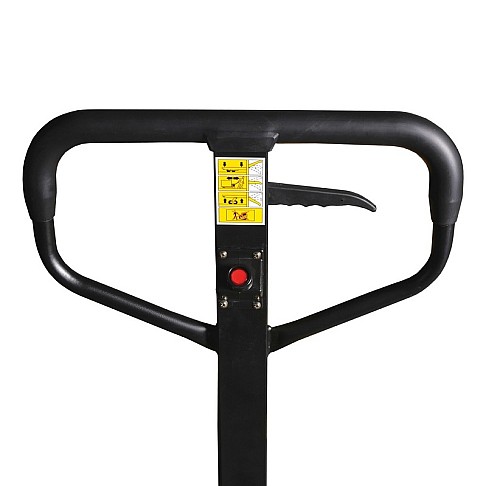

• Ergonomic controls for convenient use in narrow spaces
• Integrated battery charger for easy charging

Technical specifications:

• Lifting capacity: 1000 kg
• Lifting height: 85–820 mm
• Fork dimensions (length x width x height): 1150 x 160 x 55 mm
• Total fork width: 540 mm
• Overall height (lowered): 1215 mm
• Overall height (raised): 1640 mm
• Battery: 12 V / 65 Ah
• Motor power: 0.8 kW
• Steering wheel diameter: 180 x 50 mm
• Load wheel diameter: 80 x 70 mm
• Wheel material: polyurethane

Product dimensions:

• Length: 1,645 mm
• Width: 540 mm
• Height: 1,645 mm
• Weight: 144.0 kg

Package dimensions:

• Length: 1,700 mm
• Width: 540 mm
• Height: 940 mm
• Weight: 145.0 kg
