Screw Air Compressor with Frequency Control 90 kW Comprag

The screw air compressor with frequency control 90 kW Comprag is available in the following options:

• 5-8 bar, 14700 l/min
• 5-10 bar, 12800 l/min

Functions:

• The FV-Series oil-lubricated screw compressors produce industrial compressed air and can optionally be equipped with a refrigeration dryer, achieving air quality up to class 4-4-4 according to ISO 8573-1:2010.
• Frequency control – the compressor automatically adjusts motor speed according to actual air demand, maintaining constant pressure and reducing energy consumption.
• Energy saving – up to 25% lower electricity consumption compared to standard models.
• Heat recovery – up to 94% of electrical energy can be recovered as heat and used for heating or technological processes.
• No idle running – when there is no air demand, the compressor does not consume electricity.
• Constant system pressure – eliminates pulsations and pressure fluctuations, ensuring stable air supply.
• Soft start – the frequency inverter reduces starting current, extending the service life of the motor and electrical system.
• A modern, energy-efficient screw air-end ensures productive and long-lasting performance even under heavy loads.
• The professional t-Log microprocessor controller automatically manages operation and displays parameters such as pressure, air–oil mixture temperature, and operating time.
• A reliable electric motor with a high efficiency rating, bearings from leading manufacturers, energy reserve, and thermal protection against overheating.

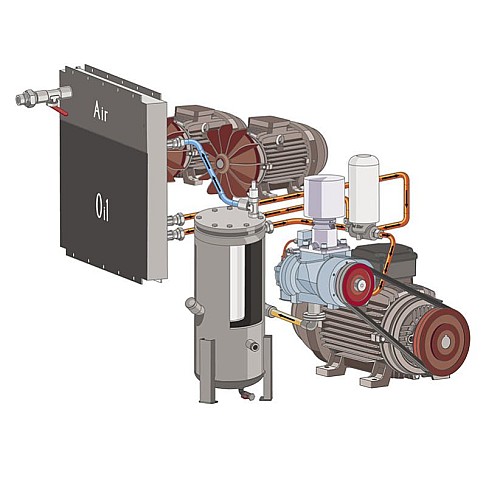

• An efficient three-stage oil separation system – oil is separated by centrifugal, gravitational, and filtration methods, ensuring that the residual oil content in compressed air does not exceed 3 mg/m³.
• Easy maintenance – all components, filters, and separators are easily accessible, ensuring fast and economical servicing.
• Quiet operation – noise level only 75 dB(A), making the unit suitable for production and technical rooms where work comfort is important.

Features of the FV-Series screw compressors:

• Professional controller
• Efficient and reliable electric motor
• Screw-type air-end
• Effective separation system

Technical specifications:

• Motor power: 90 kW
• Rated voltage: 3/380–420 V/50 Hz
• Noise level: 75 dB(A)
• Connection: 2"
• Length: 1960 mm
• Width: 1490 mm
• Height: 1790 mm
• Weight: 1690 kg
