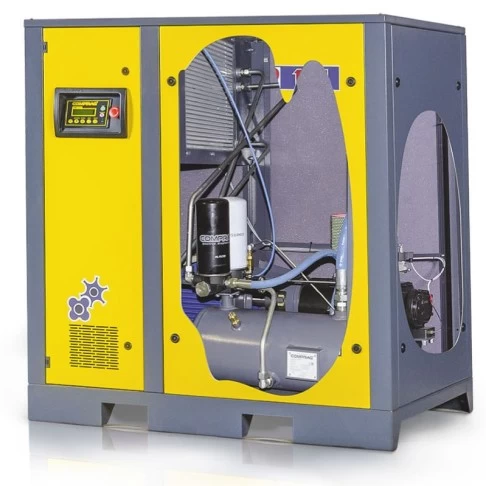

Screw air compressor with direct drive technology 45 kW Comprag

Screw Air Compressor with Direct Drive Technology 45 kW Comprag

Country of origin: Germany, warranty period – 24 months

The Comprag screw air compressor is a high-class industrial unit designed for continuous and efficient compressed air supply. Thanks to advanced direct drive technology, this model provides high performance, reduced energy losses, and an exceptionally long service life. The oil-lubricated screw mechanism ensures stable operation even under intensive conditions, making the compressor ideal for production, maintenance, metalworking, automotive repair, and other industrial sectors that require a reliable air source.

The screw air compressor with direct drive technology 45 kW Comprag is available in the following options:

• 8 bar, 7000 l/min
• 10 bar, 6200 l/min

Functions:

• The D-Series oil-filled screw compressors are designed for continuous and economical compressed air production.
• The D-Series oil-lubricated screw compressors produce industrial compressed air up to class 4-4-4 according to ISO 8573-1:2010.
• Direct drive technology ensures maximum power transmission efficiency by eliminating energy losses typical of belt or chain drive systems.
• A modern, energy-efficient screw air-end guarantees high performance and long-lasting operation under various load conditions.
• The i-Log microprocessor controller provides extended configuration and control options, including group control of multiple units via the MODBUS interface.
• An efficient three-stage oil separation system ensures that the residual oil content in the compressed air does not exceed 3 mg/m³, maintaining high air quality.
• A reliable electric motor with a high efficiency rating, energy reserve, bearings from leading manufacturers, and thermal protection against overheating.
• A robust, compact design and reduced noise level (73 dB(A)) ensure a comfortable and safe working environment.
• Easy maintenance – all filters and separators are easily accessible, and extended service intervals reduce operating costs.

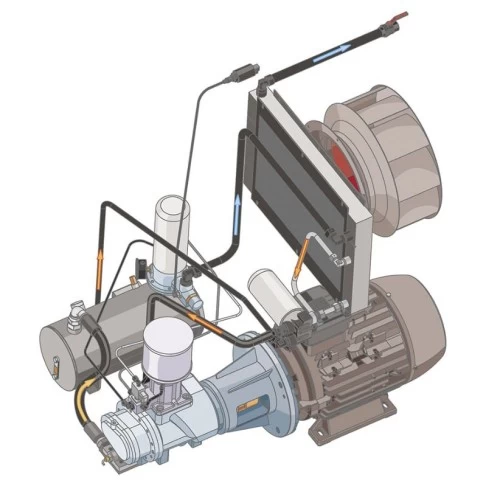

New compressor design:

• Professional controller
• Reliable electric motor
• Screw air-end
• Oil separation tank
• CompRag-manufactured control valves

Technical specifications:

• Motor power: 45 kW
• Rated voltage: 3/380–420 V/50 Hz
• Noise level: 73 dB(A)
• Threaded connection: 1-1/2"
• Length: 1650 mm
• Width: 1250 mm
• Height: 1500 mm
• Weight: 1010 kg

The screw air compressor with direct drive technology 45 kW Comprag is a reliable, efficient, and long-lasting solution for industrial companies that value high productivity, energy savings, and air quality. It is an excellent choice for those seeking maximum performance and minimal operating costs.
