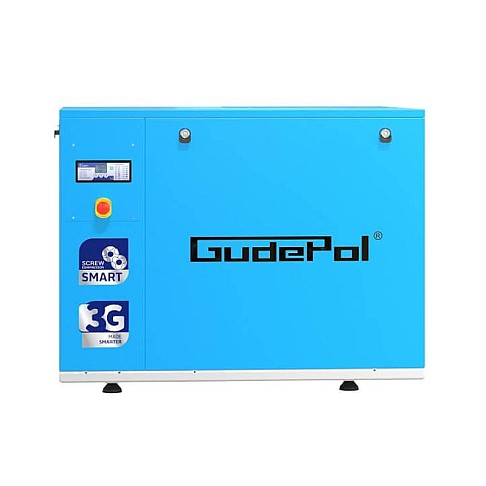

Screw air compressor 780 l/min, 13 bar, 7.5 kW GudePol SMART-3G

Screw air compressor 780 l/min, 13 bar, 7.5 kW GudePol SMART-3G

Functions:

• Modern frameless housing – reduces vibration and improves airflow
• Enhanced cooling system – greater efficiency and reliable operation even in hot conditions
• Microprocessor control panel – displays temperature, error codes, operating time, and upcoming maintenance intervals
• Automatic protection system – protects against voltage drops, phase loss, motor overload, and incorrect rotation direction
• Pressure adjustment via control panel – allows setting of minimum and maximum pressure with 0.1 bar precision
• Efficient oil and air filtration – residual oil content in compressed air less than 4 ppm
• Quiet operation – design and sound insulation ensure only 70 dB noise level
• Efficient cooler – dual-function system ensures low outlet air temperature and optimal operating conditions
• Reliable belt drive – ensures stable motor and pump operation
• Energy efficiency – reduced power consumption and high screw module performance ratio
• Option to integrate dryer and filters – ensures clean air supply even in demanding environments
• Certified quality – each unit is thoroughly tested during the manufacturing process

Technical specifications:

• Version: 3G
• Capacity: 47 m³/h
• Capacity: 780 l/min
• Motor power: 7.5 kW
• Noise level: 70 dB
• Maximum pressure: 13 bar
• Tank capacity: none
• Air preparation station: none
• Power supply voltage: 400 V / 50 Hz
• Air connection: 1/2''
• Dimensions (width x depth x height): 1100 x 790 x 880 mm
• Weight: 150 kg
