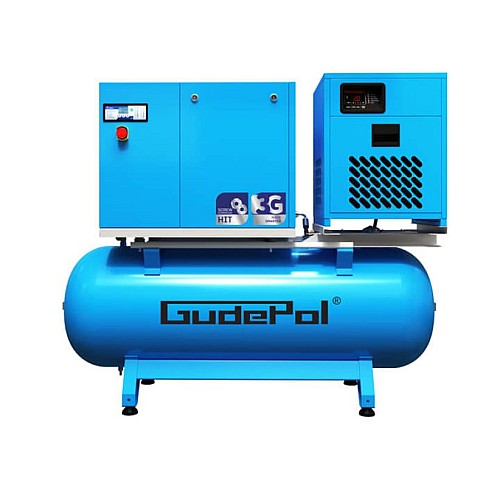

Screw air compressor 500 l, 750 l/min, 10 bar GudePol HIT-3G

Screw air compressor 500 l, 750 l/min, 10 bar GudePol HIT-3G

Functions:

• Galvanized air tank – corrosion-resistant and ensures long-term durability
• Integrated air treatment station (VT version) – provides dry and clean compressed air
• Microprocessor control panel – displays detailed information about operating mode, faults, temperature, and maintenance intervals
• Automatic protection system – protects against voltage drops, phase loss, motor overload, and incorrect rotation direction
• Precise pressure control – allows adjustment of minimum and maximum pressure directly from the control panel (accuracy up to 0.1 bar)
• Efficient screw module – high performance-to-power ratio ensuring energy savings
• Efficient oil and air filtration – residual oil content in compressed air less than 4 ppm
• Reliable belt drive – ensures stable operation of the motor and compressor
• Advanced cooling system – maintains optimal temperature even under intensive operation
• Quiet operation – sound insulation design ensures only 68 dB noise level
• Compact design – easy to integrate into various work environments
• Energy saving – significantly reduces electricity consumption and operating costs
• Proven quality – each unit is tested during the manufacturing process

Technical specifications:

• Version: 3G
• Capacity: 45 m³/h
• Capacity: 750 l/min
• Motor power: 5.5 kW (7 HP)
• Noise level: 68 dB
• Tank capacity: 500 l
• Maximum pressure: 10 bar
• Air treatment station: integrated (VT version)
• Power supply voltage: 400 V
• Air connection: 1/2''
• Dimensions (width x depth x height): 2000 x 670 x 1360 mm
• Weight: 254 kg
