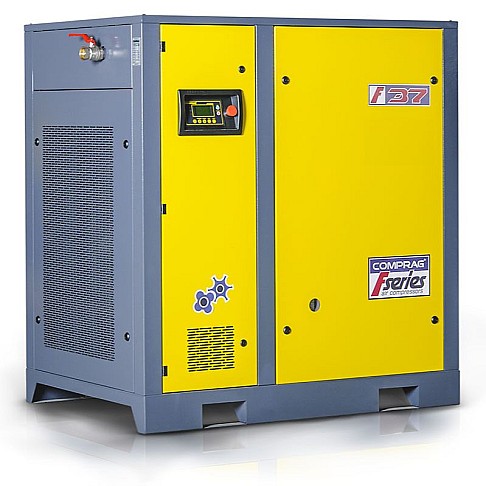

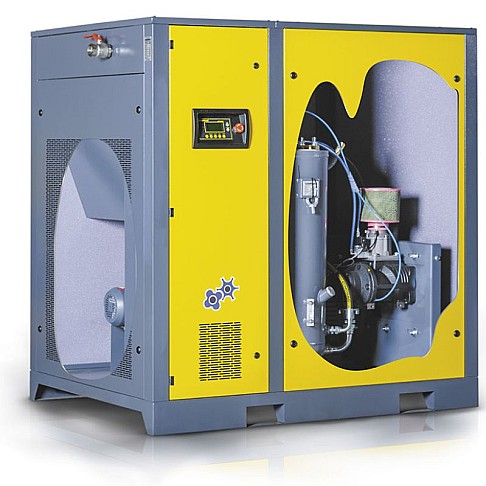

Screw air compressor 30 kW Comprag

Screw Air Compressor 30 kW Comprag

The Comprag 30 kW screw compressor is available in the following options:

• 8 bar, 5000 l/min
• 10 bar, 4500 l/min
• 13 bar, 3700 l/min

Functions:

• The F-Series oil-injected screw compressors produce industrial compressed air and can optionally be equipped with a refrigeration-type air dryer, achieving air purity up to class 4-4-4 according to ISO 8573-1:2010.
• A modern, energy-efficient screw air-end ensures high performance and long-term reliability even under intensive operating conditions.
• The i-Log microprocessor controller with advanced control functions, RS485 interface, and master-slave mode ensures optimal compressor operation and access to operating data.
• Minimal pressure losses in all main components result in reduced overall energy consumption.
• An efficient three-stage oil separation system uses centrifugal, gravitational, and filtration forces, ensuring that the residual oil content in the compressed air does not exceed 3 mg/m³.
• A reliable electric motor with a high efficiency rating, bearings from leading manufacturers, energy reserve, and thermal overload protection.
• Easy maintenance – all filters and separators are easily accessible, ensuring fast and cost-effective servicing.
• Quiet operation – noise level only 72 dB(A), making the compressor suitable for workspaces where comfort and low noise are important.

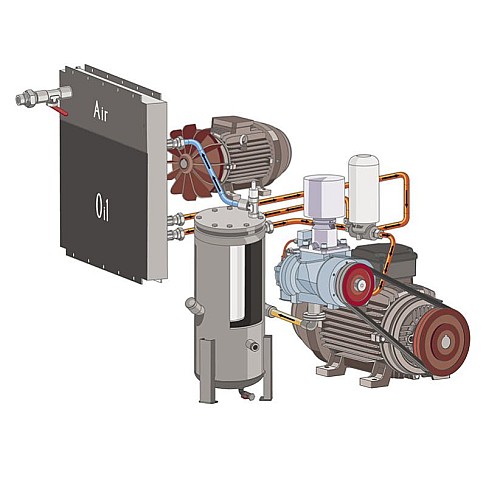

Features of the F-Series screw compressors:

• Professional controller.
• Efficient and reliable electric motor.
• Screw-type air-end.
• Effective separation system.

Technical specifications:

• Motor power: 30 kW
• Rated voltage: 3/380–420 V/50 Hz
• Noise level: 72 dB(A)
• Connection: 1-1/4"
• Length: 1400 mm
• Width: 1000 mm
• Height: 1500 mm
• Weight: 705 kg
