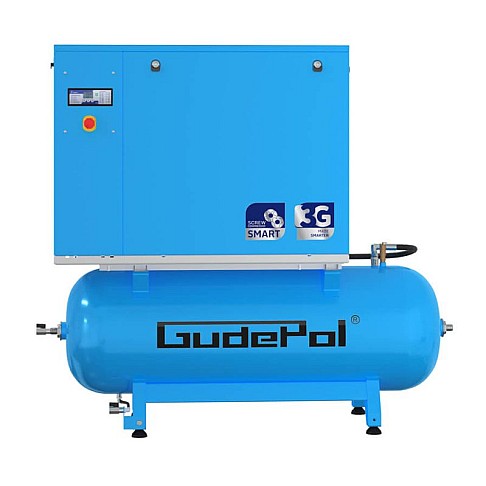

Screw air compressor 270 l, 900 l/min, 10 bar GudePol SMART-3G

Screw air compressor 270 l, 900 l/min, 10 bar GudePol SMART-3G

Functions:

• Galvanized air tank – ensures corrosion resistance and durability
• Modern frameless housing – reduces vibration and improves air circulation
• Enhanced cooling system – increased efficiency even under demanding conditions
• Microprocessor control panel – displays operating mode, temperature, error codes, and maintenance intervals
• Automatic protection system – protects against voltage drops, phase loss, motor overload, and incorrect rotation direction
• Precise pressure control – pressure adjustable via the control panel with 0.1 bar accuracy
• Efficient screw module – high performance-to-power ratio
• Efficient oil and air filtration – residual oil content in compressed air less than 4 ppm
• Reliable belt drive – ensures stable operation of the electric motor and pump
• Dual-function cooler – maintains optimal working temperature and low air outlet temperature
• Quiet operation – sound insulation and design solutions ensure only 70 dB noise level
• Option to integrate dryer and filters – for clean air supply even under demanding conditions
• Energy efficiency – reduced electricity consumption and lower operating costs
• Proven quality – each unit is carefully tested during the production process

Technical specifications:

• Version: 3G
• Capacity: 54 m³/h
• Capacity: 900 l/min
• Motor power: 7.5 kW
• Noise level: 70 dB
• Tank capacity: 270 l
• Maximum pressure: 10 bar
• Air preparation station: none
• Power supply voltage: 400 V / 50 Hz
• Air connection: 1/2''
• Dimensions (width x depth x height): 1600 x 790 x 1490 mm
• Weight: 245 kg
