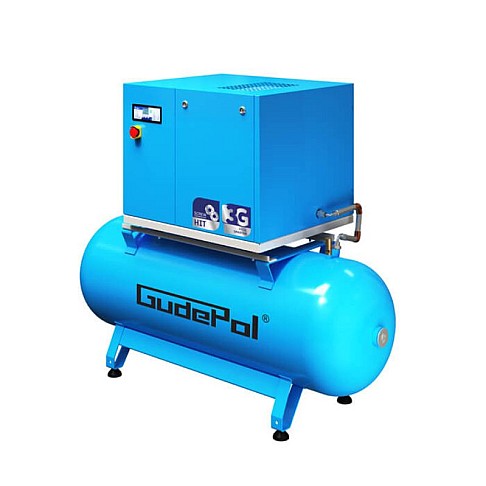

Screw air compressor 270 l, 470 l/min, 10 bar GudePol

Screw air compressor 270 l, 470 l/min, 10 bar GudePol

Functions:

• Microprocessor control panel L26S – a clear LCD display provides information about operating modes, temperature, working hours, and maintenance intervals
• Automatic fault diagnostics – notifies about malfunctions, displays error codes, and includes a memory function
• Adjustable pressure – a pressure sensor allows setting minimum and maximum pressure with an accuracy of 0.1 bar
• Protection system – safeguards against voltage drops, phase loss, incorrect rotation direction, motor overload, and oil temperature fluctuations
• Oil and air filtration system – ensures a very low oil content in compressed air (<4 ppm)
• Belt drive – reliable and quiet operation ensuring stable power transmission
• Galvanized air tank – full corrosion protection both inside and outside in accordance with PN-EN ISO-1461 standard
• High-efficiency screw module – optimal power-to-performance ratio with reduced energy consumption
• LTE/5G Cloud system – enables remote control and monitoring of compressor operation 24/7 via computer, tablet, or smartphone
• Integrated clock – allows setting up to 3 work schedules per day
• RS485 connection and GSM module support – enables compressor monitoring via computer or SMS notifications
• Quiet operation – only 67 dB noise level
• Proven reliability – each unit is factory-tested according to strict quality standards

Technical specifications:

• Air delivery: 470 l/min (28 m³/h)
• Maximum pressure: 10 bar
• Motor power: 4.0 kW (5 HP)
• Noise level: 67 dB
• Power supply: 400 V
• Tank capacity: 270 l
• Connection: 1/2"
• Dimensions (width x depth x height): 160 x 66 x 126 cm
• Weight: 200 kg
