Scissor Motorcycle Lift ATH-Bike Lift 7F

Country of origin: Germany, warranty period – 24 months

Professional electrohydraulic scissor lift for motorcycles, designed for intensive use in service facilities. The lift offers high stability, premium build quality, and a durable structure. Operates on single-phase 230V power supply, ensuring smooth and efficient lifting even under heavy loads. Suitable for traditional motorcycles and, with additional adapters, for ATVs, mini motorcycle lifts, or wheel holders.

Features:
  • High-quality electrohydraulic system
  • Mechanical locks hold the load without pressure in the system
  • Integrated ramps – free space under the platform when raised
  • Emergency lowering in case of power outage

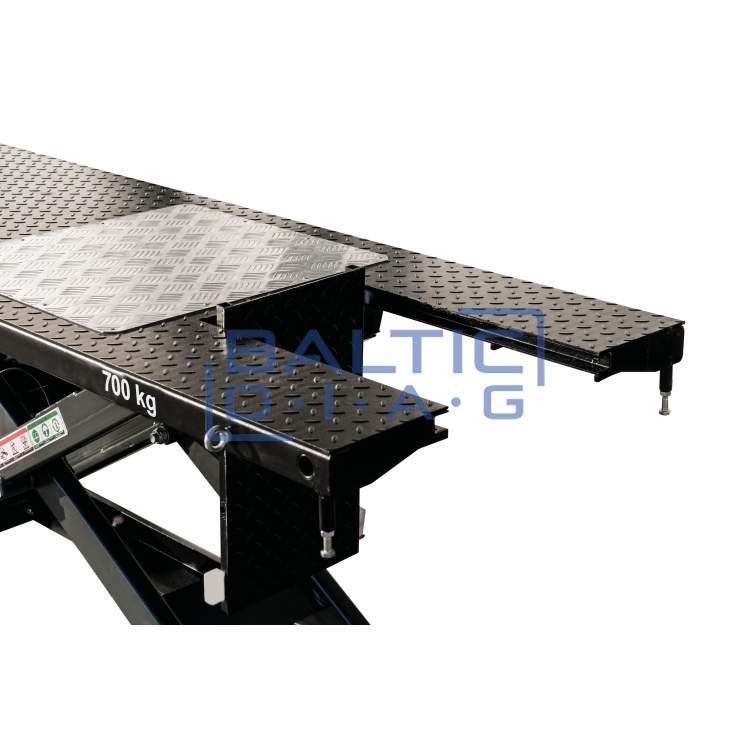

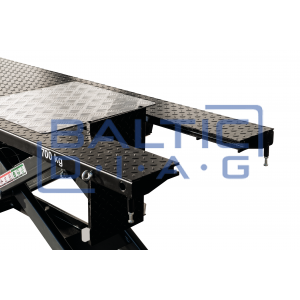

  • Removable plate for rear wheel access
  • Aluminum plate for mini lifts
  • Optional equipment: wheel holders, ATV adapters, mini lifts
Technical specifications:
  • Lifting capacity: 700 kg
  • Lifting height: 150 – 1200 mm
  • Platform width: 730 mm
  • Motor power: 2.2 kW
  • Package dimensions: 2250 x 730 x 280 mm
  • Lifting/lowering time: 15 s
  • Pit depth requirement: 100 mm
  • Concrete strength requirement: C20/25
  • Weight: 275 kg
  • Oil capacity: 6 l
  • Fuse: 3C16A
