Scania truck diagnostic equipment Jaltest

Jaltest PC Diagnostic Equipment for Scania Trucks

Warranty period – 24 months

Why Choose Jaltest PC Scania?

• Versatile and all-in-one system. A single device enables full diagnostics of Scania vehicles – from ECU management to component activation.
• Access to Jaltest INFO. The integrated database speeds up diagnostics by providing step-by-step repair guides, diagrams, images, and detailed parameter data.
• Ideal for growing workshops. With optional licenses, you can expand diagnostics to other truck brands – no need for separate devices.
• Stable performance and high efficiency. Constant software updates ensure compatibility with the latest Euro 6 standards and smooth, glitch-free operation.
• Fast technical support. Official manufacturer assistance, online support, and both warranty and post-warranty repair services ensure continuous reliability.
• Try before you buy. Test the Jaltest system in your own workshop without commitment – experience the benefits in real working conditions.

Features:

• Supports all commercial vehicle standards and protocols, including RP1210 and Pass-Thru

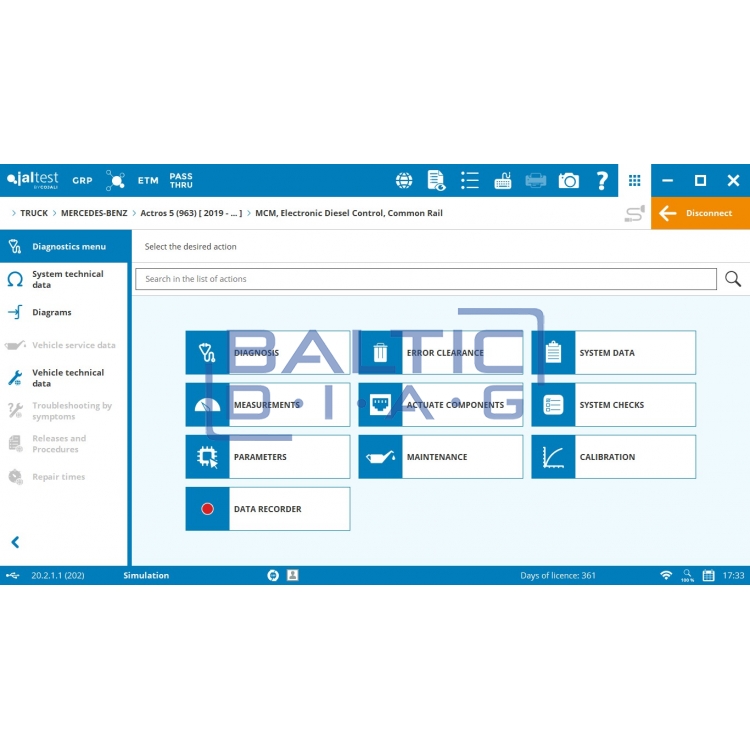

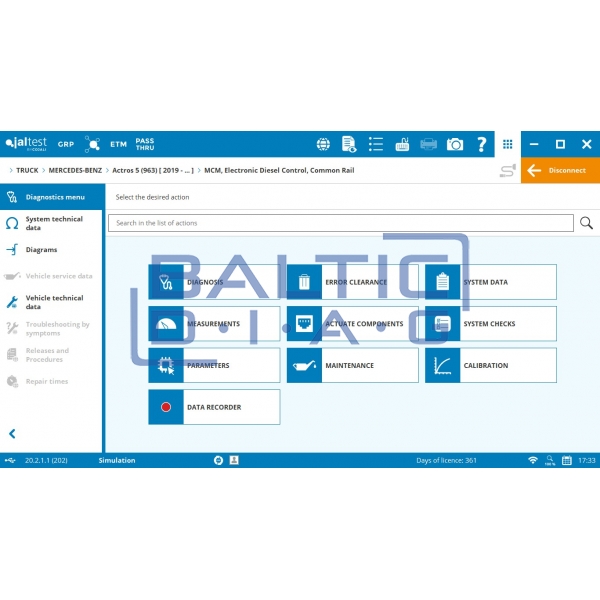

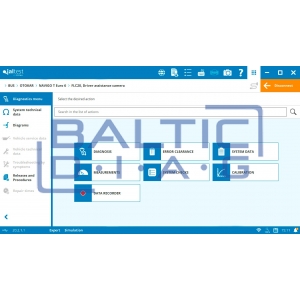

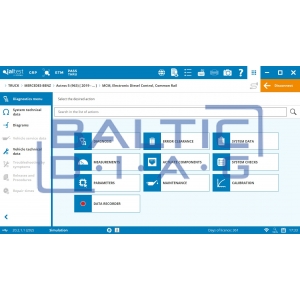

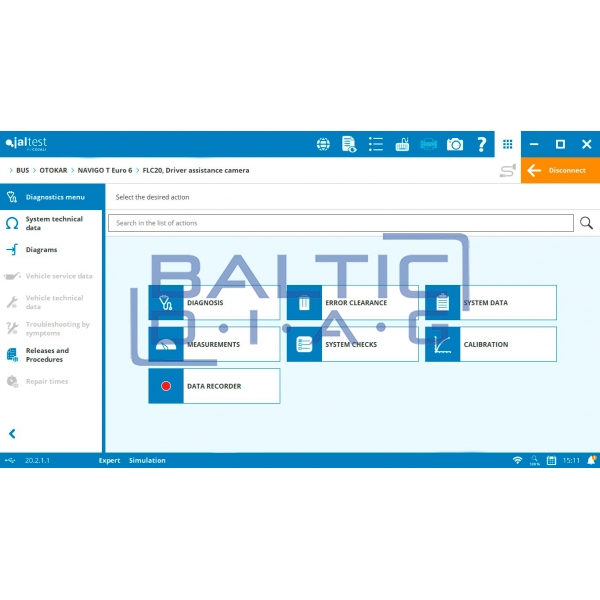

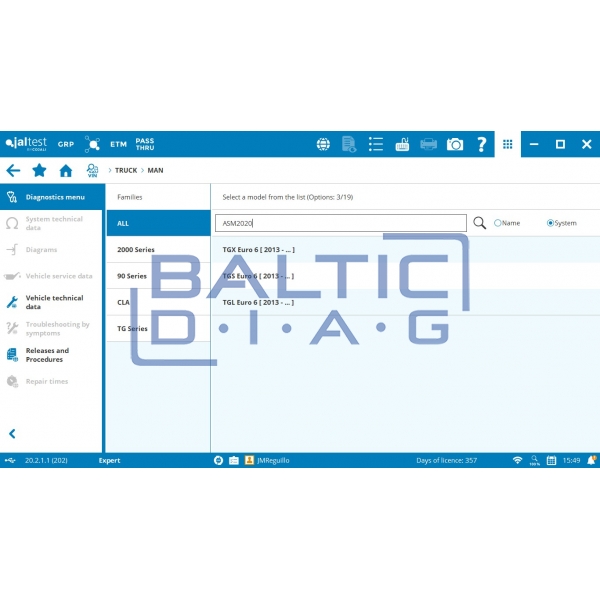

• Intuitive and fast software interface

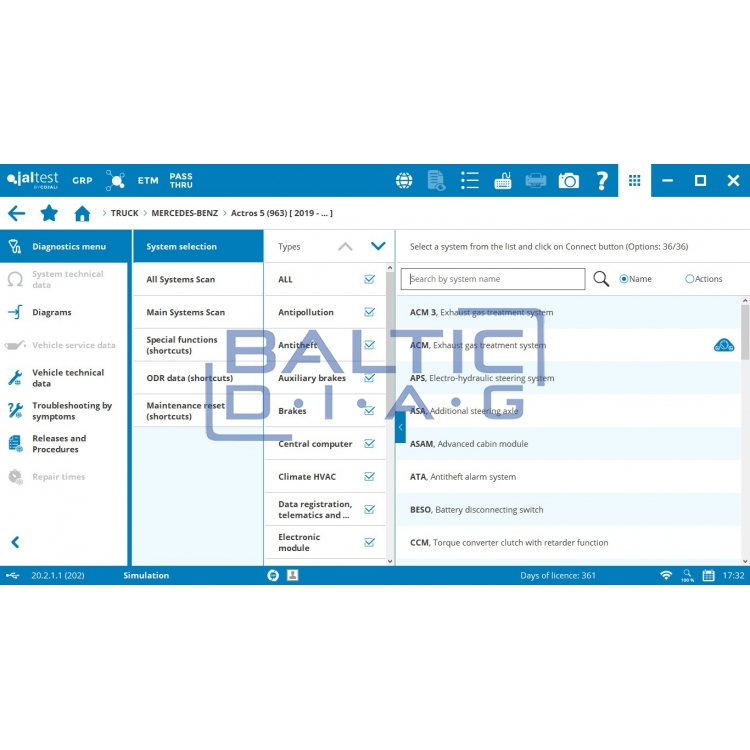

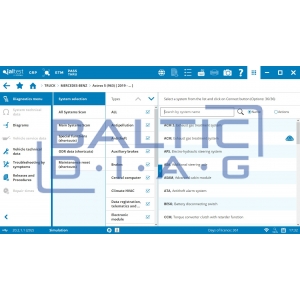

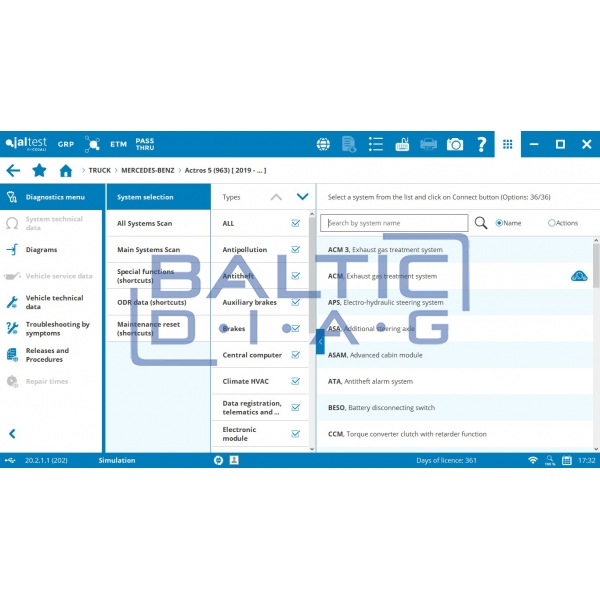

• Automatic system and fault detection

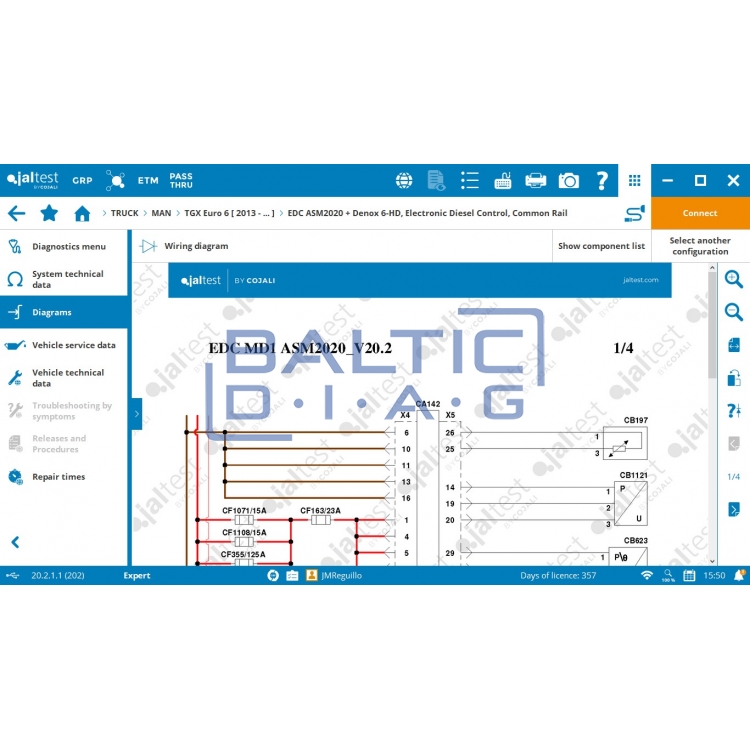

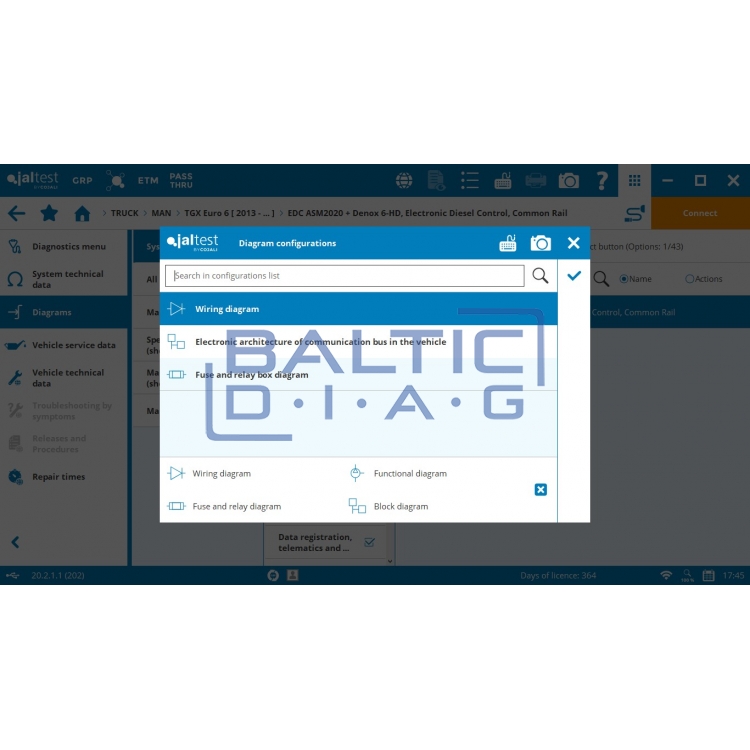

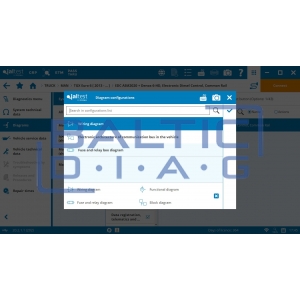

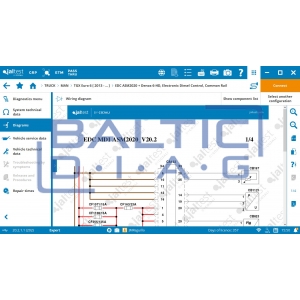

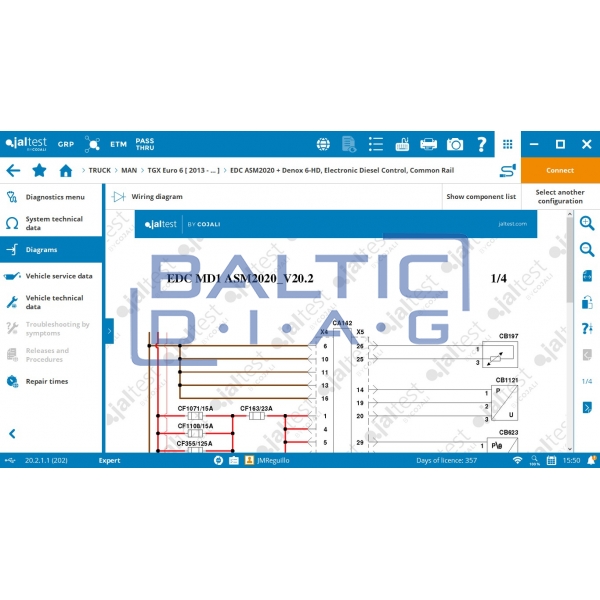

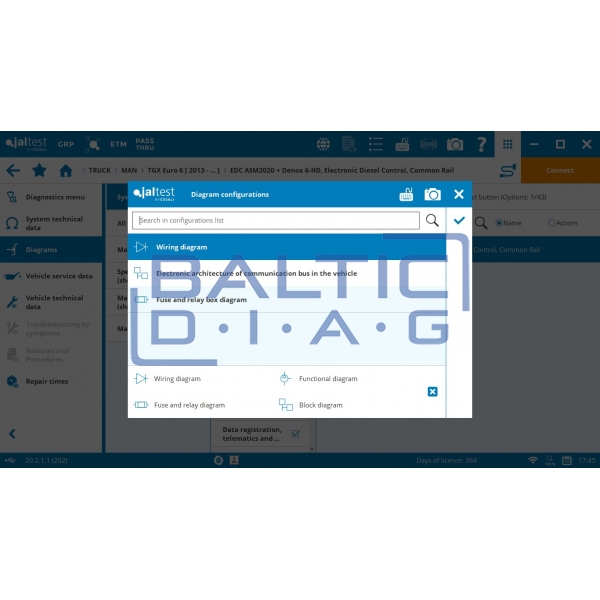

• Integrated technical information, wiring diagrams, technical documents
• ETM – electronic test module
• GRP – garage resource planning
• Brand-specific licenses can be purchased separately
• Repair times
• ECU (Electronic Control Unit) diagnostics via OBD interface or specific adapter
• Ability to connect to any diagnostic port using a universal diagnostic cable with special adapters
• Integrated automatic multiplexer – automatic switching of K and L, CAN, and SAE lines to any OBD terminal
• Supported diagnostic protocols: ISO 9141-2, K/L lines; ISO 14230 (KWP2000), K/L lines; SAE-J1850 VPW and PWM; ISO 11519-2; SAE J1708; ISO 15765-4 (OBD); CAN ISO 11898; CAN (High Speed, Medium Speed, Low Speed, single-wire CAN support); SCI Haldex; RP 1210; SAE J2534 (PASS-THRU)

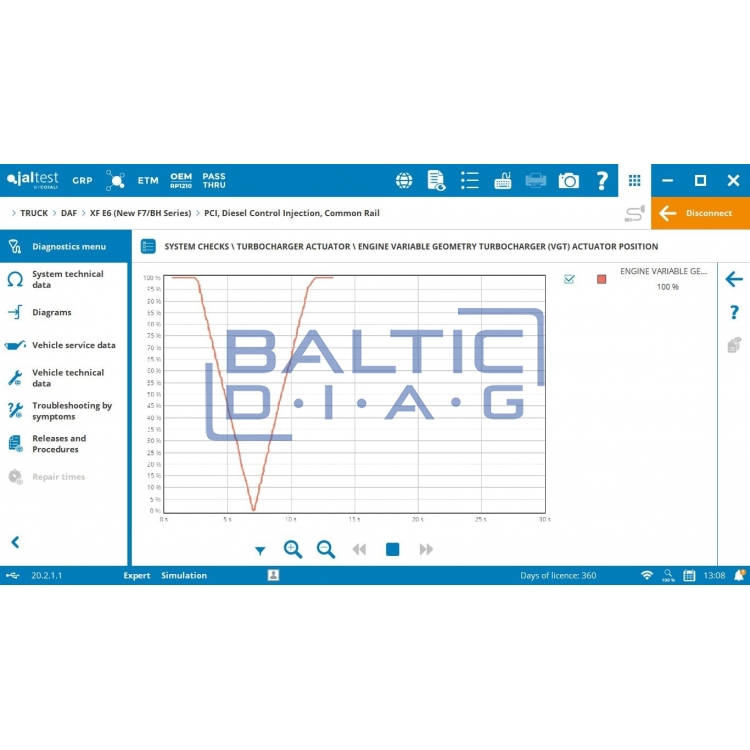

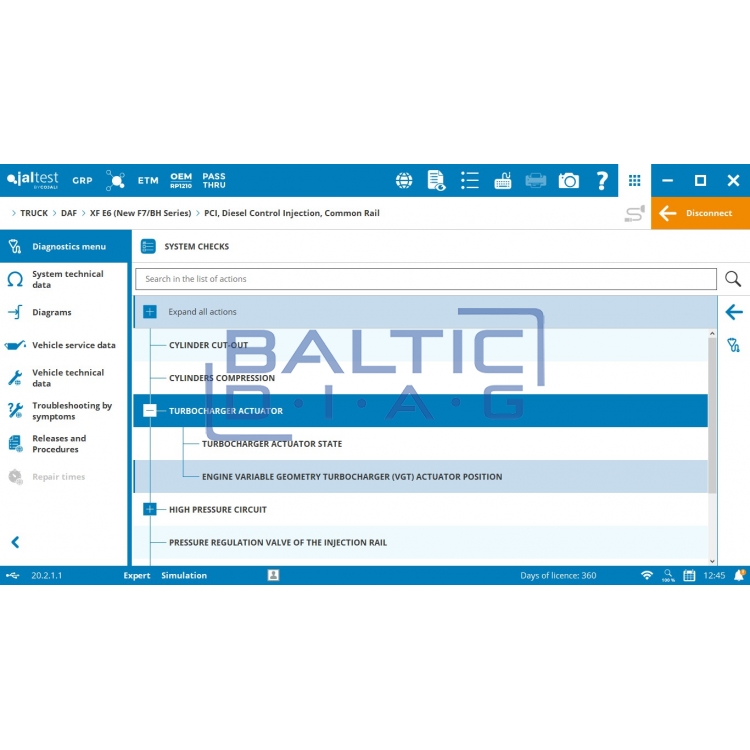

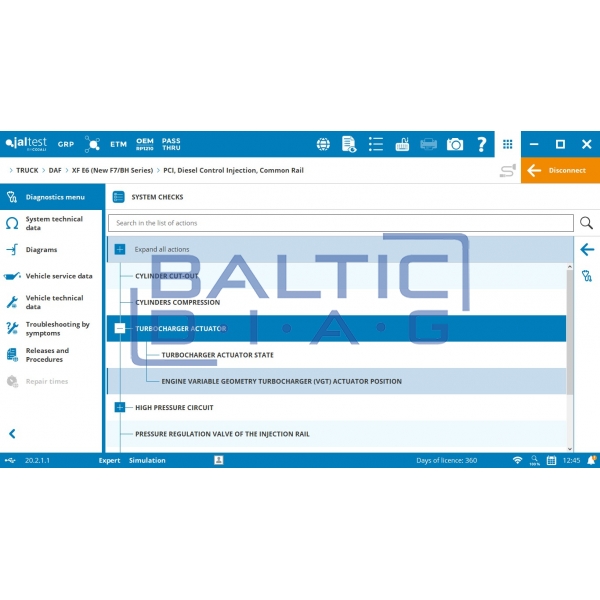

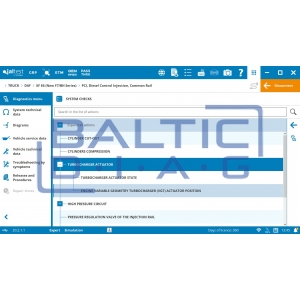

• Component activation: ability to send signals to various systems using Jaltest – such as fan activation, cylinder deactivation, compression testing, and control of various mechanical operations

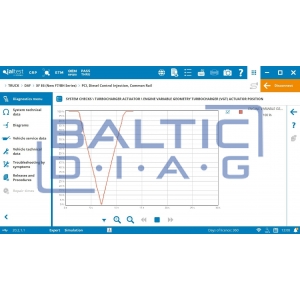

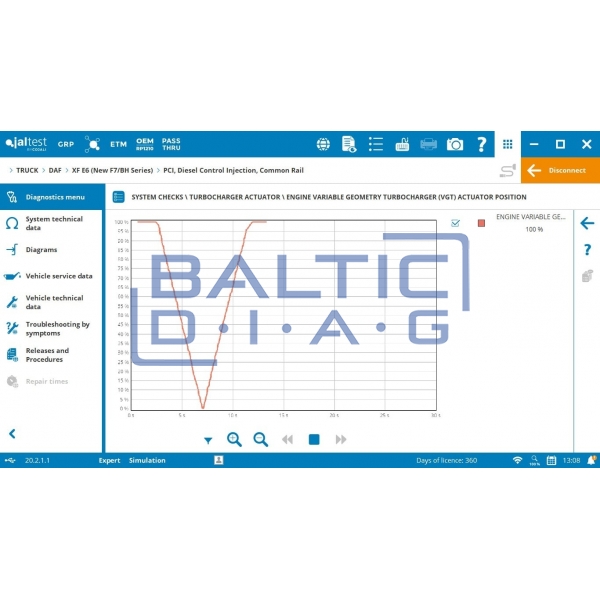

• Up to 8 values can be measured and displayed simultaneously / includes nominal value range information

Technical Specifications:

• Connects to desktop or laptop PC via Bluetooth or USB cable
• Bluetooth range: 20–50 m
• Minimum PC requirements: DVD drive, Windows XP, 7, 8, 10 64-bit OS, 2 GB RAM, 10 GB free hard drive space, USB port
• Powered via OBD connector or 12/24 V DC power supply
• Power consumption: 7W
• Shock-resistant housing
• Weight: 1.2 kg
• Dimensions: 183 x 131 x 56 mm
• Operating temperature: from 0°C to +45°C
• Multilingual menu
• Certifications: CE, FCC, RoHS

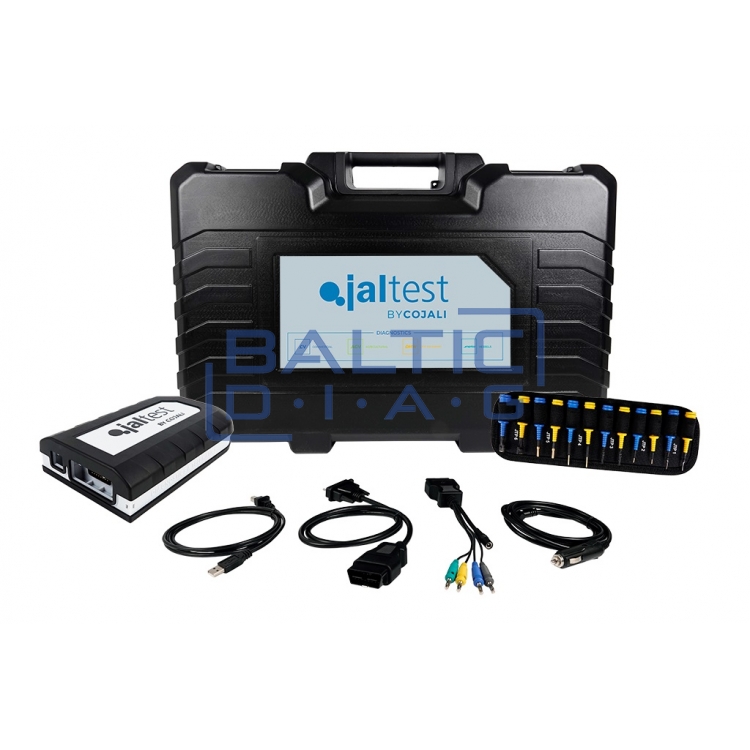

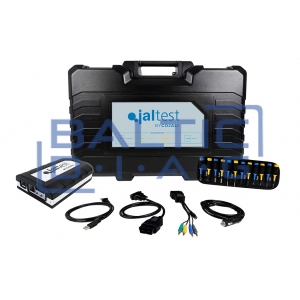

Standard Kit Includes:

• 70001017 – Jaltest Link Kit
• 293137 – Scania truck license
• 29380 – Carrying case
• JDC213M3 – OBD cable
• JDC107.4 – USB cable
• JTP96 – Universal diagnostic cable with a set of special adapters
• Power cables for battery and vehicle power outlet

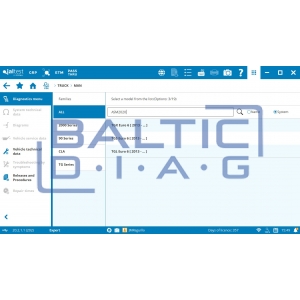

Supported SCANIA Truck Models:

• 113; 114; 124; 143; 144; 164; 93; 94;
• G Series: G 230–G 540 Euro 6 [including pre- and post-2017 models]
• P Series: P 220–P 500 Euro 6
• R Series: R 230–R 730 Euro 6
• S Series: S 370–S 730 Euro 6
• Also includes: Scania Common Systems

Who Is This Device For?

• This diagnostic system is designed for professional truck service centers, independent Scania vehicle technicians, maintenance specialists, and transport companies operating Scania fleets. It’s the ideal solution for those seeking a reliable, efficient, and scalable tool for everyday diagnostics.

Reliable Equipment – Efficient Work. Start Today!

• Choose the official Jaltest PC solution for Scania truck diagnostics – enjoy full functionality, stability, and expert support. Contact us for a free trial or a consultation – and experience the real advantages of Jaltest in your workshop!
