Rim straightening machine K-Mak Basic-B

Rim straightening machine K-Mak Basic-B

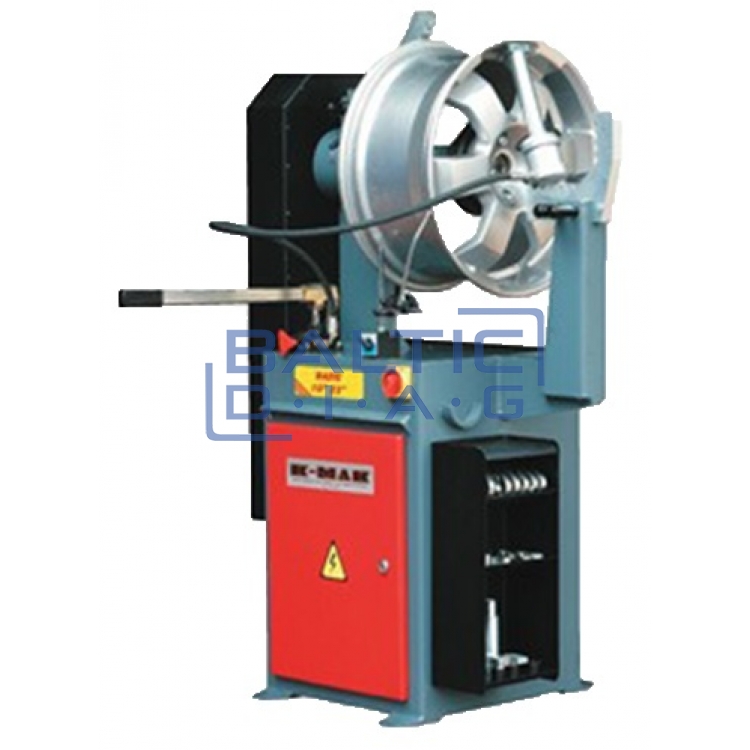

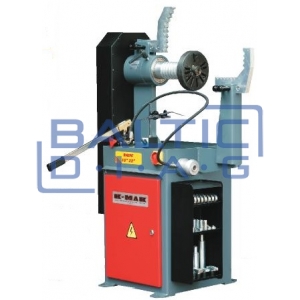

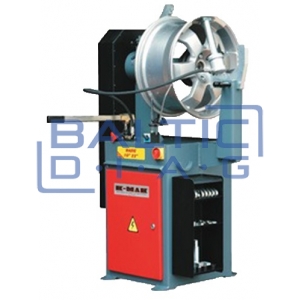

This rim straightening machine is designed and built to solve your problems with damaged and bent rims, which can have a huge negative impact on wheel balancing. The Basic B model consists of two main components, an electric pivot axis and a rim balancing system. These machines work on the same principle as fixed balancers. With the help of the monitoring of the measuring device and the hydraulic cylinder, you will be able to straighten practically all dents in the rims. The cylinder is capable of developing a pressure of 7500 kg, and the axis of rotation has an automatic function, which ensures the most optimal speed and the most suitable conditions for smoothing rims.

Technical parameters:

• Model: Basic - B
• Working rim size: 10" - 24"
• Maximum rim width: 12"
• Hydraulic system: manual hydraulic pump
• Motor power: 0.25 kW
• Motor power supply: 400 V; 50 Hz; 3 fz
• Working pressure: 0 – 150 Bar (standard: 125 bar)
• Noise level: 70 dB(A)
• Dimensions: 900 x 600 x 1550 mm (length x width x height)
• Weight: 225 kg
• Color: Gray - red
• Package dimensions: 650 x 1000 x 1450 mm

Complete set:

• Rim straightening K-Mak Basic - B
• Rim centering rings x 14 pcs.
• Rim conical thimbles x 5 pcs.
• Rim caupang nuts  x 5 pcs.
• Piston extension rings x 3 pcs.
• Piston lengthening arms x 4 pcs.
• Straightening heads x 5 pcs.
• Nuts M12 x 5 pcs.
• Bead straightening lever
