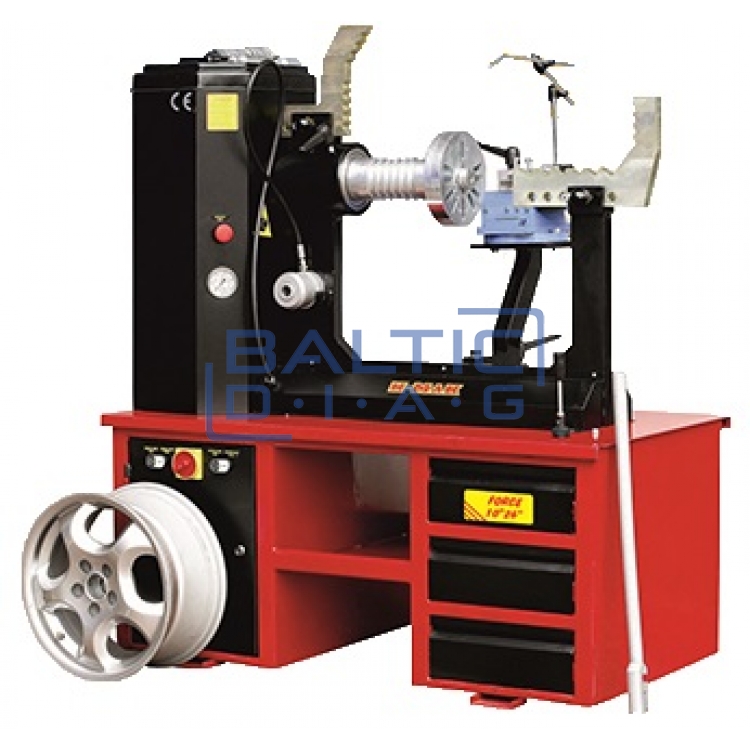

Rim straightening and turning machine K-Mak Force

Rim straightening and turning machines K-Mak Force

This rim straightening and turning machine is an advanced and precisely engineered mechanism designed to remove the small dents or deformations in rims that can cause many negative rim balancing problems. This machine completes the range of wheel balancers, ensuring that your wheels are smooth and perfectly aligned. Force machine - for straightening 10" - 26" rims. Straightening works are carried out on the principle of fixed balancing, thus providing a reliable and efficient way to correct rim deformations. Importantly, these machines use hydraulic and electrical technologies to achieve exceptional performance. In them you will find a built-in powerful hydraulic cylinder with a pressure of 7500 kg. This cylinder is controlled by a powerful hydraulic design, a reliable electric hydraulic pump that generates the required oil pressure, thus ensuring consistent and flawless operation of the hydraulic system. Thanks to its built-in measuring tool, the machine can precisely determine the curved areas of the rims. Accurate measurement allows precise use of the hydraulic straightening cylinder, ensuring that only the deformed sections of the rim are straightened and thus the integrity of the rim. K-Mak Force machines are designed with customers' needs in mind and their work comfort in mind, making them easy to operate, even for those with minimal technical knowledge. You'll find intuitive controls and automated features that make these machines indispensable in any workshop dealing with wheel maintenance and repair.

Technical parameters:

• Model: Force
• Working rim size: 10" - 26"
• Maximum rim width: 10"
• Hydraulic system: electric hydraulic pump
• Hydraulic pump power: 0.37 kW
• Hydraulic pump power source: 400 V; 50 Hz; 3 fz
• Motor power: 0.37 kW
• Motor power supply: 400 V; 50 Hz; 3 fz
• Working pressure: 0 – 200 Bar (standard: 150 bar)
• Noise level: 70 dB(A)
• Dimensions: 1200 x 700 x 1300 mm (length x width x height)
• Weight: 375 kg
• Color: black - red
• Package dimensions: 1350 x 850 x 1450 mm

Complete set:

• Rim straightening and turning machines K-Mak Doruk
• Rim centering rings x 14 pcs.
• Studs M12 x 80 x 5 pcs.
• Straightening heads x 5 pcs.
• Rim caupang nuts x 5 pcs.
• Piston extension rings x 3 pcs.
• Rim conical adapters x 5 pcs.
• Double nuts M12 x 5 pcs.
• Nuts M12 x 5 pcs.
• Piston extension adapters x 4 pcs.
• Bend straightening lever

The machine is not sold with a lathe support, it is ordered additional:

• Standard lathe support
• Turntable lathe support
• Motorcycle wheel mounting kit
