Renault truck diagnostic equipment Jaltest

Jaltest PC Diagnostic Equipment for Renault Trucks

Warranty period – 24 months

Why Choose Jaltest PC Renault?

• One device – multiple capabilities. Diagnostics, calibrations, ECU control, and activations – all performed with a single tool.
• Technical data at your fingertips. Jaltest INFO offers structured fault resolution guides, diagrams, graphs, and full component data.
• Easily scalable for growing fleets. When adding trucks from other brands, there's no need for a new device – just add a license.
• Stable performance without interruptions. Jaltest software is continuously updated and includes the latest Euro 6 standards.
• Rapid technical support. Official online support, regular updates, and both warranty and post-warranty service ensure smooth operation.
• Risk-free trial. We offer the chance to try the Jaltest device free of charge before committing – test its capabilities in real conditions.

Features:

• Supports all commercial vehicle standards and protocols, including RP1210 and Pass-Thru
• Intuitive and fast software interface

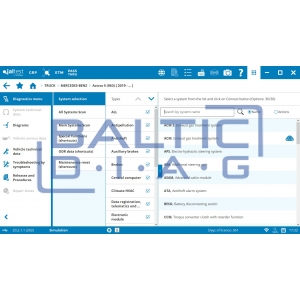

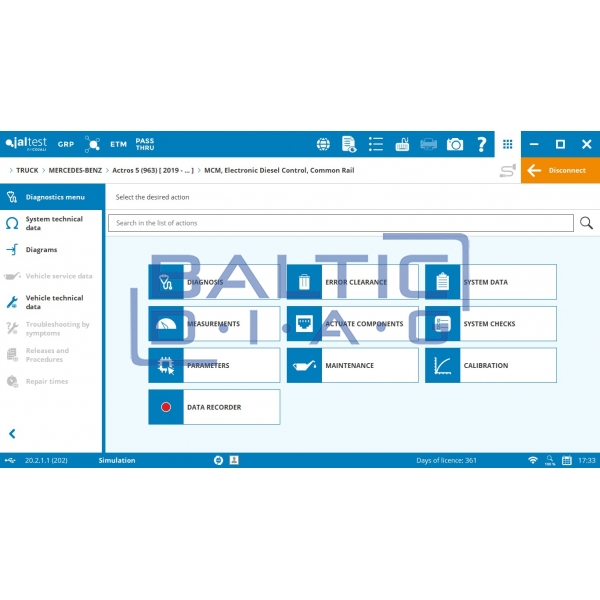

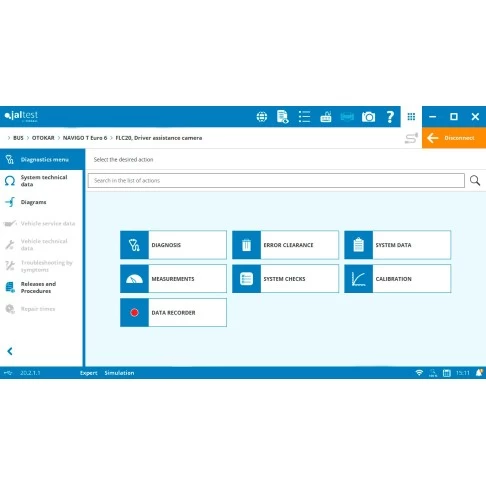

• Automatic system and fault detection
• Troubleshooting based on symptoms and error codes

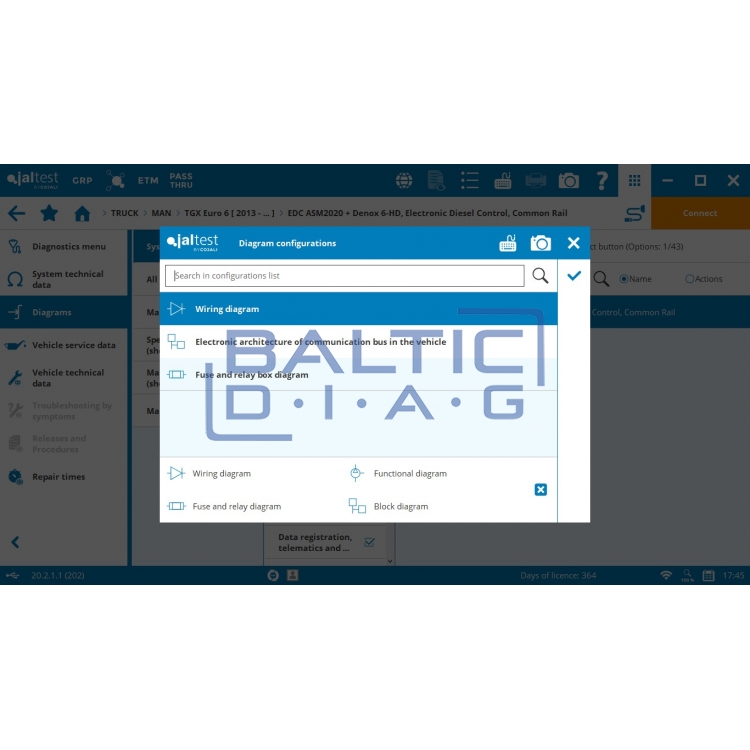

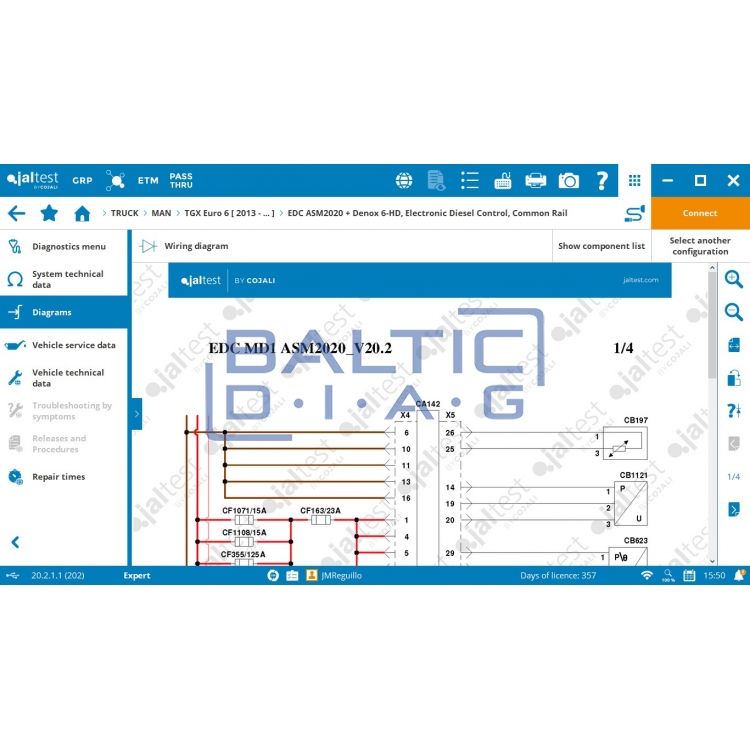

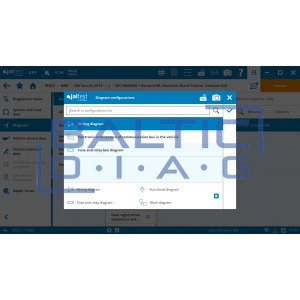

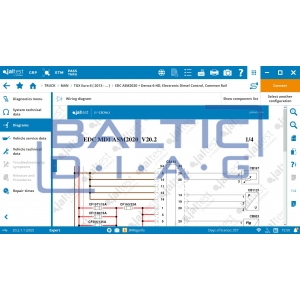

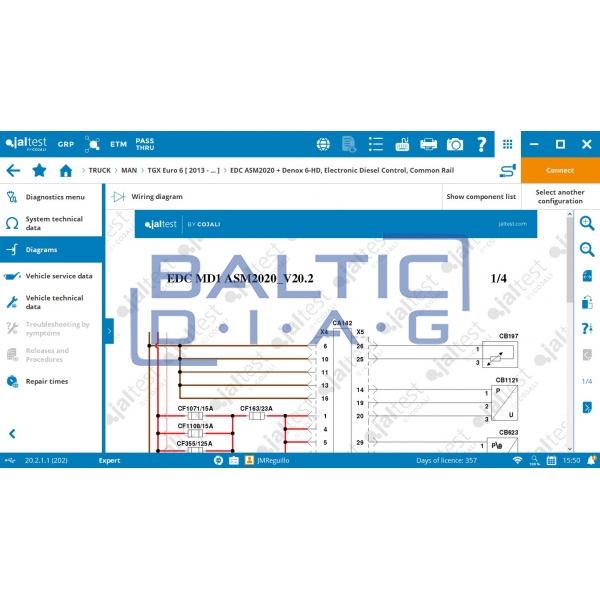

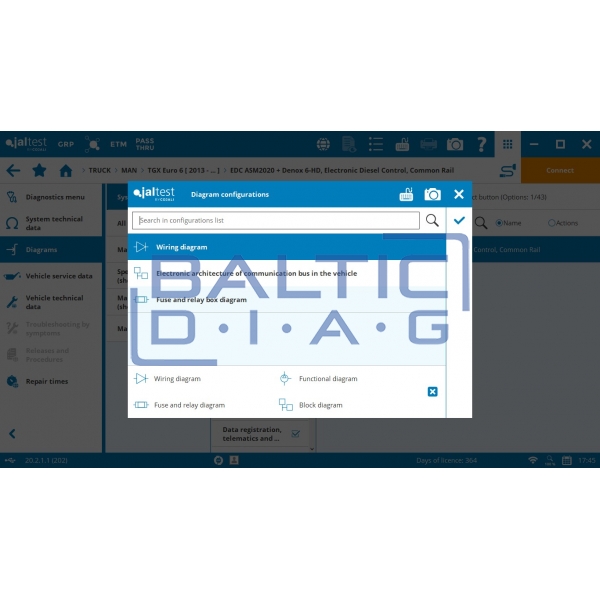

• Integrated technical information, wiring diagrams, technical documents
• ETM – electronic test module
• GRP – workshop resource planning
• Brand-specific licenses can be purchased separately
• Repair times
• ECU (Electronic Control Unit) diagnostics via OBD interface or specific adapter
• Ability to connect to any diagnostic port using the universal diagnostic cable with special adapters
• Integrated automatic multiplexer – automatic switching of K and L, CAN, and SAE lines to any OBD terminal
• Supported diagnostic protocols: ISO 9141-2, K/L lines; ISO 14230 (KWP2000), K/L lines; SAE-J1850 VPW and PWM; ISO 11519-2; SAE J1708; ISO 15765-4 (OBD); CAN ISO 11898; CAN (High Speed, Medium Speed, Low Speed, single-wire CAN support); SCI Haldex; RP 1210; SAE J2534 (PASS-THRU)

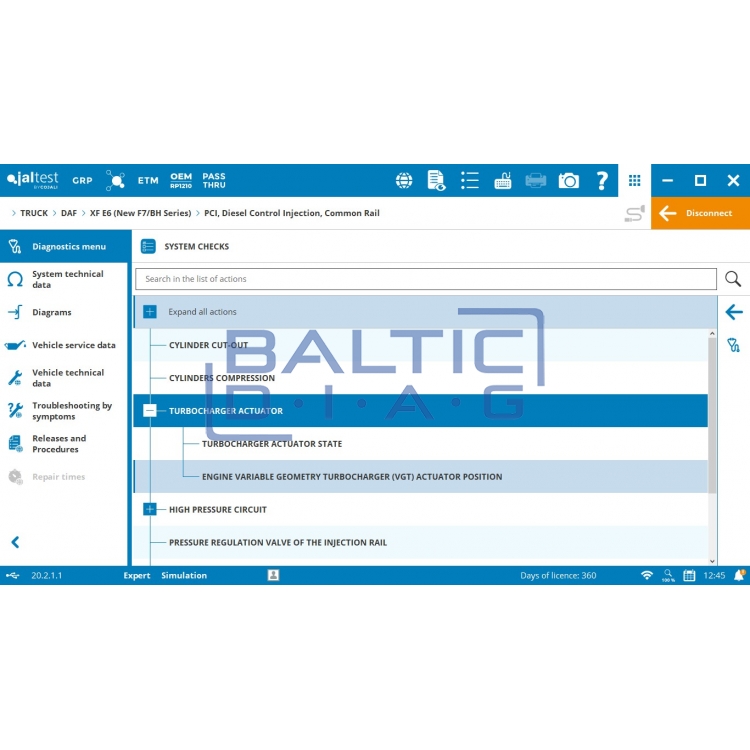

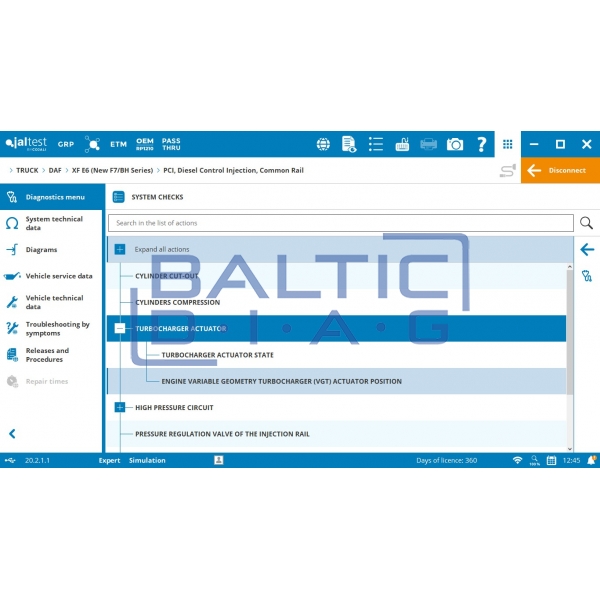

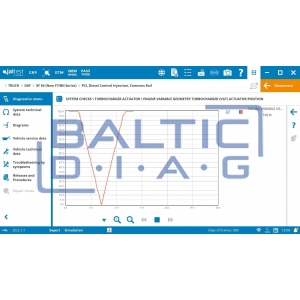

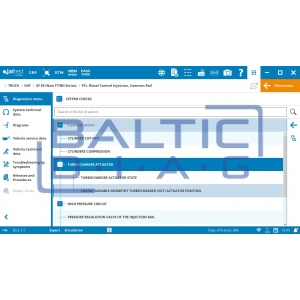

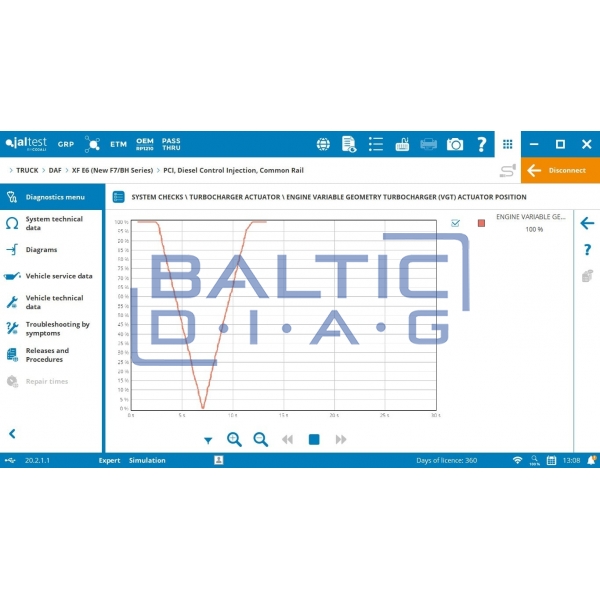

• Component activation: ability to send signals to various systems using Jaltest – such as activating the fan, disabling cylinders, measuring compression, and testing various mechanical functions

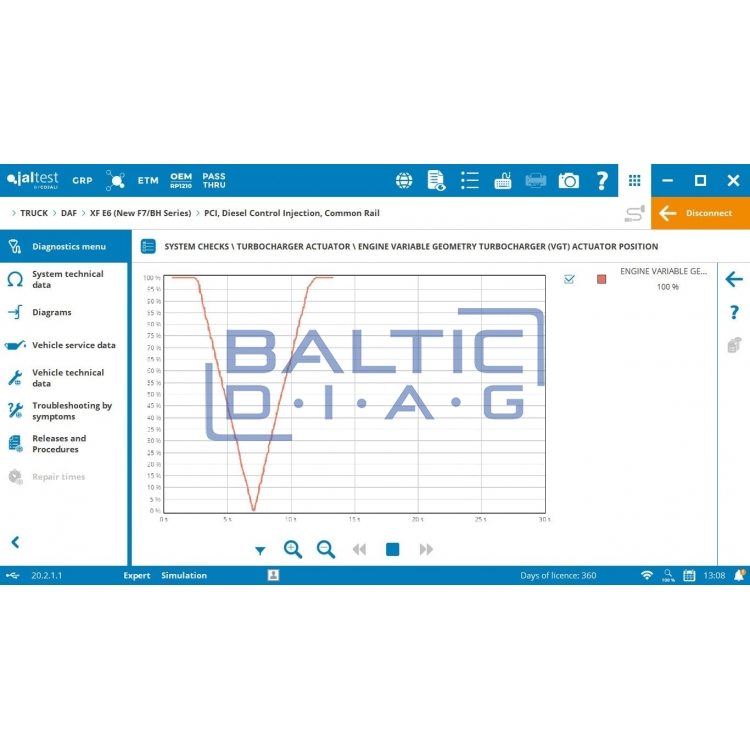

• Up to 8 values can be measured and displayed simultaneously / includes nominal value range information

Technical Specifications:

• Connects to desktop or laptop PC via Bluetooth or USB cable
• Bluetooth range: 20–50 m
• Minimum PC requirements: DVD drive, Windows XP, 7, 8, 10 64-bit OS, 2 GB RAM, 10 GB free hard drive space, USB port
• Powered via OBD connector or 12/24 V DC power supply
• Power consumption: 7W
• Shock-resistant housing
• Weight: 1.2 kg
• Dimensions: 183 x 131 x 56 mm
• Operating temperature: from 0°C to +45°C
• Multilingual menu
• Certifications: CE, FCC, RoHS

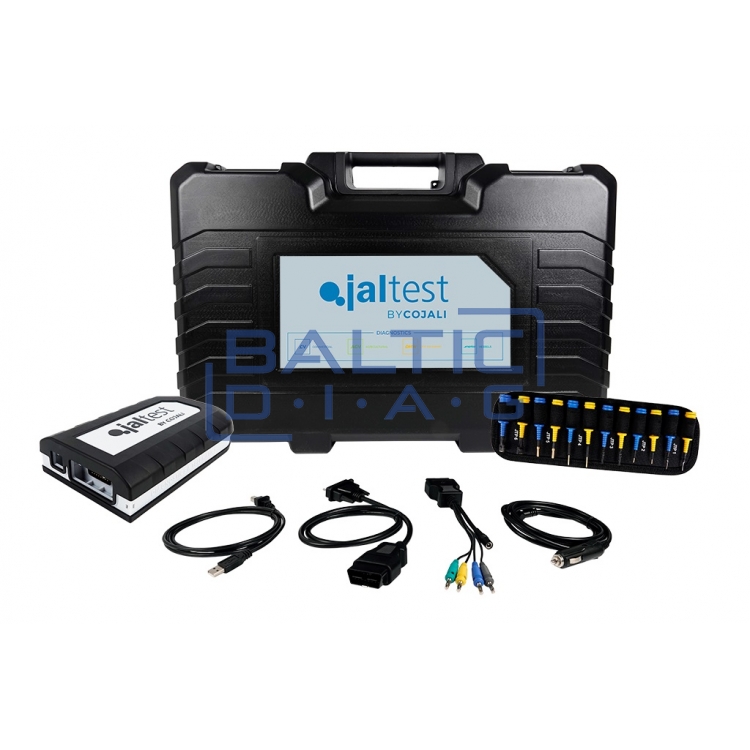

Standard Kit Includes:

• 70001017 – Jaltest Link Kit
• 293135 – Renault truck license
• 29380 – Carrying case
• JDC213M3 – OBD cable
• JDC107.4 – USB cable
• JTP96 – Universal diagnostic cable with a set of special adapters
• Power cables for battery and vehicle power outlet

Supported Renault Truck Models:

• C Series V3 Euro 6 [2013–...]; C Series V4 Euro 6 [2013–...]; D Series V3 Euro 6 (10–26 t) [2013–...]; D Series V3 Euro 6 (3.5–7.5 t) [2013–...]; G; K Series V4 Euro 6 [2013–...]; KERAX; KERAX DXi; MAGNUM; MAGNUM DXi; MAXITY [...–2013]; MAXITY [2014–...]; MIDLINER; MIDLUM; MIDLUM DXi; PREMIUM; PREMIUM DXi; PREMIUM DXi Lander; R; T Series V4 Euro 6 [2013–...]

Who Is This Device For?

• This diagnostic system is ideal for truck service centers, independent Renault vehicle technicians, maintenance professionals, and companies managing fleets of Renault trucks. It’s a tool built for high performance, precision, and broad application in daily operations.

Invest in quality that pays off – try Jaltest!

• Choose the official Jaltest PC solution for Renault truck diagnostics – benefit from professional functionality, reliability, and responsive support. Contact us for a free trial or consultation – and take the opportunity to work more efficiently, starting today!
