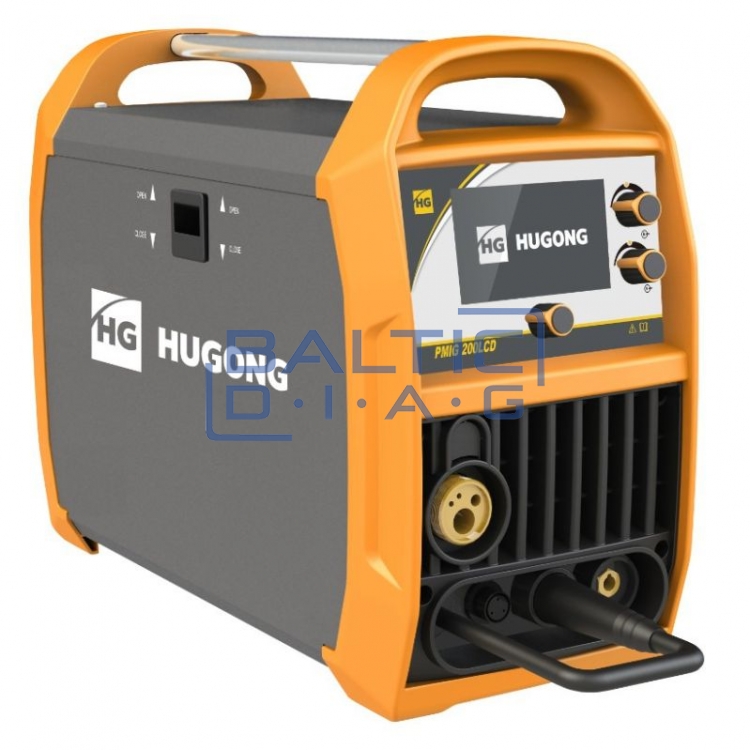

Pulse MIG Welding Machine with LCD Display Hugong PMIG200LCD 200A

Pulse MIG Welding Machine with LCD Display Hugong PMIG200LCD 200A

Country of origin: Netherlands, warranty period – 24 months

The Hugong PMIG200LCD is an advanced synergic MIG welding inverter with pulse and double pulse functionality. This 3-in-1 machine supports MIG/MAG, MMA, Lift-TIG, and Pulse MIG welding modes, combining digital precision with high performance. Its compact design and wide range of settings make it suitable for both workshop and on-site use. The PMIG200LCD offers both synergic and manual control, allowing users to choose between automatic adjustment or full parameter customization. It is suitable for welding steel, stainless steel, aluminum, and flux-cored wires.

Features:

• Pulse and double pulse MIG – precise heat input and speed control, ideal for stainless steel and aluminum
• LCD display with synergic control – clear parameter visualization with automatic or manual adjustment
• 4-in-1: MIG (with pulse), MMA, Lift-TIG, and spot welding – versatile solution with advanced MIG features
• Impact-resistant ABS housing – durable construction for demanding environments

Technical Specifications:

• Power supply: 220 V – single phase
• Frequency: 50/60 Hz
• Open-circuit voltage: 68 V
• Input power: 8.36 kVA
• Nominal input current: 38 A
• Duty cycle @40 °C: 20% – 200 A

Welding current range:

• MIG: 30–200 A
• MMA: 25–200 A
• Compatible wire diameters: 0.8 / 1.0 / 1.2 mm
• Protection class: IP21S

Product Dimensions:

• Length: 490 mm
• Width: 190 mm
• Height: 335 mm
• Weight: 11.0 kg

Packaging Dimensions:

• Length: 555 mm
• Width: 305 mm
• Height: 420 mm
• Weight: 15.70 kg

Included in the Package:

• MIG torch EP1500 – 3 m, with Teflon wire liner (1.0–1.2 mm)
• Ground clamp with 3 m cable
• Reinforced air hose – 4 m with NW5 quick coupling
• Wire spools: 0.8U / 1.0U and 1.0 / 1.2 mm, and 0.8 / 1.0 mm (solid wire)
• Contact tips: 0.8 mm, 1.0 mm, 1.2 mm
• 1 x wire guide and 1 x guide tube
• NW5 coupling + 10–16 mm hose clamp
