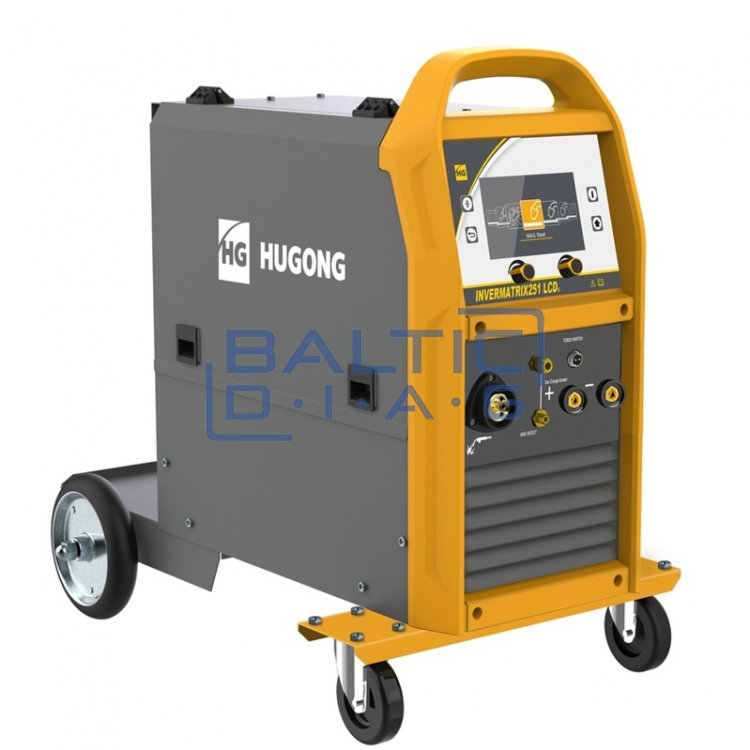

Pulse MIG welding machine with LCD display Hugong INVERMATRIX251LCD 250A

Pulse MIG Welding Machine with LCD Display Hugong INVERMATRIX251LCD 250A

Country of origin: Netherlands, warranty period – 24 months

The Hugong INVERMATRIX251LCD is an advanced, mobile multi-functional welding system with pulse and double pulse functionality, designed for professional MIG/MAG and MMA (stick) welding. This high-power machine combines a durable construction, smart synergic control, and wide adjustment capabilities, making it ideal for welding steel, stainless steel, and aluminum.

The device supports both manual and automatic operation, automatically selecting optimal parameters based on wire type, material, shielding gas, and wire diameter. The digital display allows for precise adjustment of current, voltage, and inductance, while the memory function enables saving and quickly recalling welding settings – especially useful in serial production or repetitive tasks.

An integrated 4-roll wire feed system, shock-resistant ABS housing, and advanced control features make this model a premium choice for workshops requiring efficiency, mobility, and reliability.

Features:

• Pulse & Duplex Pulse MIG welding with synergic control – precise arc management, ideal for stainless steel, aluminum, and heat-sensitive materials
• Memory function – saves and recalls welding settings for serial production
• Digital display with full material, gas, and wire selection – intuitive and accessible interface
• Integrated 4-roll wire feeding system – smooth, slip-free feeding
• Impact-resistant ABS housing – long-lasting and durable for harsh environments

Technical Specifications:

• Power supply: 220 V – single phase
• Frequency: 50/60 Hz
• Open-circuit voltage: 77 V
• Input power: 27.5 kVA
• Nominal input current: 43 A
• Duty cycle @40 °C: 60% – 250 A
• Welding Current Range:
• MMA: 20–250 A
• MIG: 30–250 A
• TIG: 20–250 A
• Compatible Welding Wire:
• MIG wire: 0.6–1.2 mm
• Flux-cored wire: 0.8–0.9 mm
• Protection class: IP21S

Product Dimensions:

• Length: 935 mm
• Width: 485 mm
• Height: 870 mm
• Weight: 46.0 kg

Packaging Dimensions:

• Length: 950 mm
• Width: 570 mm
• Height: 810 mm
• Weight: 76.10 kg

Included in the Package:

• MIG torch EP2400 – 3 m
• Ground cable 3 m (25 mm²) with 35–70 mm² quick connector and ground clamp
• Air hose (pneumatic connector), 3 m × Ø8 mm reinforced tube
• 2 hose clamps 10–16 mm
• Accessory kit: wrench, contact tips 0.8 mm and 1.0 mm (1 pc each)
