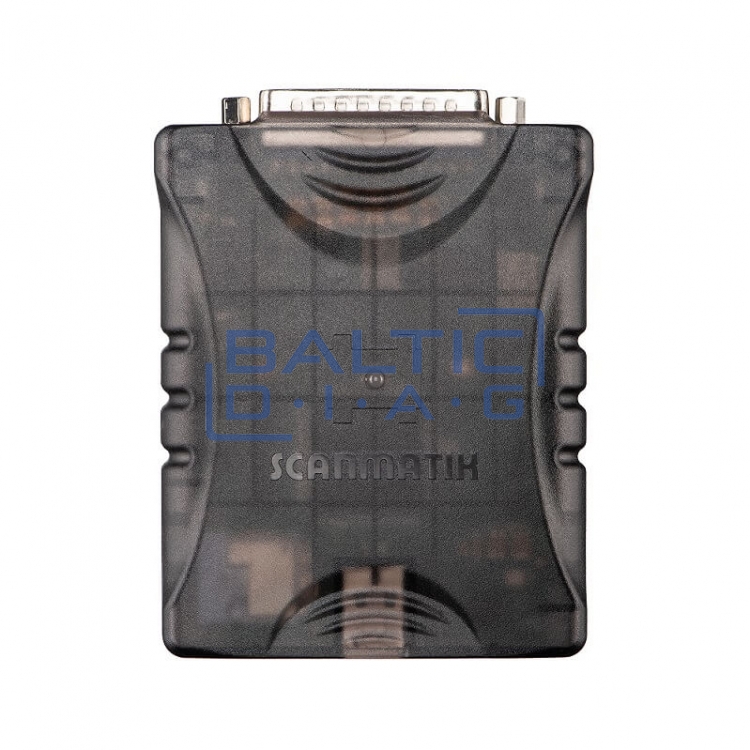

Professional diagnostic scanner Scanmatik 3

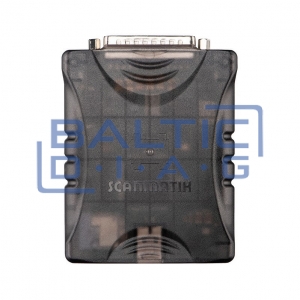

Scanmatik 3 professional diagnostic scanner

Country of origin: Spain, 24 months warranty period

Scanmatik 3 is a professional diagnostic and control unit reprogrammer for OEM diagnostic software, ECU overwriting, vehicle programming and tuning solutions. It is the successor to the Scanmatik SM2Pro adapter, with added support for CAN-FD and DoIP protocols. It supports SAE J2534-1/2 and TMC RP1210 standards and can be used for diagnostics and reprogramming of passenger cars, heavy vehicles, buses and commercial vehicles. Scanmatik 3 is suitable for use with applications such as PCMflash, BitBox, Combiloader, MDFlasher and other J2534 and RP1210 compatible software.

Technical specifications:

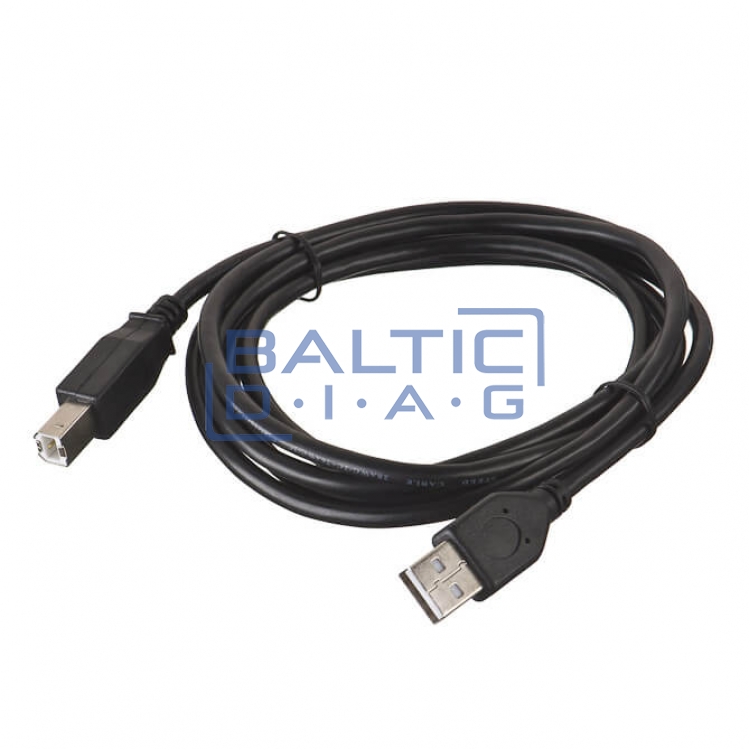

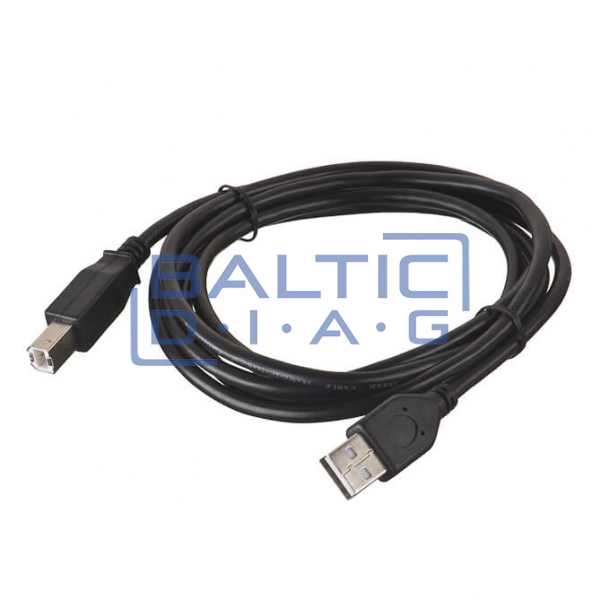

• Connection to PC: USB or Wi-Fi
• USB port: galvanically isolated
• Wi-Fi standard: IEEE 802.11b/g/n
• Operating Frequency: 2.4GHz / 2.412-2.480GHz
• Supported on-board voltage: up to 24 V
• Surge protection: up to 55 V
• Supported standards: SAE J2534-1 V0404, SAE J2534-1 V0202, SAE J2534-2, TMC RP1210C
• K-LINE / Chrysler SCI channels: 13 x ISO-9141-2 / ISO-14230-2 / Chrysler SCI
• Multiplexing of K-LINE channels to J1962 OBD connector contacts: 1, 2, 3, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
• J1850 channels: 1 x J1850 VPW / PWM
• CAN channels: 5 x CAN 2.0 / CAN-FD
• Multiplexing of CAN channels to OBD contacts: 6-14, 3-11, 12H-13L or 12L-13H with polarity reversal, 1-9, 2-10
• Single Wire CAN: 1 x GM
• DoIP channel: 1 x 10/100BASE-TX
• Programming voltage generator FEPS: 5-24 V
• FEPS multiplexing to OBD connector contacts: 6, 8, 11, 12, 13, 14

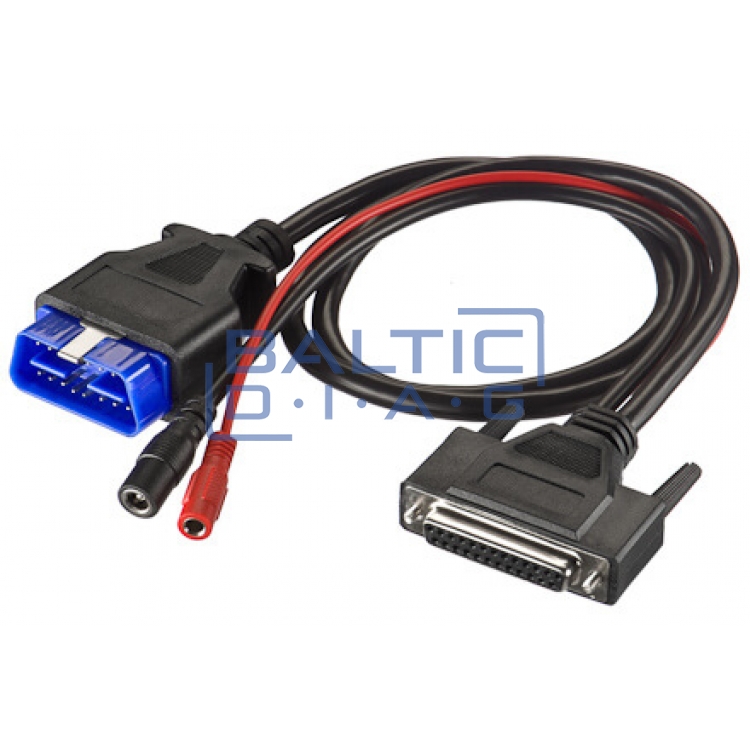

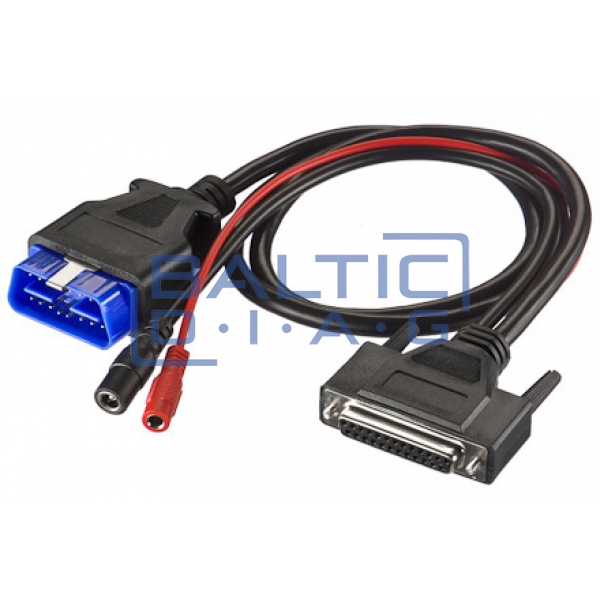

• Separate AUX programming voltage output: to DB-25 connector
• Adapter dimensions: 97 x 75 x 22 mm
• Compatible operating systems: Windows, Android

The Scanmatik 3 professional diagnostic scanner is designed for workshops, diagnostic technicians and ECU programming applications that require a reliable, versatile and widely compatible adapter for professional software. With extensive protocol support, 24 V system compatibility, USB and Wi-Fi connectivity and support for J2534 / RP1210 standards, the device can be used for diagnostics and reprogramming of both passenger cars and heavy vehicles.
