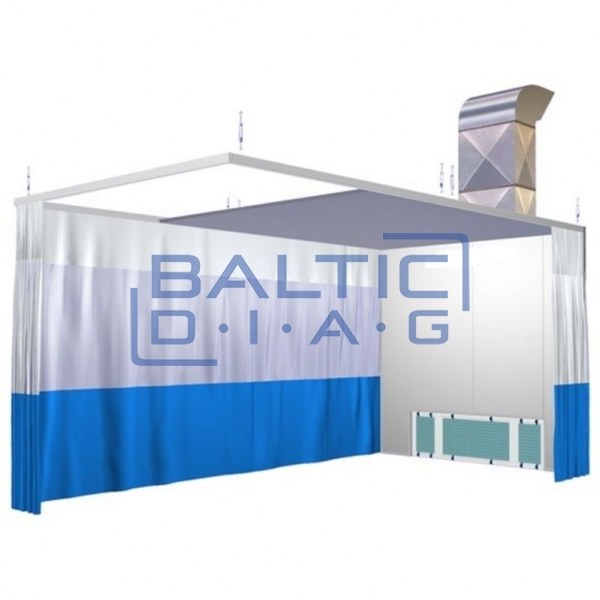

Preparation booth BD-22

Preparation Booth BD-22

Country of origin: China, warranty period - 24 months

The BD-22 preparation booth is a modern and efficient system designed for vehicle surface preparation, sanding, and painting tasks. It provides reliable solutions for air exhaust, filtration, and lighting, while its durable steel construction and additional protective features make it ideal for intensive use in car service and paint workshops.

Functions:

• Rear air exhaust system
• Digital control system for fan and lighting
• Three-colored PVC protective curtains – white, transparent, blue
• Steel construction with a 50 mm thick EPS rear wall panel
• Ceiling mounting using steel cable or support posts
• Multi-layer fiberglass filtration system, effectively capturing dust particles
• YDW air fan with high air volume
• LED lighting with 3C-certified tempered glass covers

Technical specifications:

• Internal dimensions: 6300 × 3450 × 2800 mm (Length × Width × Height)
• External dimensions: 7550 × 3550 × 3200 mm
• Ceiling system: 6400 × 3550 × 380 mm, enclosed panels on all sides with light fixtures between them
• Air cabinet dimensions: 2290 × 1200 × 1800 mm
• Exhaust fan: 1 pc. 5.5 kW YDW, air volume – 15000 m³/h
• Filtration efficiency: >70%
• Lighting system: 8 groups × 4 = 32 pcs. 16W LED lamps
• Light housings: galvanized steel with 3C-certified tempered glass
• Control system: power supply for fan and lighting
• Voltage: 380 V, 50 Hz, 3 phase
• Power: 6 kW
