Preparation booth BD-21

Preparation Booth BD-21

Country of origin: China, warranty period - 24 months

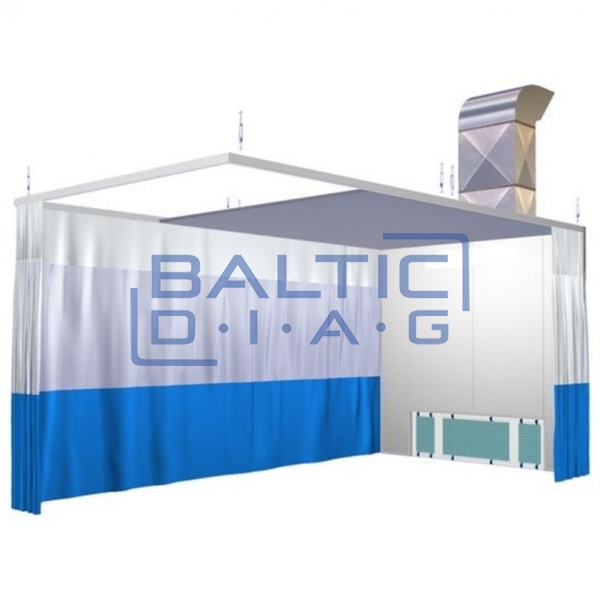

The BD-21 preparation booth is a compact preparation system designed for vehicle surface preparation, sanding, and painting tasks. It ensures proper ventilation, particle filtration, and working comfort. Thanks to its reliable ventilation, filtration, and sturdy construction, the BD-21 is ideal for use in car repair shops or auto body workshops.

Functions:

• Rear exhaust ventilation system
• Digital control system for the air fan
• Three-colored PVC curtains – white, transparent, and blue
• Steel construction with a strong EPS panel on the rear wall
• Option to mount to the ceiling using a steel cable or support posts
• Efficient air filtration with multi-layer fiberglass filter
• High-capacity YDW air fan
• No lighting system (can be installed additionally)

Technical specifications:

• Internal dimensions: 6300 × 3450 × 2800 mm (Length × Width × Height)
• External dimensions: 7550 × 3550 × 2880 mm
• Ceiling system: 6400 × 3550 × 80 mm, frame made of 40 × 80 mm square steel
• Air cabinet dimensions: 2290 × 1200 × 1800 mm
• Exhaust fan: 1 pc. 5.5 kW YDW, air volume – 15000 m³/h
• Filtration efficiency: >70%
• Control system: power supply for the air fan
• Voltage: 380 V, 50 Hz, 3 phase
• Power: 6 kW
• Lighting: none
• Protective curtains: 3-sided PVC curtains with 50 mm EPS rear panel
• Mounting: steel cable or support posts
• Frame construction: steel with anti-corrosion protection and protective film
