Pneumo-hydraulic pit lift 15 tons

Pneumo-hydraulic pit lift 15 tons

Manufacturer: Falco Sollevatori

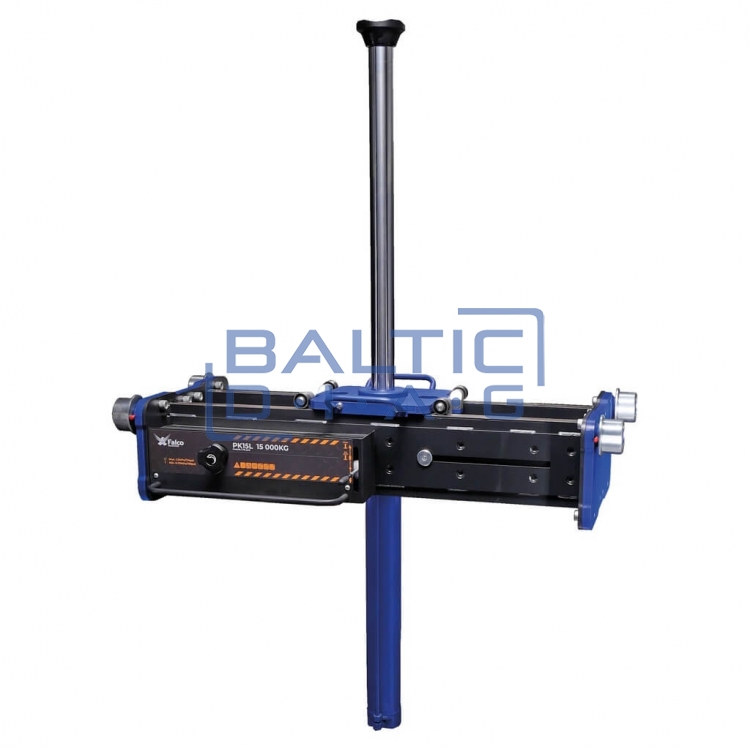

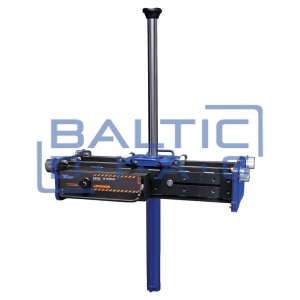

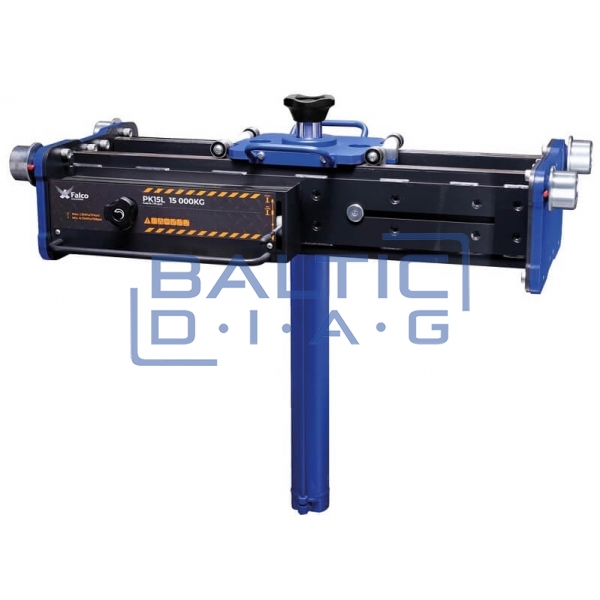

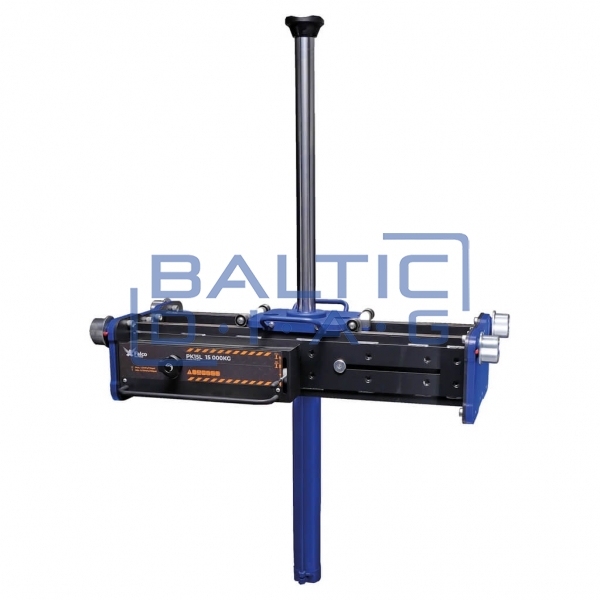

The single-cylinder pneumo-hydraulic pit lifter is designed for safe and responsible use of cars, buses, minibuses, trucks and other vehicles, with maximum efficiency and safety features.

Pit lift features:

• Built-in pneumo-hydraulic pump with double lifting system. This system provides greater lift at fast idle and slower, even speed when lifting with a load.
• Two throttle valves are installed, thanks to which the lowering speed of the lift will be regulated. The advantage of this system is that the lift will be lowered slowly if it has a load. And the receiver will not have any load, in this case it will go forward much faster. This makes the lift not only safe, but also very efficient, saving time during work.
• The cleverly designed single cylinder lifter ensures maximum lifting power and reliable operation.
• The width of the pit lift frame can be adjusted, and the modular side panels allow for multiple mounting options. For this reason, the hoist can be adapted to standard pit types.
• The hydraulic cylinder can be pushed to the left or to the right of the frame structure, which gives the possibility to adapt to the way of lifting.
• The pit lifter moves on four wheels that can be mounted with separate mounting plates. The casters in the plates have roller bearings that ensure easy movement along the length of the hole.
• Each pit lifter can be adapted to the required pits by selecting all the adapter plates. Different from the required type of rails, cylindrical or conical can be selected. Depending on the required height, the required long or short adapter plates can be selected.

Attention:

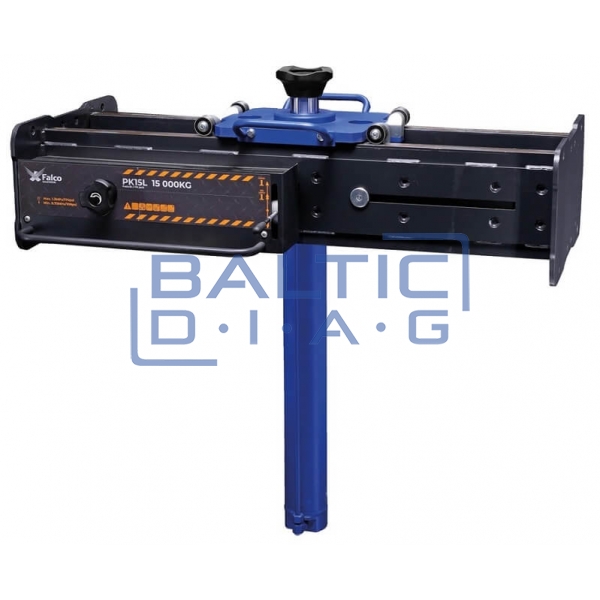

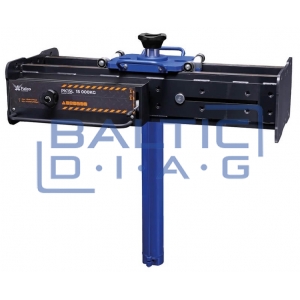

All pit lifts are sold without adapter/mounting plates! It can be selected according to the pit profile and dimensions.

Available choices of standard mounting plates:

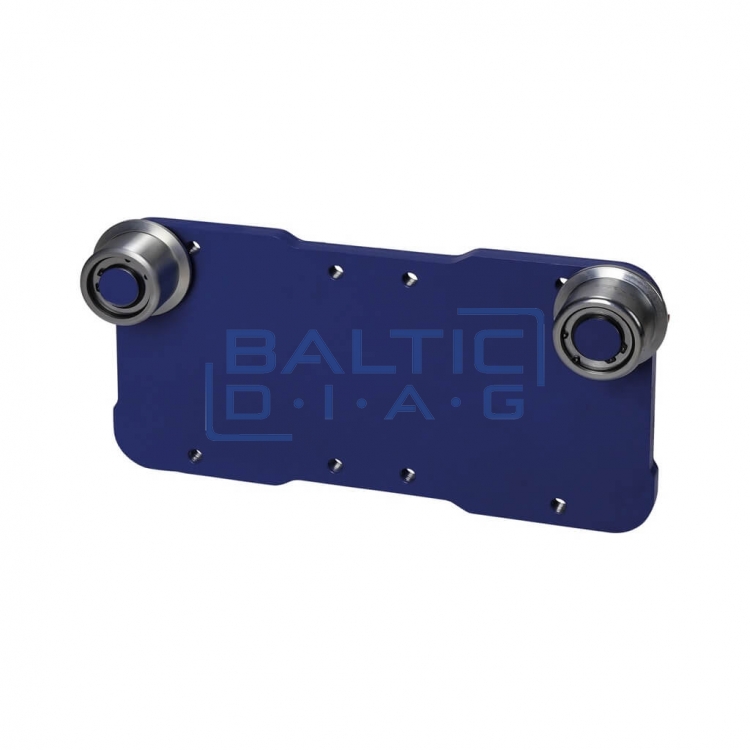

• Short plate + cylindrical wheels for pit jack
• Long plate + cylindrical wheel for pit jack
• Short plate + conical wheel for pit jack
• Long plate + conical wheel for pit jack

Technical parameters:

• Lifting capacity: 15 tons
• Working air pressure: 7.5 - 12 bar
• Stroke: 800 mm
• Min. height: 1020 mm
• Max. height: 1820 mm
• Plot: from 1100 to 1400 mm
• Depth: 665 mm
• Weight: 280 kg
• Product length: 600 mm
• Product width: 1100 mm
• Product height: 1010 mm
• Product weight: 272 kg
