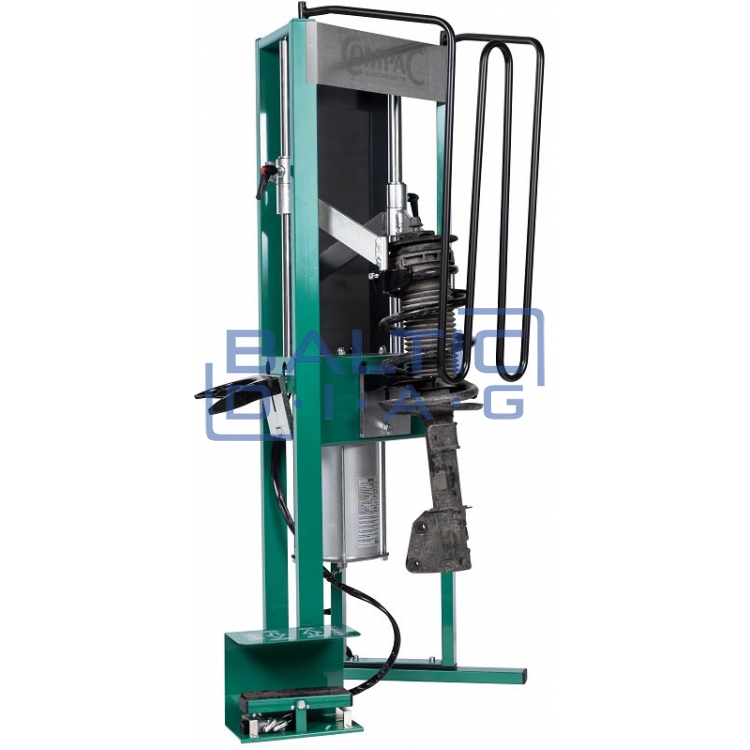

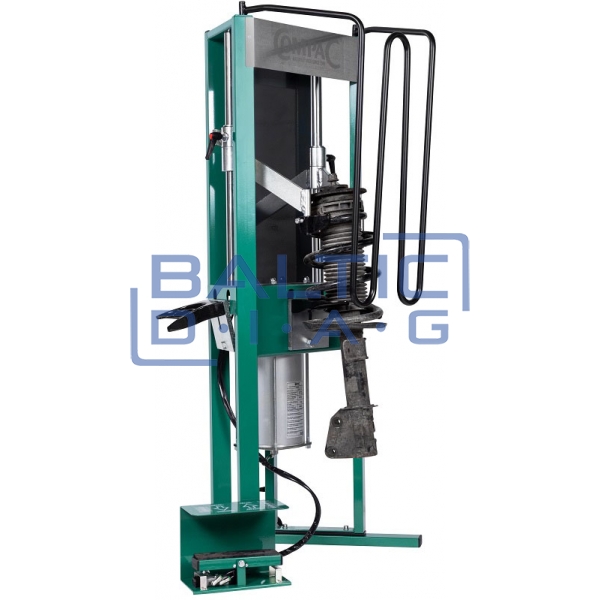

Pneumatic Spring Compressor CSC+

Pneumatic Spring Compressor CSC+

The pneumatic spring compressor CSC+ is a modern and reliable tool for fast and safe compression of automotive springs. Using the reliable MCPherson compression technology, this device allows you to work accurately and efficiently with various types of springs. Ideal for professional workshops where speed, reliability, operator safety and high power are valued.

Features:

• Uses McPherson spring compression technology
• The compressor is controlled by a foot pedal and compressed air
• Ideal choice for repairing small and large cars, electric cars, minibuses, SUVs
• Sufficient power to compress very stiff springs used in Ducato, Jumper and Boxer vehicle models
• Extremely strong compression handles with Teflon bearings
• Large Ø160 mm diameter pneumatic cylinder provides additional compression power
• CSC+ provides up to 60% more compression power than the CSC model
• Protective shield - comfortable and provides a proper working position
• Moving universal grippers ensure precise and vertical pressure

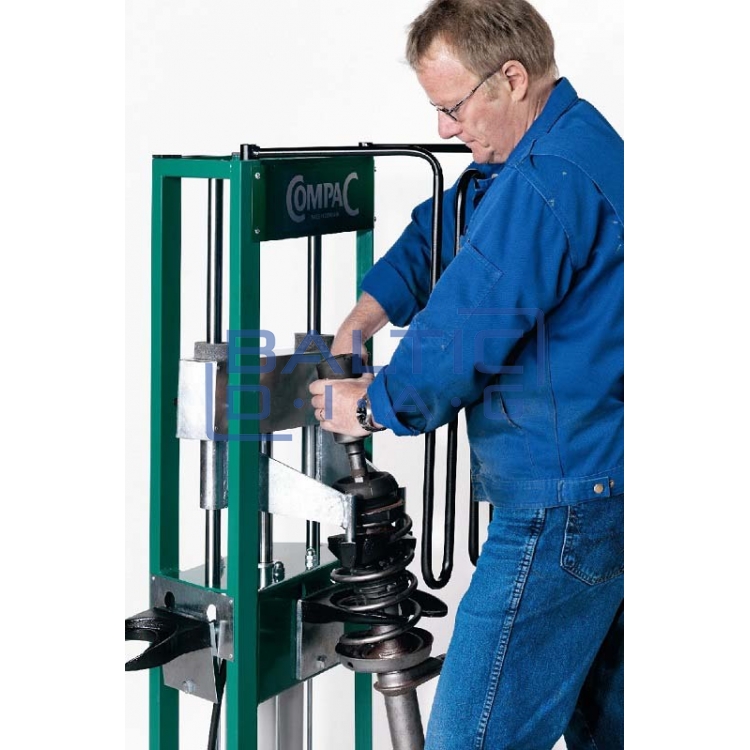

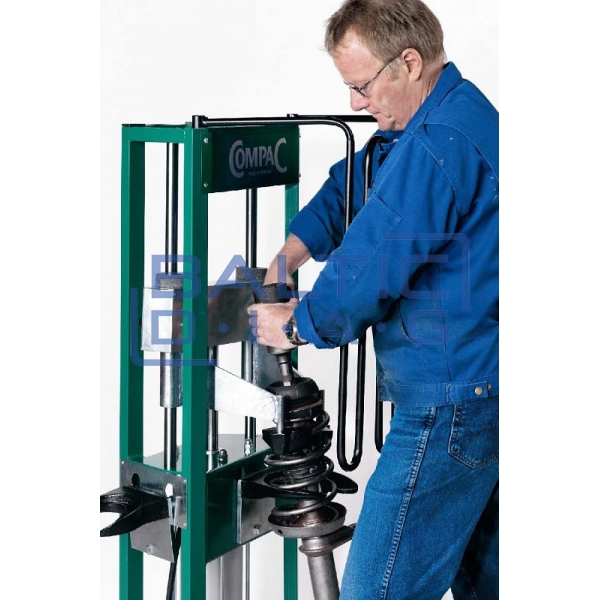

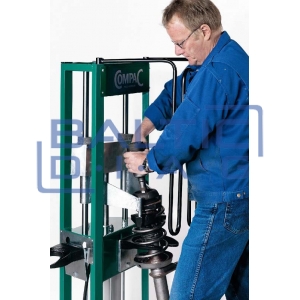

• Easy access to the upper nut for convenient unscrewing, installation and dismantling.
• Safety locks can lock the adjustable pressure arms
• "Universal" adjustable clamps, suitable for almost all springs
• Suitable for conical springs.
• Ready for work in just a few seconds.

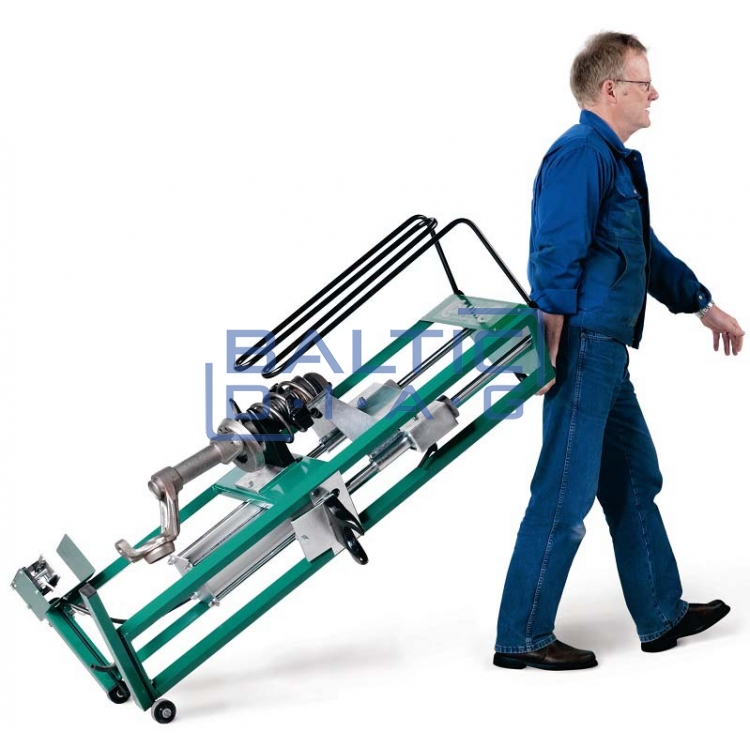

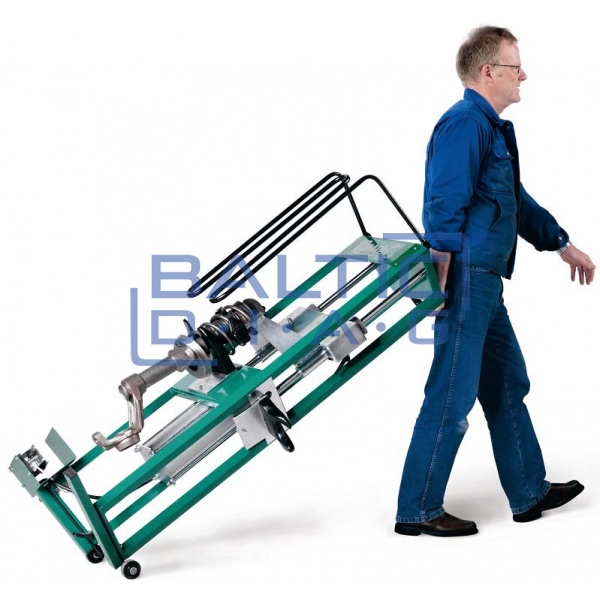

• Mobile - easy to move between different work sites.
• The set includes 2 spring holders (Ø78-125 mm and Ø125-200 mm).

Technical parameters:

• Working air pressure: 8 - 10 bar
• Cylinder stroke: 330 mm
• Maximum distance between clamps: 390 mm
• Weight: 74 kg
• Package height: 1450 mm
• Package length: 330 mm
• Package width: 540 mm
