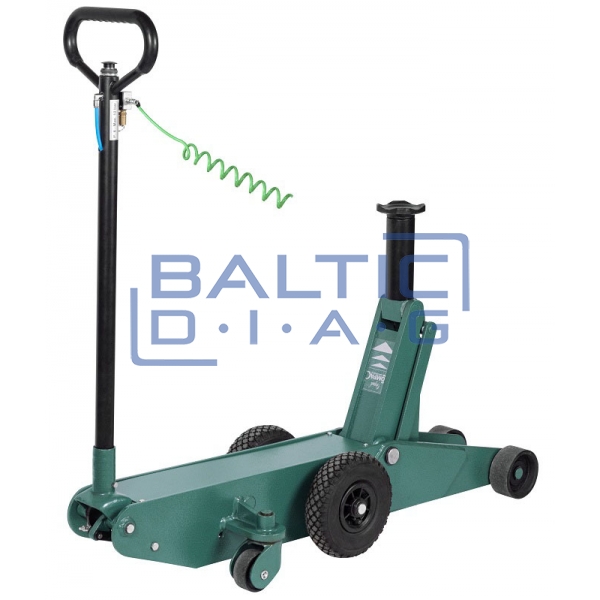

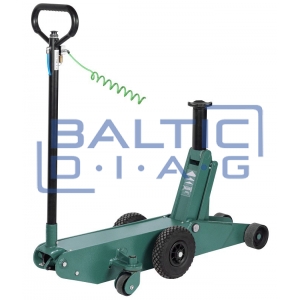

Pneumatic Jack A10T-HC

Pneumatic Jack A10T-HC

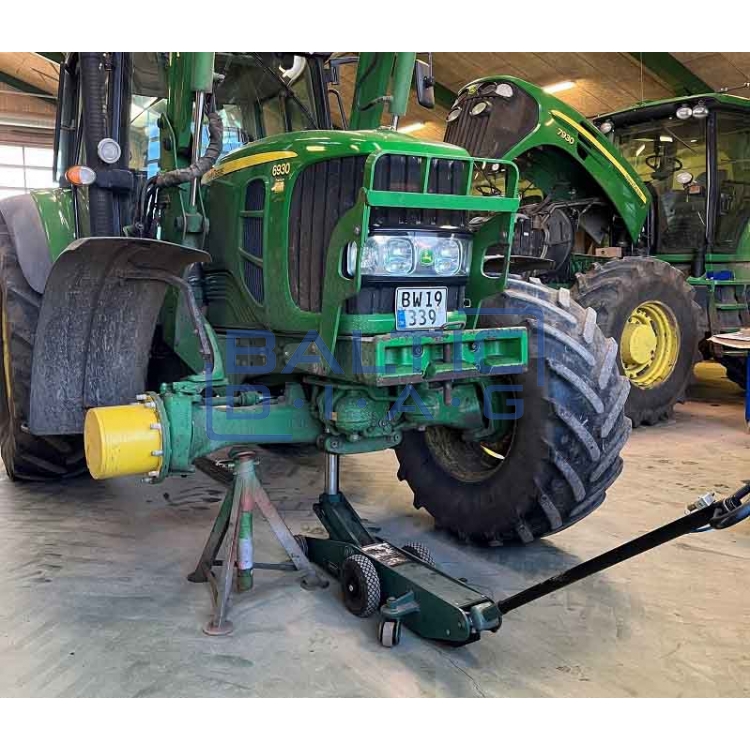

This elevated pneumatic jack is the ideal choice for professional workshops or enthusiasts who value convenience and efficiency. The jack uses a fully pneumatic lifting system, which ensures quick and easy lifting of the vehicle without physical effort. Due to its low initial height, the jack is perfectly suited to working with low vehicles. The A10T-HC jack is a reliable and practical solution for lifting any heavy vehicle.

Features:

• Fully pneumatic jack lifting system
• Fast and quiet pneumatic cylinder
• Low initial lifting point
• Long lifting stroke
• Safe lifting process with high stability level is ensured, which is achieved thanks to 4 steel wheels

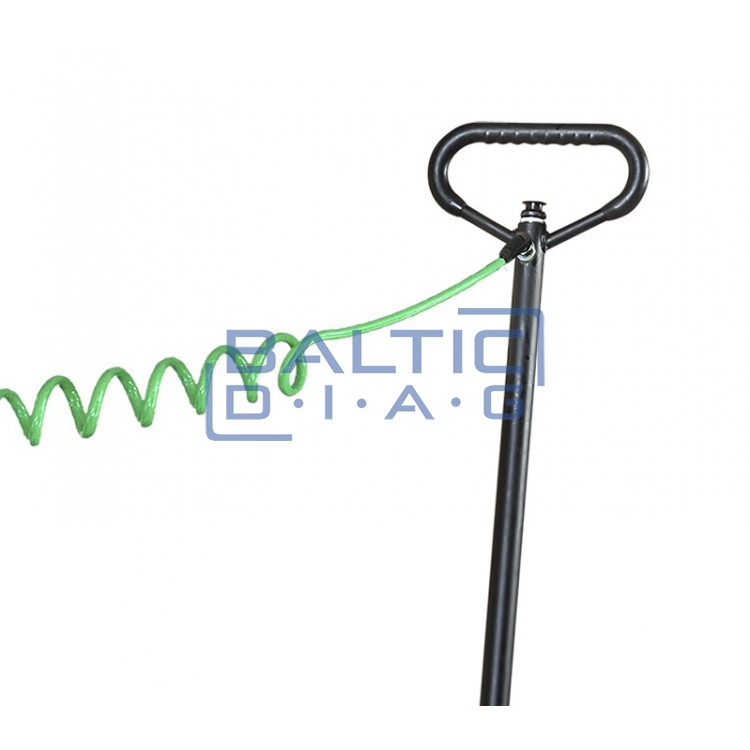

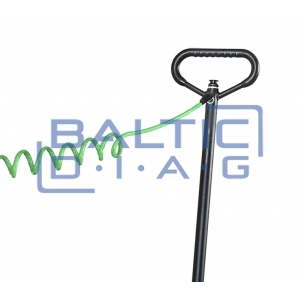

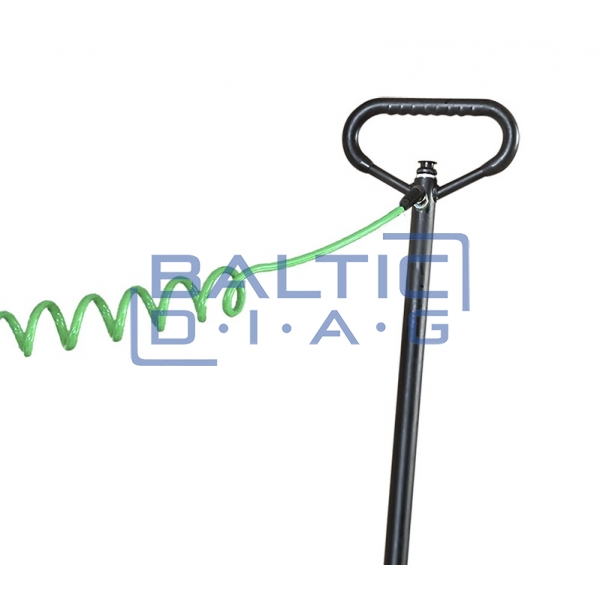

• The jack handle can be turned and locked at a 45° angle for easy maneuvering
• Complete with additional extension

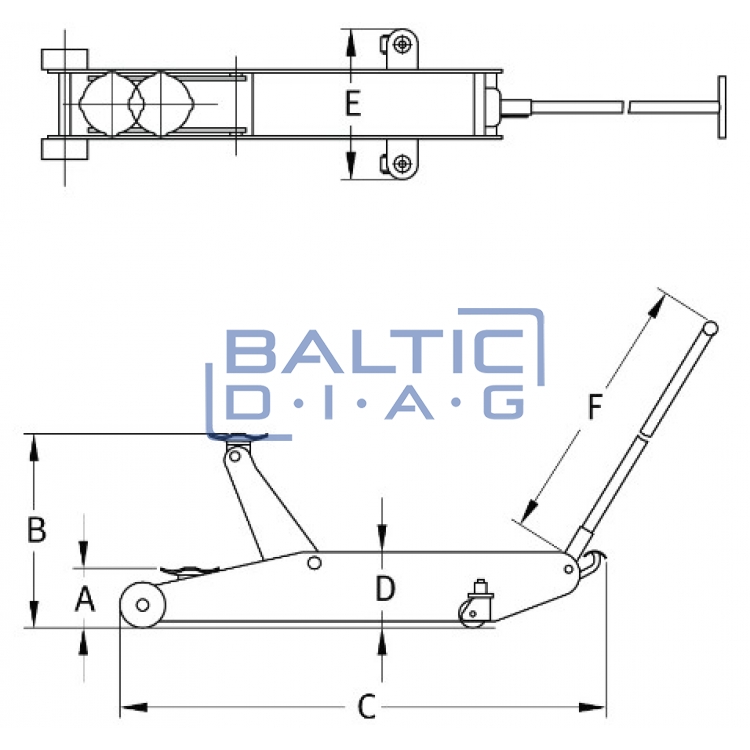

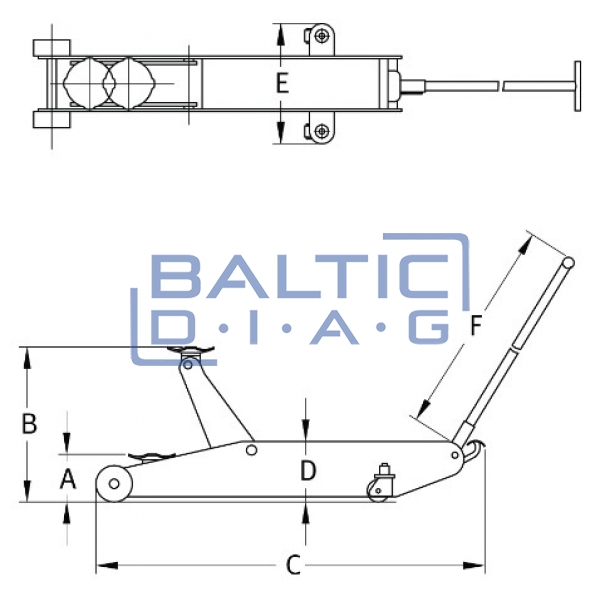

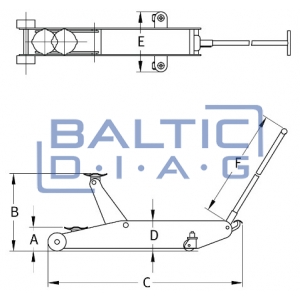

Technical parameters:

• Load capacity: 10 T
• Minimum height without extension (A): 150 mm
• Maximum lifting height with extension (B): 780 mm
• Lifting cylinder stroke C: 430 mm
• Jack length (C): 1380 mm
• Jack height (D): 225 mm
• Jack width (E): 390 mm
• Handle length (F): 1200 mm
• Height of additional extension: 200 mm
• Noise level: 70 dB
• Weight: 112 kg
