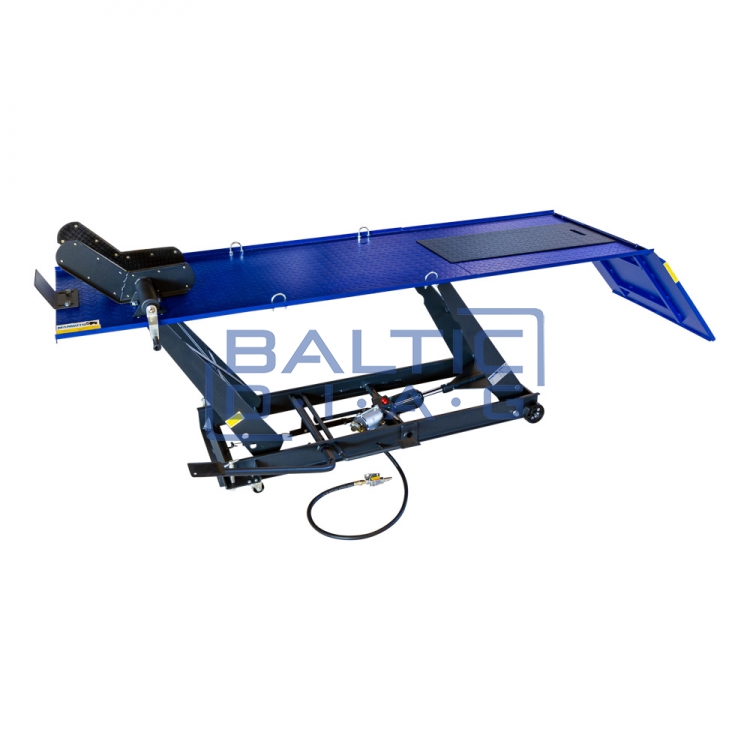

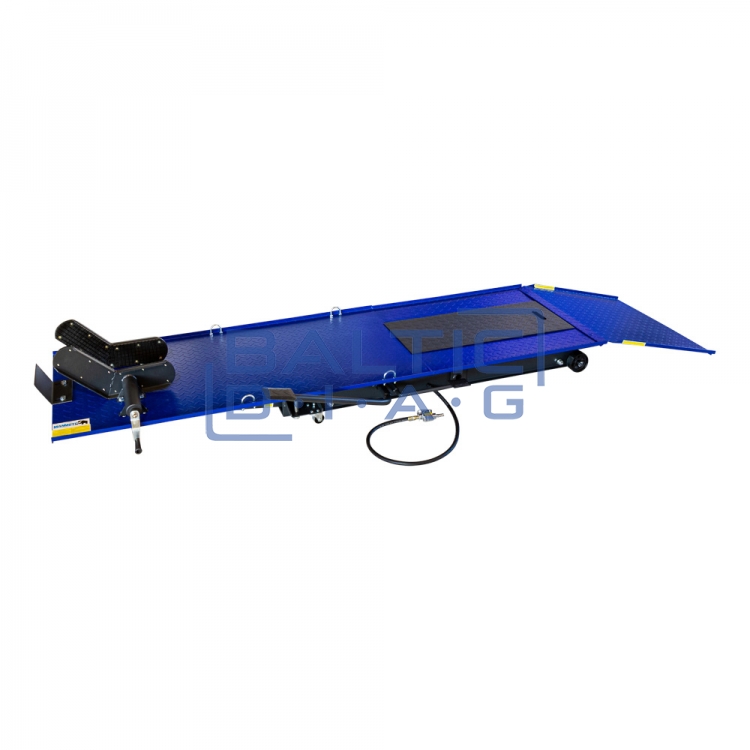

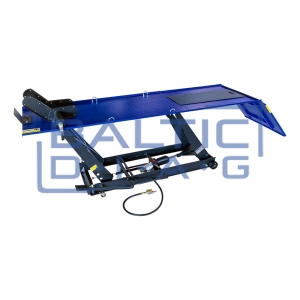

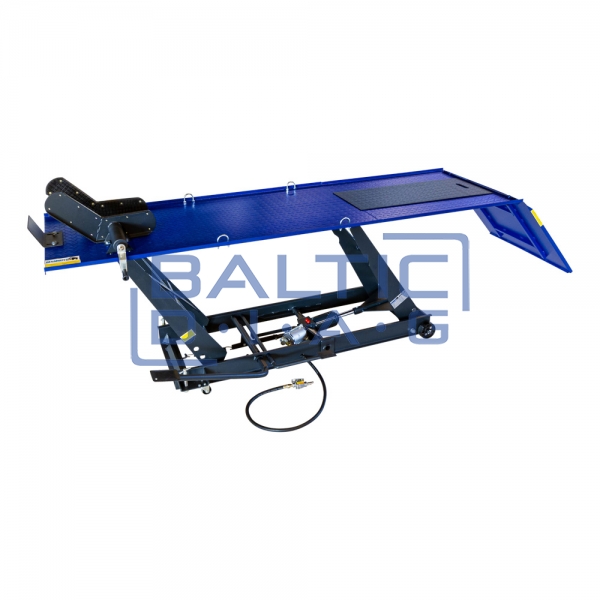

Pneumatic-hydraulic motorcycle lift Mammuth 450 kg

Pneumo-hydraulic motorcycle lift Mammuth 450 kg

Features:

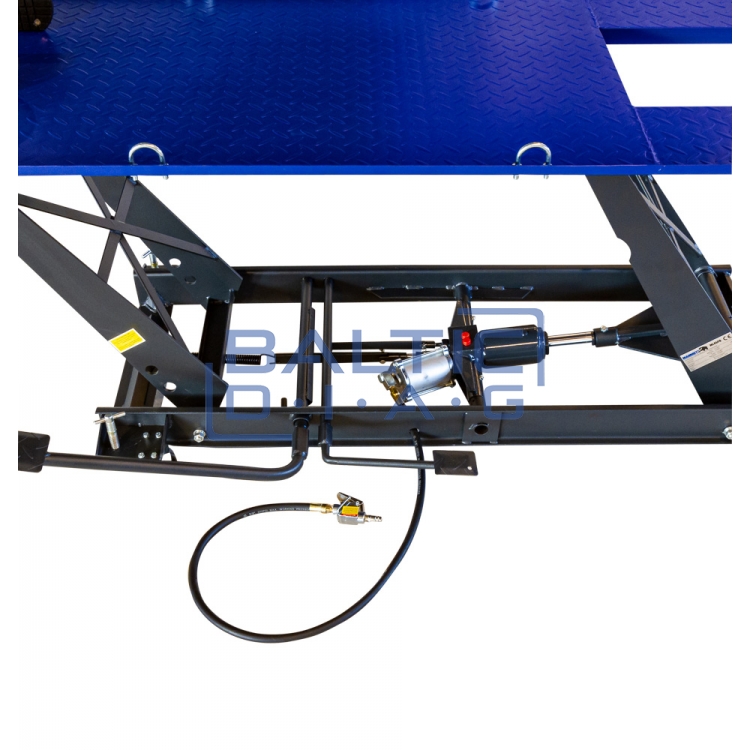

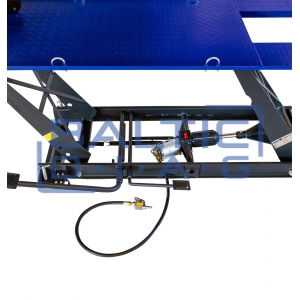

• Pneumatic lifting – effortless operation
• Non-slip platform – for additional grip
• Removable plate – easy access to the rear wheel
• Tie-down points – secure the motorcycle with straps
• Mobile – easy to transport
• Adjustable legs – for stable positioning
• Safety pin – prevents accidental lowering

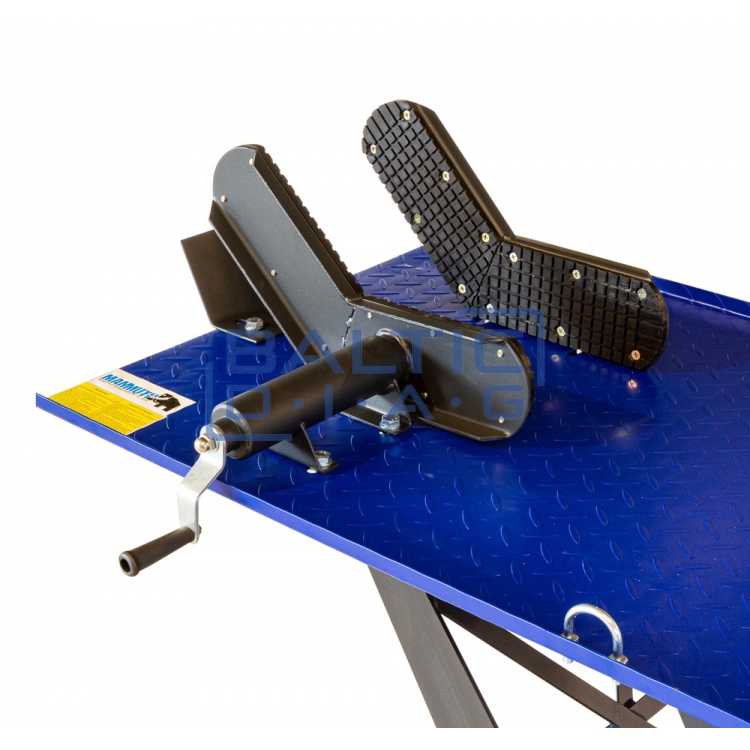

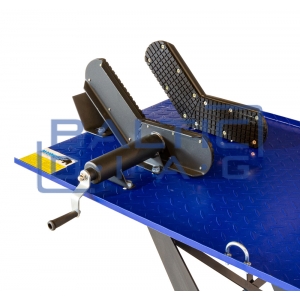

• Front wheel clamp – secure motorcycle fixation

Technical specifications:

• Material: steel
• Lifting capacity: 450 kg
• Minimum height: 170 mm
• Maximum height: 790 mm
• Platform length: 2200 mm
• Platform width: 680 mm
• Ramp length: 650 mm
• Front wheel clamp opening: max. 230 mm
• Lifting time: 50 s
• Air connector: 1/4 NPT
• Operating air pressure: 8 bar
• Air consumption: 120 L/min
• Wheel material: steel
• Front wheel diameter: ø89 mm
• Rear wheel diameter: ø43 mm
• Oil capacity: 0.38 L
• Oil type: OHCH15V

Product dimensions:

• Length: 2200 mm
• Width: 680 mm
• Height: 170 mm
• Weight: 127 kg

Package dimensions:

• Length: 2280 mm
• Width: 750 mm
• Height: 290 mm
• Weight: 152 kg
