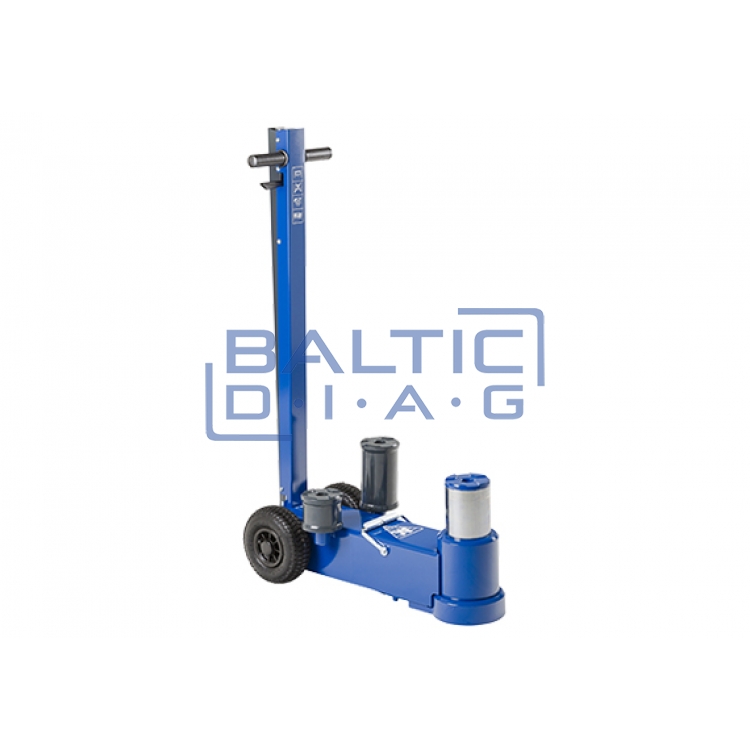

Pneumatic-hydraulic jack AC Hydraulic 65-1
Pneumatic-hydraulic jack AC Hydraulic 65-1

Pneumatic-hydraulic jack AC Hydraulic 65-1

  • SKU: BD13670
3,205.00 €

AC-HYDRAULIC AC-HYDRAULIC
Prices shown include tax
Add to Cart

Send Message

Description

Pneumatic-hydraulic jack AC Hydraulic 65-1


AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Pneumatic-hydraulic jack for heavy construction equipment

Description:

- Minimum height 245 mm with extremely high payload of 65 tonnes
- Designed for heavy, heavy commercial use
- Solid chrome plated cylinder for durability
- Integrated safety relief valve
- Manual emergency control for optimum safety during lifting and lowering
- Supplied with 2 extensions (100/200 mm) and pneumatic tires
- Manufacturer: Denmark
- Warranty: 3 years

Technical parameters:

- Lifting capacity: 65 tonnes
- Minimum height: 245 mm
- Maximum height: 380 mm
- Case length: 825 mm
- Handle length: 1160 mm
- Width: 200 mm
- Width (with wheels): 380 mm
- Required compressed air pressure: 9 - 12 bar
- Required compressed air flow: 350 L / min
- Weight: 95 kg

Additional equipment:

- F250: extension, 250 mm
- FW: nozzle for bolting and so on.
- FW1: nozzle for lifting under various axles
