Pneumatic-hydraulic jack AC Hydraulic 50-3
Pneumatic-hydraulic jack AC Hydraulic 50-3
Pneumatic-hydraulic jack AC Hydraulic 50-3
Pneumatic-hydraulic jack AC Hydraulic 50-3
Pneumatic-hydraulic jack AC Hydraulic 50-3

Pneumatic-hydraulic jack AC Hydraulic 50-3

  • SKU: BD13650
3,025.00 €

AC-HYDRAULIC AC-HYDRAULIC
Prices shown include tax
Add to Cart

Send Message

Description

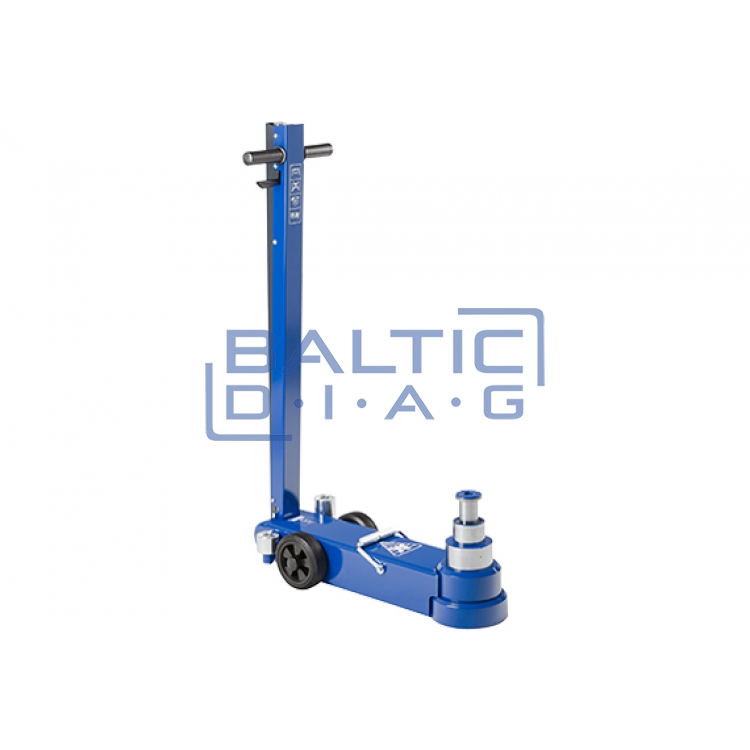

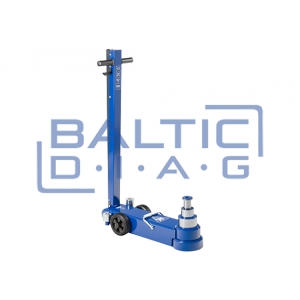

Pneumatic-hydraulic jack AC Hydraulic 50-3


AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Three-step pneumatic-hydraulic jack for low buses and other low-floor vehicles

Description:

- Minimum height of 150 mm combined with high carrying capacity
- Telescopic cylinders provide excellent maximum lift height along with low minimum height
- Designed for heavy, heavy commercial use
- Integrated safety relief valve
- Manual emergency control for optimum safety during lifting and lowering
- Supplied with two extensions (50/100 mm)
- Manufacturer: Denmark
- Warranty: 3 years

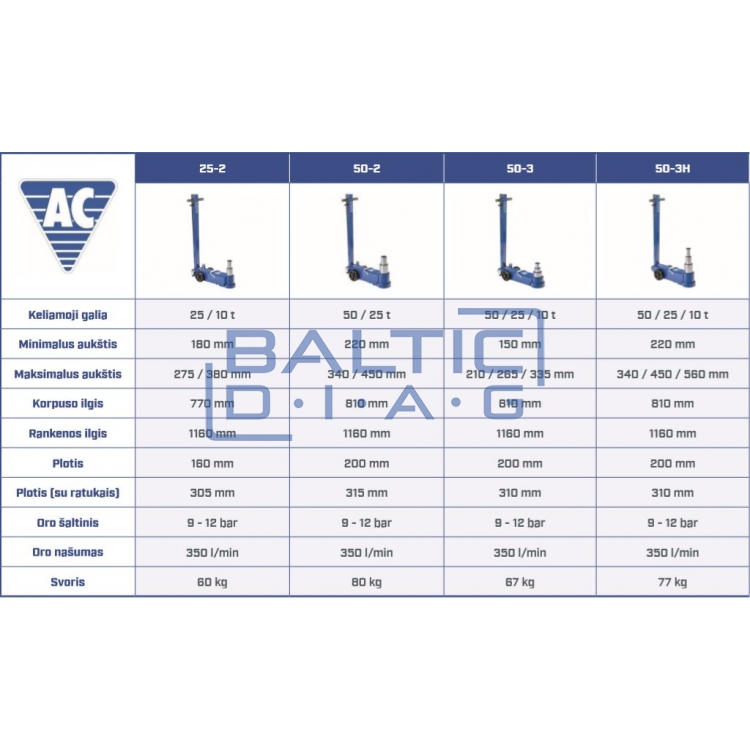

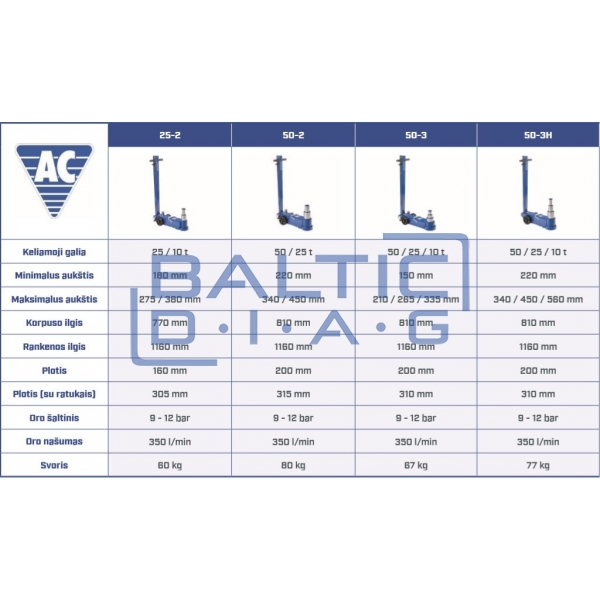

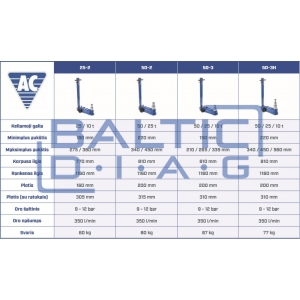

Technical parameters:

- Lifting capacity: 50/25/10 tonnes
- Minimum height: 150 mm
- Maximum height: 210/265/335 mm
- Body length: 810 mm
- Handle length: 1160 mm
- Width: 200 mm
- Width (with wheels): 310 mm
- Required compressed air pressure: 9 - 12 bar
- Required compressed air flow: 350 L / min
- Weight: 67 kg

Additional equipment:

- F250: extension, 250 mm
- FW: nozzle for bolting and so on.
- FW1: nozzle for lifting under various axles
