Pneumatic hydraulic jack 50T - 30T - 15T
Pneumatic hydraulic jack 50T - 30T - 15T

Pneumatic hydraulic jack 50T - 30T - 15T

  • SKU: BD874100
1,560.90 €

Prices shown include tax

Send Message

Description

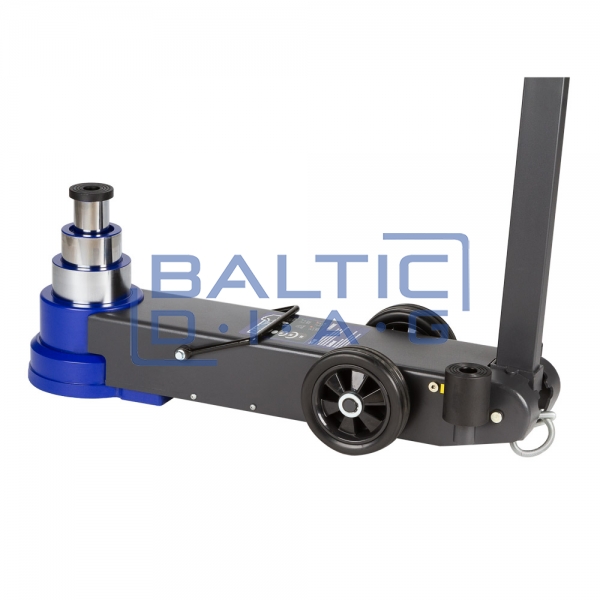

Pneumatic hydraulic jack 50T - 30T - 15T
Mammuth, The Netherlands; warranty 12 months
  • The Mammuth series pneumatic hydraulic hoists are suitable for intensive industrial use.
  • With these air lifts, safe lifting of trucks, buses, trailers and machines becomes a simple job.
  • Due to its sophisticated design, this extra-high pneumatic lift has the following useful features:
  • Safety switch: When the joystick is released, the socket switches off immediately
  • Optimal stability due to the wide base
  • Hard chrome-plated cylinders, both internal and external
  • The cylinders are equipped with sealing rings to prevent oil leakage
  • Safety overload valve
  • Reducing valve
  • large solid rubber wheels
Specifications:
  • Capacity - 50T / 30T / 15T
  • The minimum lifting height is 149 mm
  • Maximum lifting height without adapters - 313 mm
  • Maximum lifting height with adapters - 433 mm
  • Step 1 - 50t - 51 mm, height from the floor - 200 mm
  • Step 2 - 30t - 50 mm, height from the floor - 250 mm
  • Step 3 - 15t - 63 mm, height from the floor - 313 mm
  • Adapters - 75 mm and 45 mm
  • Average air consumption = 300l / min
  • Working pressure - 9 - 12 bar
  • Coupling - plug connection euroline 1/4 "
