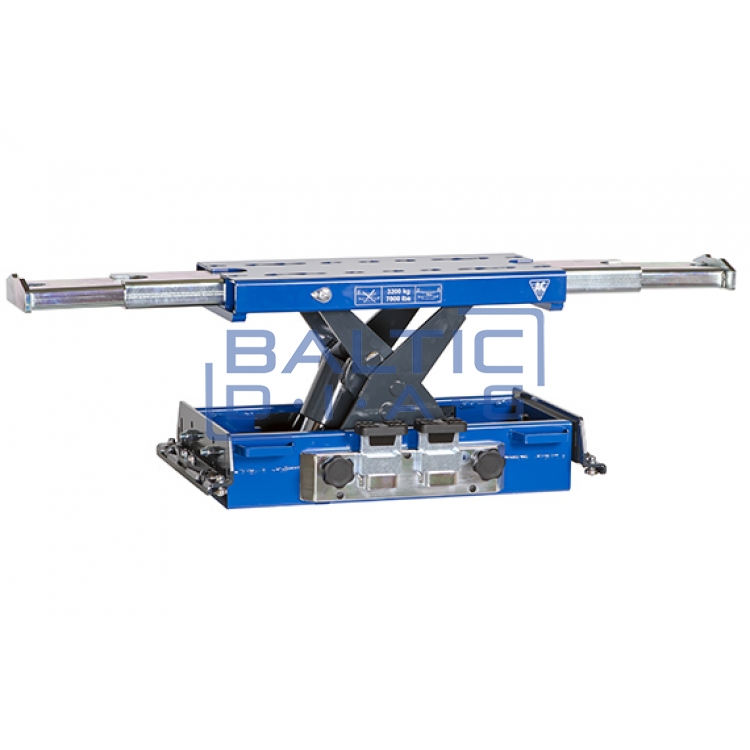

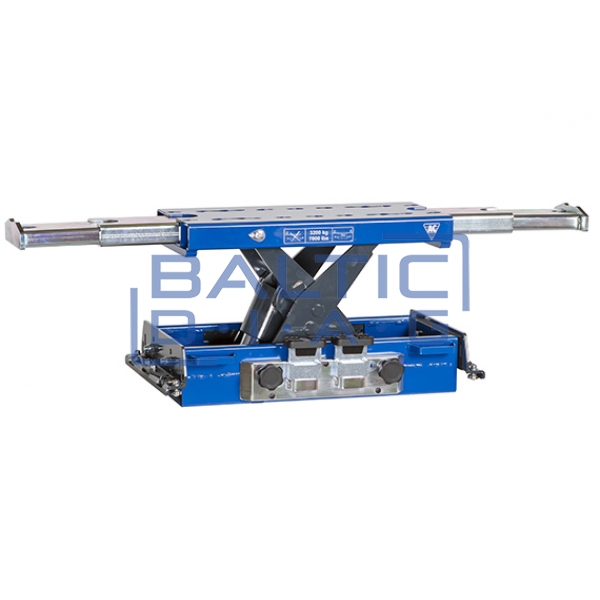

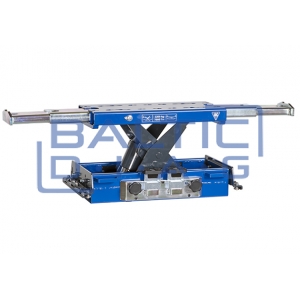

Pneumatic-hydraulic axle lift SD32PHL


AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Pneumatic-hydraulic axle lift for cars and vans

Description:

- 3.2 tons lift capacity for optimum use in combination with 5-6 tons lift capacity
- Low lift height of 230 mm
- Flexible support beam can be extended up to 1610 mm
- Unique height adjustable armrest system - Designed to fit all modern lifts and pits
- Two-hand lowering operation with emergency release, automatic safety locking device and overload valve for optimum safety
- Supplied with 3 extension kits (10/40/85 mm) and rubber cushion for body protection
- Manufacturer: Denmark
- Warranty: 3 years

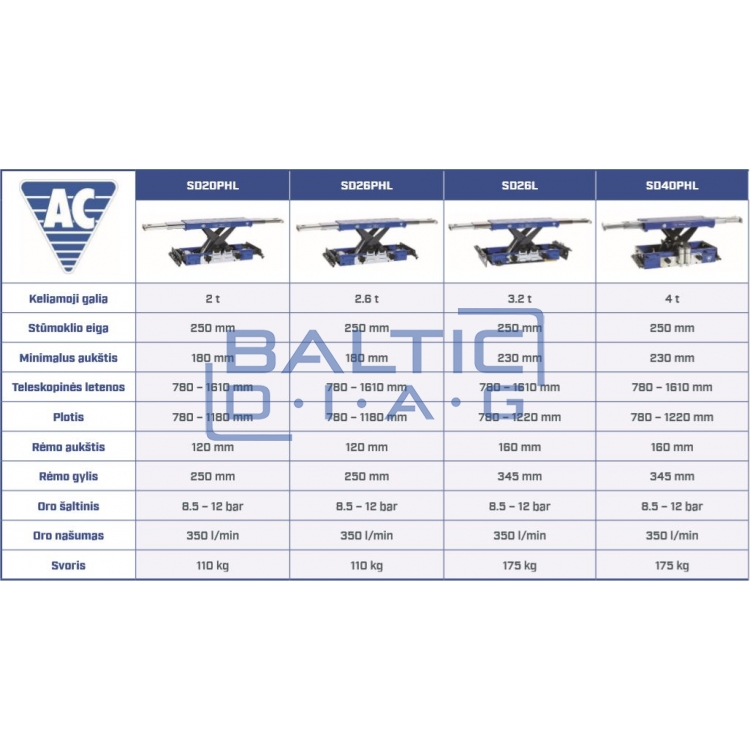

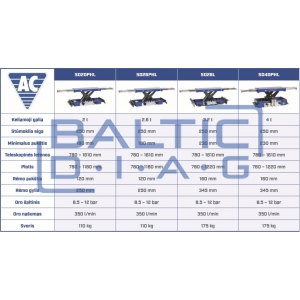

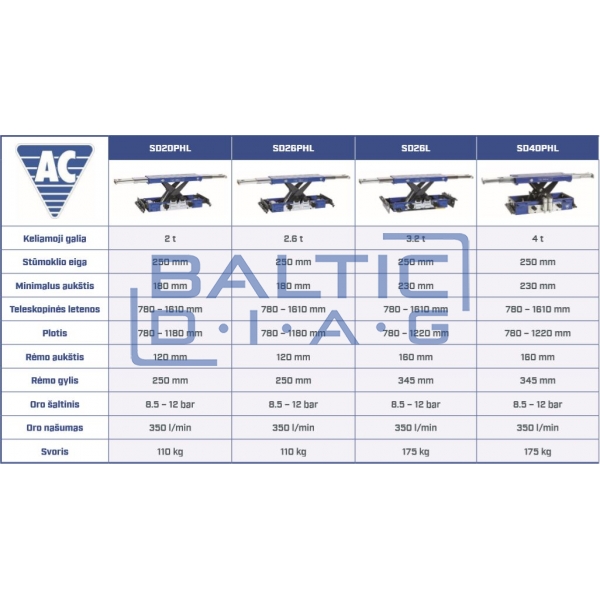

Specification:

- Lifting capacity: 3.2 tonnes
- Lifting stroke: 250 mm
- Minimum height: 230 mm
- Length of supports: 780 - 1610 mm
- Lift width: 780 - 1220 mm
- Construction height: 160 mm
- Construction depth: 345 mm
- Required compressed air pressure: 8.5 - 12 bar
- Required compressed air flow: 350 L / min
- Weight: 175 kg

Additional equipment:

- HSD: Pneumatic connection kit
- FSD1: 130 mm height extensions (Requires 2 pcs)
- FSD2: Rubber support 40 mm (Requires 2 pcs.)
- FSD3: Rubber support 80 mm (Requires 2 pcs.)
- FSD6: Height adjustable saddle (32 - 92 mm) (Requires 2 pcs)
- FSD7: Height extension 60 mm (Requires 2 pcs.)
- GS1: Rubber Pad for FSD6 (Requires 2 pcs)
- GS2: 10mm Rubber Pad (Requires 2pcs)
