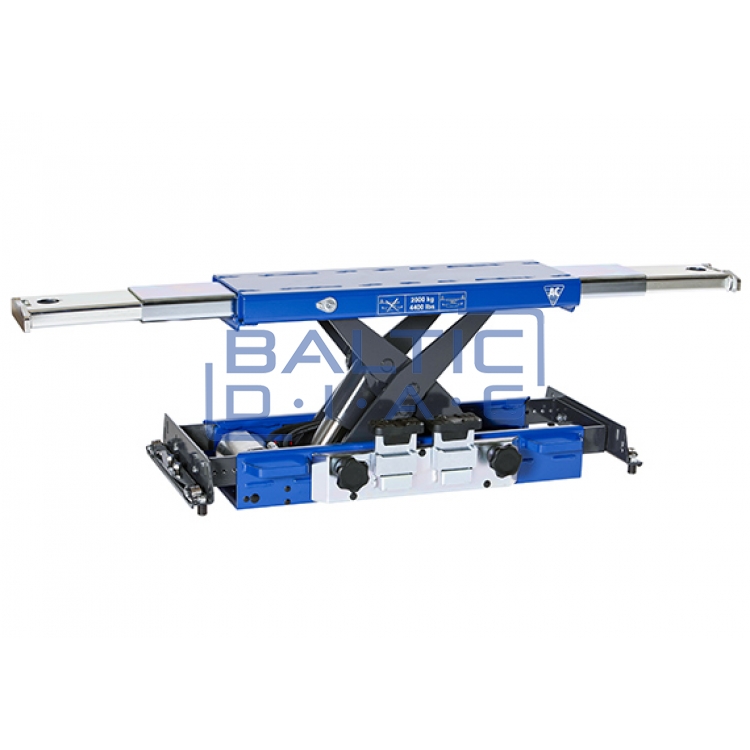

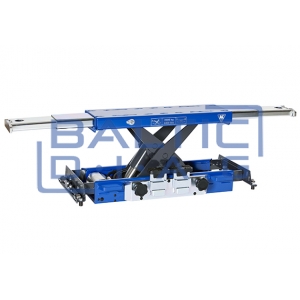

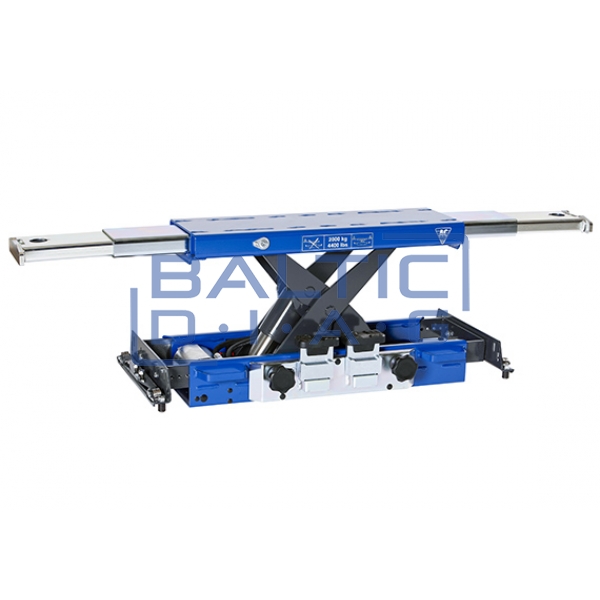

Pneumatic-hydraulic axle lift SD26PHL

AC-Hydraulic, Denmark; warranty 3 years for hydraulics and 10 years for frame parts

Pneumatic-hydraulic axle jack designed for cars and vans Perfect for maintenance and repair tasks in service centers and workshops

Features

• Fast and efficient lifting with a silent pump
• Low minimum height of 180 mm suitable for low-ground-clearance vehicles
• Flexible support beam extendable up to 1610 mm
• Height-adjustable support system compatible with modern lifts and pits
• Two-hand lowering operation with emergency release automatic safety locking system and overload protection valve
• Supplied with 3 extension kits (10/40/85 mm) and a rubber pad for body protection

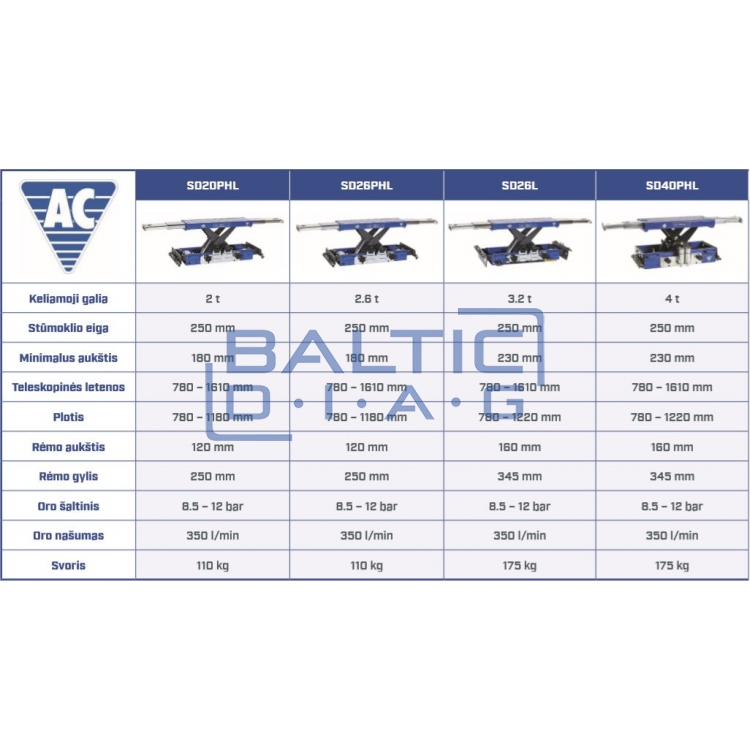

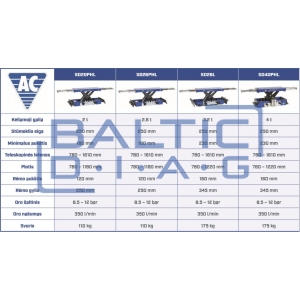

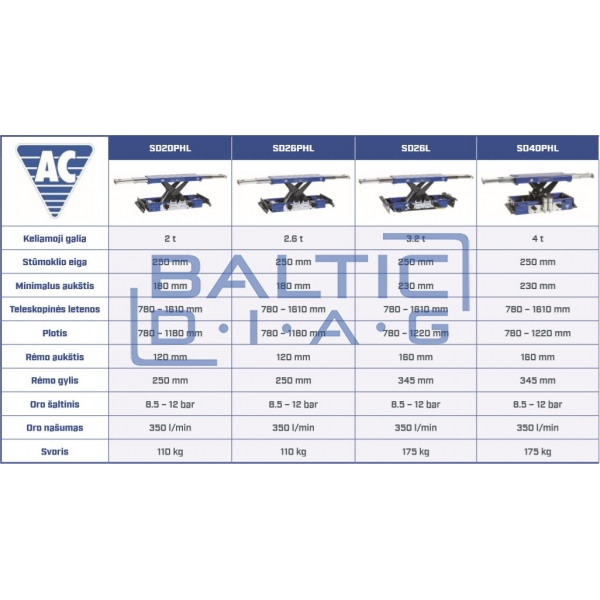

Specifications

• Lifting capacity 2.6 tons
• Lifting stroke 250 mm
• Minimum height 180 mm
• Support beam length 780–1610 mm
• Jack width 780–1180 mm
• Structure height 120 mm
• Structure depth 250 mm
• Required compressed air pressure 8.5–12 bar
• Required compressed air flow 350 L/min
• Weight 110 kg

Additional equipment

• HSD Pneumatic connection kit
• FSD1 Height extensions 130 mm (2 units required)
• FSD2 Rubber support 40 mm (2 units required)
• FSD3 Rubber support 80 mm (2 units required)
• FSD5 Saddle with thread (106–240 mm) (2 units required)
• FSD6 Adjustable saddle (32–92 mm) (2 units required)
• FSD7 Height extension 60 mm (2 units required)
• GS1 Rubber pad for FSD6 (2 units required)
• GS2 Rubber pad 10 mm (2 units required)
