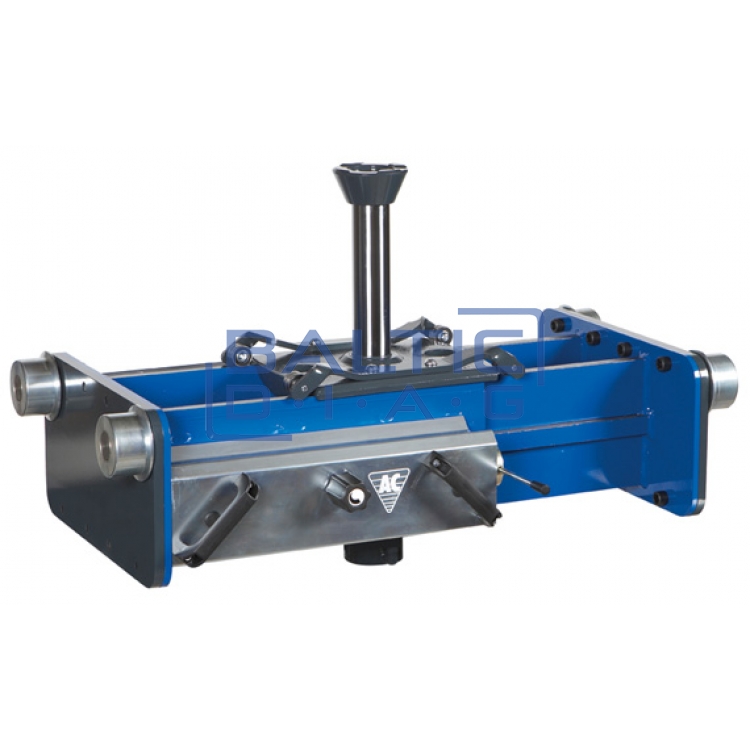

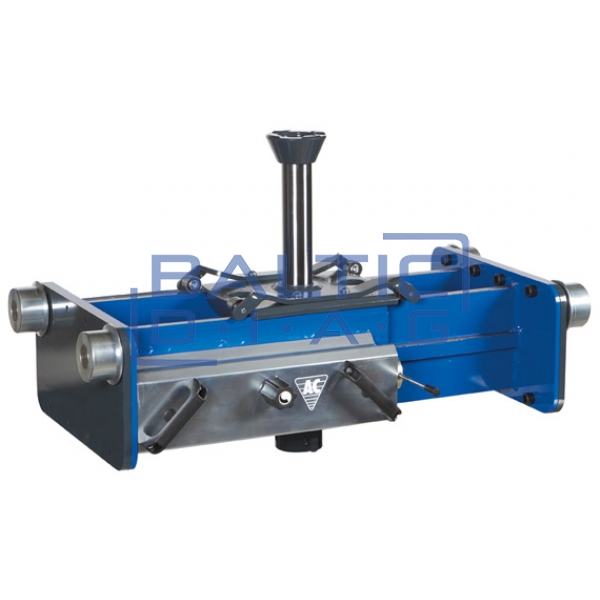

Pneumatic-hydraulic axle lift AC Hydraulic FL160-1

AC-Hydraulic, Denmark; warranty 3 years for hydraulics and 10 years for frame parts

Standard pneumatic-hydraulic single-cylinder axle jack designed for trucks Robust design and versatility ensure reliable and safe operation

Features

• Fast and precise lifting with a rapid movement cylinder
• Simple modern design with a control panel and ergonomic working height
• Adjustable frame suitable for use with various lifts
• Frame height adaptable to customer requirements
• Movable cylinder ensures versatile use
• Emergency release and overload valve for optimal safety
• Supplied with 1 x 100 mm extension

Specifications

• Lifting capacity 16 tons
• Piston stroke 200 mm
• Minimum height 380 mm
• Maximum height 580 mm
• Jack width 590 - 1410 mm
• Jack depth 665 mm
• Required compressed air pressure 8 - 12 bar
• Required compressed air flow 350 L/min
• Weight 200 kg
