Platform scissor lift for heavy-duty vehicles Stertil-Koni SKYLIFT SKY.250

Platform Scissor Lift for Heavy-Duty Vehicles Stertil-Koni SKYLIFT SKY.250

Country of origin: Netherlands, warranty period – 24 months

Base version: SKY250 ebright, platform length 7 m / 23' (including 2 sets of short drive-on/off ramps)

Available platform lengths:

• SKY250 ebright, platform length 8 m / 26' (including 2 sets of short drive-on/off ramps)
• SKY250 ebright, platform length 9 m / 30' (including 2 sets of short drive-on/off ramps)
• SKY250 ebright, platform length 10 m / 33' (including 2 sets of short drive-on/off ramps)
• SKY250 ebright, platform length 12 m / 40' (including 2 sets of short drive-on/off ramps)
• SKY250 ebright, platform length 14.5 m / 48' (including 2 sets of short drive-on/off ramps)

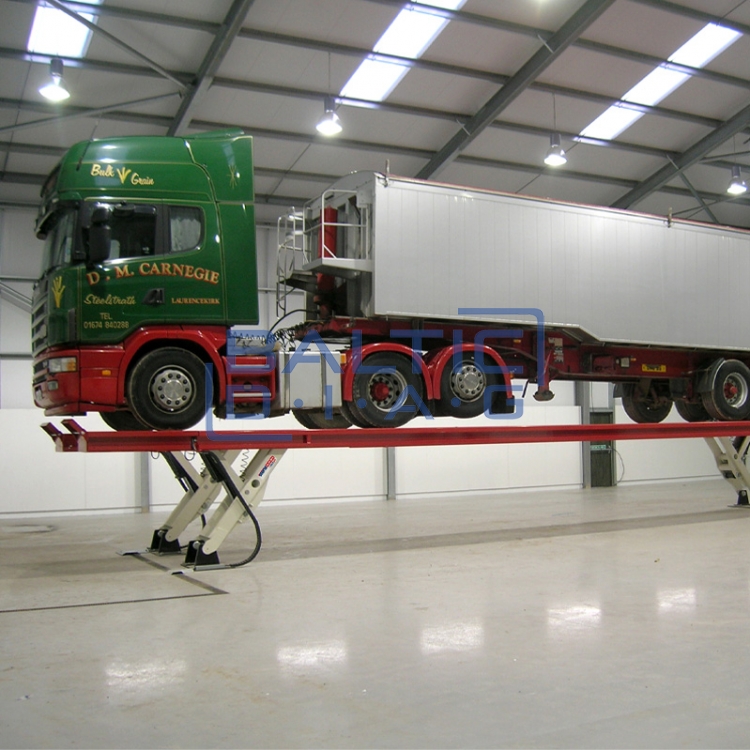

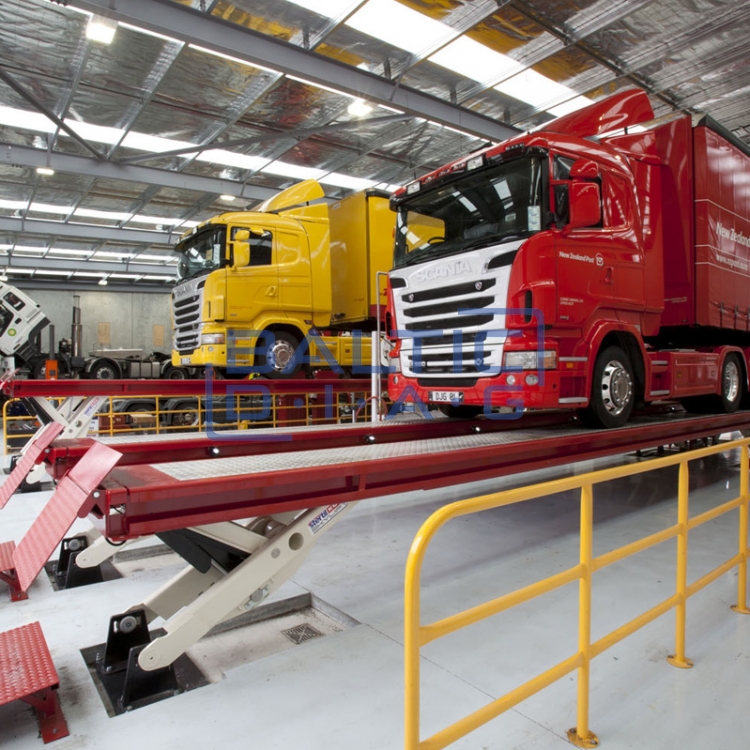

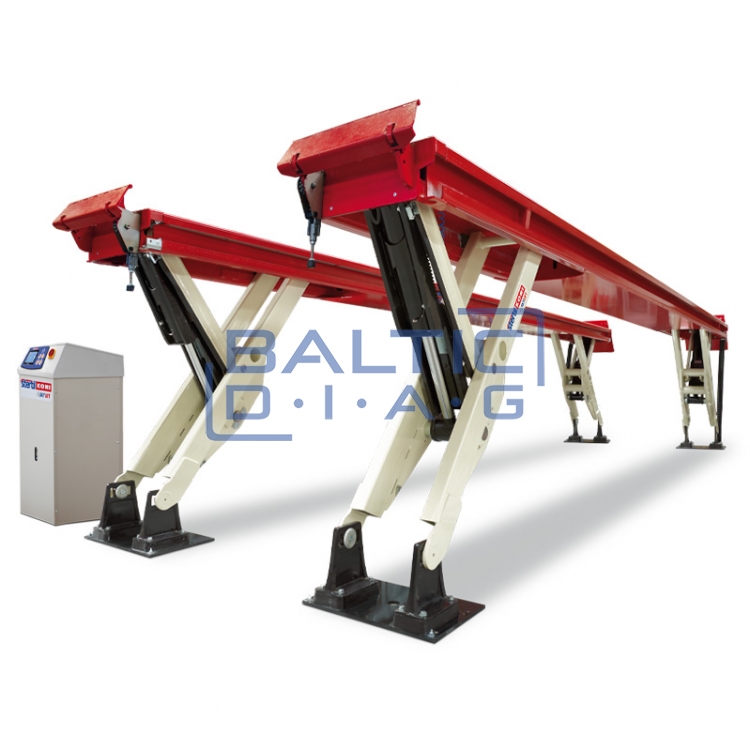

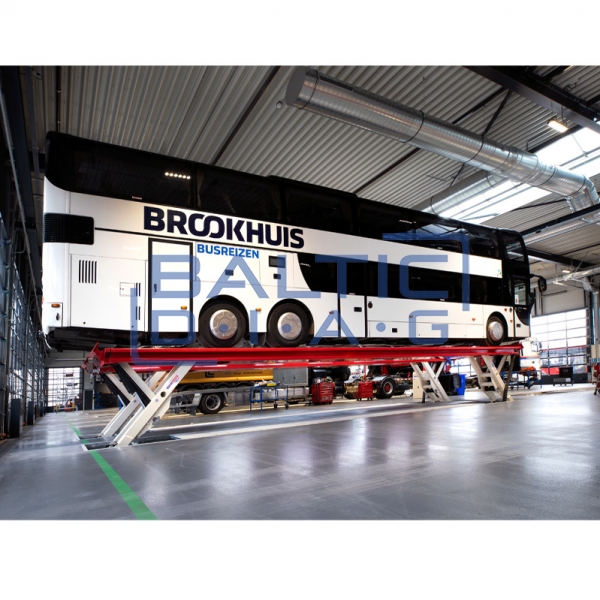

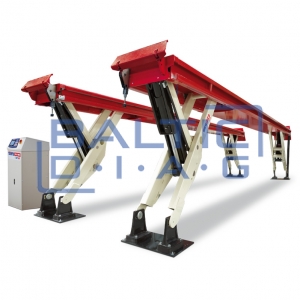

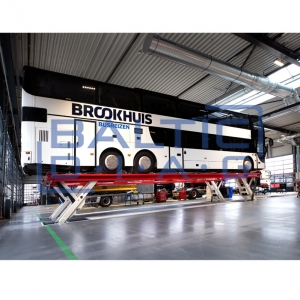

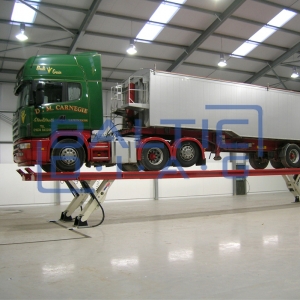

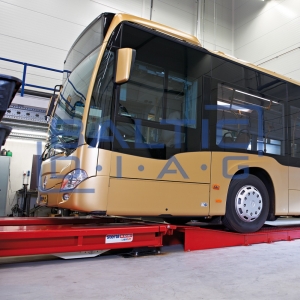

The Stertil-Koni SKYLIFT SKY.250 is a highly robust and advanced platform scissor lift designed for lifting heavy-duty vehicles such as trucks, buses, and special-purpose machinery. It offers a lifting capacity of up to 25,000 kg. The innovative Y-shaped construction and four independent support legs ensure maximum safety and optimal use of workspace. The lift can be configured in several mounting options – surface-mounted, flush-mounted, semi-flush-mounted, or moisture-resistant washbay version. This makes it an ideal solution for professional workshops requiring flexibility, efficiency, and reliability.

Features:

• Hydraulic lifting system with automatic synchronization and virtually maintenance-free design
• Flush-mounted version available with automatic recess cover plates – safe and unobstructed access
• “Ebright SMART Control” system with 7" full-color touchscreen – intuitive control and PIN code protection
• Anti-slip surface: 3-component epoxy coating or aluminum plates
• Quiet operation, overload protection, and automatic mechanical locking
• Synchronization option for two lifts – up to 30 m length and 70 t total lifting capacity
• Easy and quick installation – only 16 mounting points required
• Optional accessories: LED lighting, jacking beams, wheel alignment turntables
• Extendable platforms available to adapt the lift to your evolving needs

Technical specifications:

• Operating principle: Hydraulic
• Lifting capacity: 25,000 kg
• Lifting height: 1,750 mm
• Lifting time: 90 s
• Available platform lengths: 7 / 8 / 9 / 10 / 12 / 14.5 meters
• Motor power: 9 kW

AVAILABLE PLATFORM LIFT CONFIGURATIONS:

Flush-mounted

• This installation version ensures completely unobstructed access – platforms sit flush with the workshop floor, ideal for low-clearance vehicles. Lifting height reaches 1,750 mm. Optional automatic cover plates eliminate the need for drive-on ramps, saving space.

Semi-flush-mounted

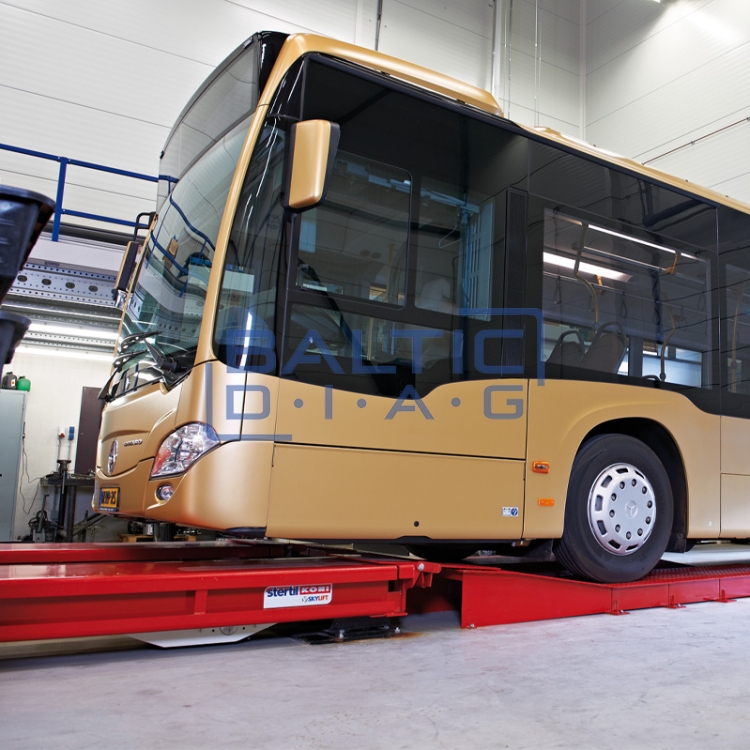

• This special version features an ultra-low drive-on height of just 260 mm, achieved through 90 mm recesses for the support legs. A great solution when easy access is needed, but full flush mounting isn’t possible.

Surface-mounted

• The surface-mounted version requires no construction work. It allows for fast and simple installation while providing ample working space for mechanics.

Moisture-resistant (Washbay)

• This version is designed for use in wet environments or outdoor settings. The platforms are hot-dip galvanized and coated with an anti-corrosion layer, while the control unit is made of stainless steel. Perfect for car washes or water-intensive maintenance areas.

Independent Mechanical Locks

• Each support leg is equipped with its own mechanical safety lock. This provides the highest level of safety, even in the event of a hydraulic system failure. Mechanics can work safely beneath the platform.

Reverse Roll-off Protection

• A special barrier prevents the vehicle from accidentally rolling backward off the platform. This safety feature is especially important when working with buses and trucks.

Modular Drive-on Ramp

• A segmented ramp system that can be adapted according to the vehicle type and workshop layout. Ensures quick and easy access to the platform, especially with surface-mounted versions.

Ebright Smart Control System

• The 7-inch color touchscreen control panel allows intuitive and safe lift operation. Can be used even when wearing gloves. PIN code protection prevents unauthorized access.
