Platform scissor lift for heavy-duty vehicles Stertil-Koni SKYLIFT SKY.200

Platform Scissor Lift for Heavy-Duty Vehicles Stertil-Koni SKYLIFT SKY.200

Country of origin: Netherlands, warranty period – 24 months

Base version: Platform length 7 m / 23' (including two sets of short drive-on/off ramps)

Available platform lengths:

• SKY200 ebright, platform length 8 m / 26' (including two sets of short drive-on/off ramps)
• SKY200 ebright, platform length 9 m / 30' (including two sets of short drive-on/off ramps)
• SKY200 ebright, platform length 10 m / 33' (including two sets of short drive-on/off ramps)
• SKY200 ebright, platform length 12 m / 40' (including two sets of short drive-on/off ramps)
• SKY200 ebright, platform length 14.5 m / 48' (including two sets of short drive-on/off ramps)

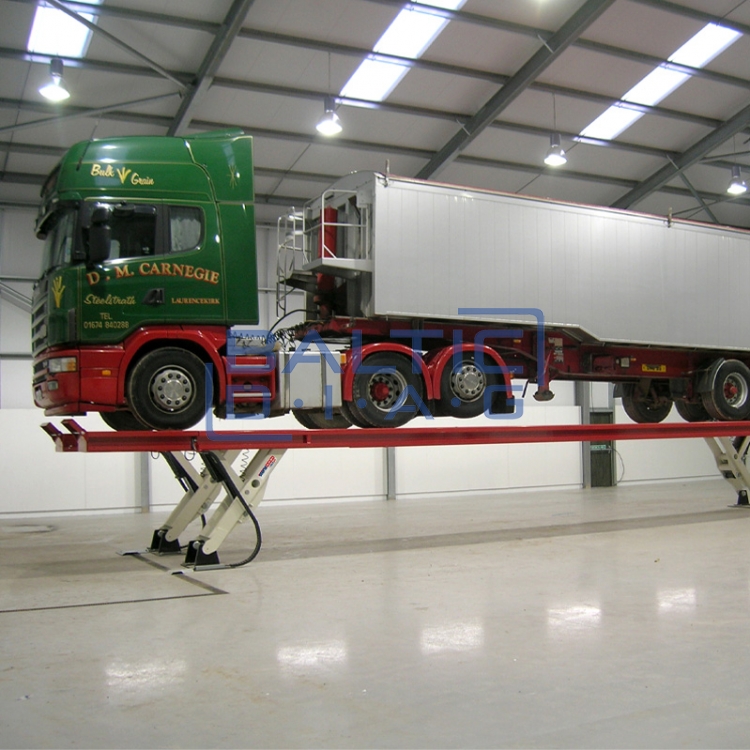

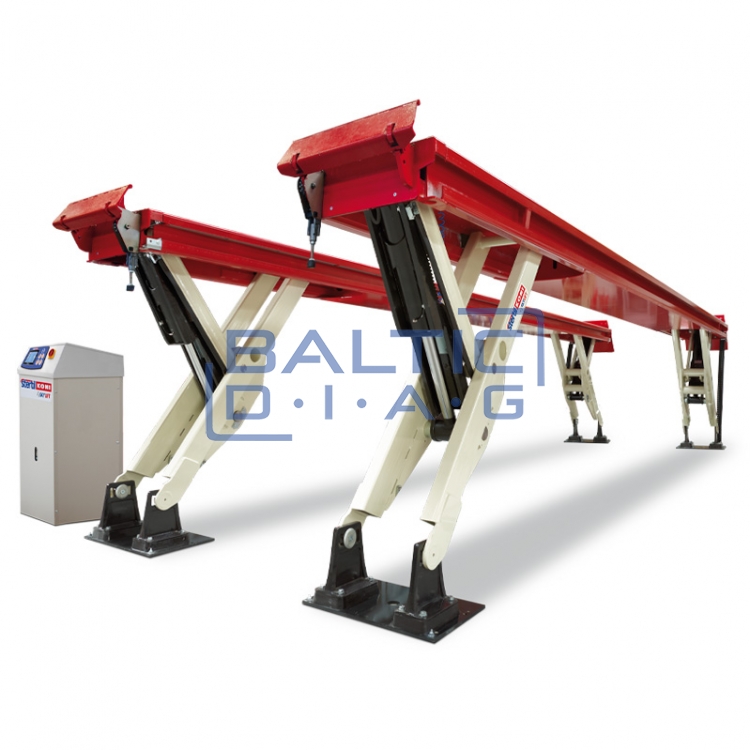

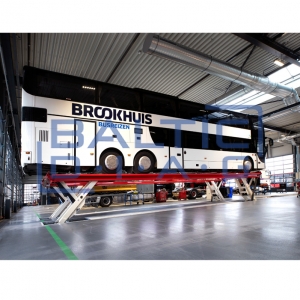

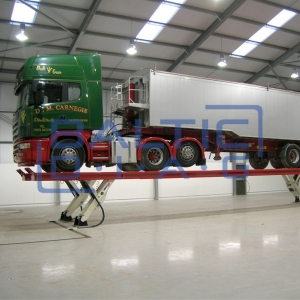

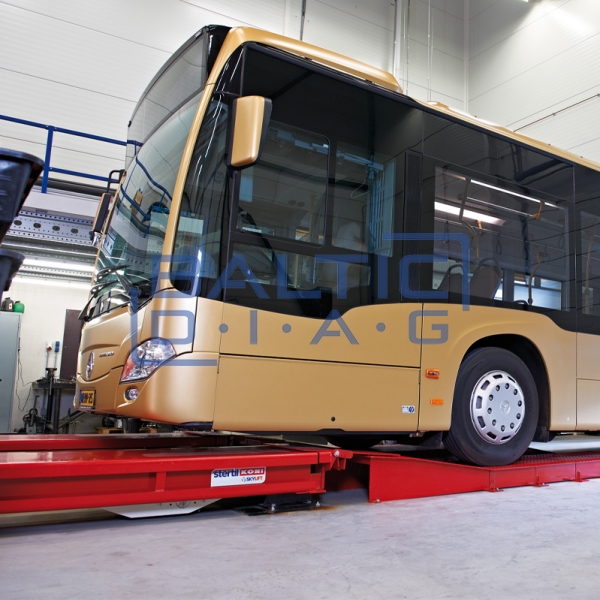

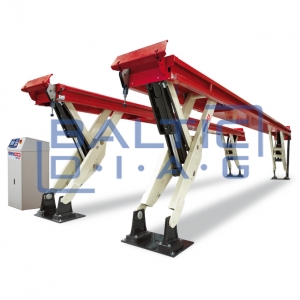

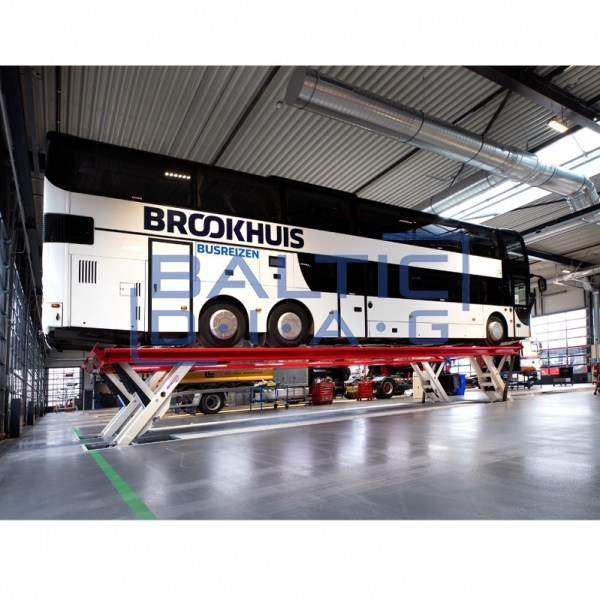

The Stertil-Koni SKYLIFT SKY.200 is a platform lift designed for heavy-duty vehicles with a lifting capacity of up to 20,000 kg. Its innovative Y-shaped design and four independent support legs ensure maximum space efficiency and safety. This lift is ideal for maintenance and repair work on trucks, buses, and special-purpose vehicles. It can be installed as a surface-mounted, flush-mounted, semi-flush-mounted, or weather-resistant washbay version, making it a perfect fit for workshops that require versatility, reliability, and efficiency.

Features:

• Hydraulic lifting system with automatic synchronization, requiring minimal maintenance
• Flush-mounted version with automatic cover plates – for safe and obstacle-free access
• “Ebright SMART Control” intelligent control system with a 7” touchscreen – intuitive and PIN code protected
• Anti-slip surface coating with durable epoxy layer or optional aluminum plates
• Quiet operation, automatic locking, and overload protection
• Optional installation of LED lighting, jacking beams, or alignment turntables
• Dual lift synchronization possible – up to 30 meters long and a combined lifting capacity of 70 t

Technical specifications:

• Operating principle: Hydraulic
• Lifting capacity: 20,000 kg
• Lifting height: 1,750 mm
• Lifting time: 90 seconds
• Platform lengths: 7 / 8 / 9 / 10 / 12 / 14.5 meters
• Motor power: 9 kW

AVAILABLE PLATFORM LIFT TYPES:

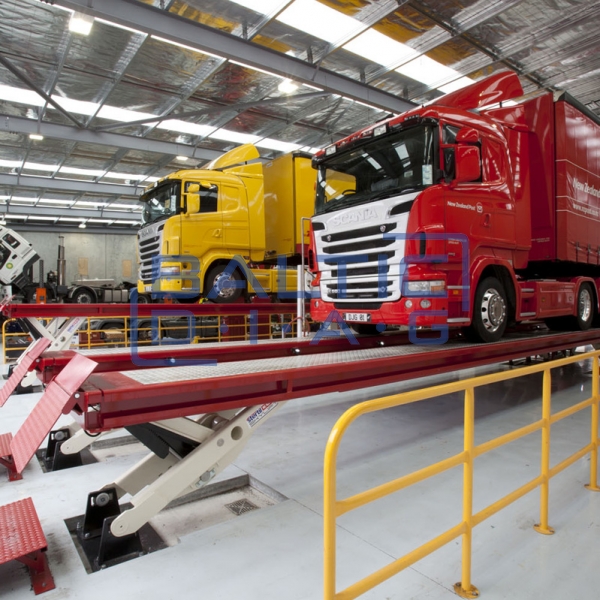

Flush-mounted

• This version offers completely unobstructed access – the platforms are flush with the workshop floor, ideal for low-clearance vehicles. Lifting height reaches 1,750 mm. Automatic cover plates can be installed to eliminate the need for drive-on ramps, saving space.

Semi-flush-mounted

• This special version features an extremely low drive-on height of just 260 mm, achieved through 90 mm deep recesses for the supports. Ideal when easy access is needed but full flush installation is not feasible.

Surface-mounted

• This version is installed without any preparatory construction work. It offers quick and convenient installation while providing ample working space for mechanics.

Weather-resistant (Washbay)

• Designed for use in wet or outdoor environments. The platforms are hot-dip galvanized and coated with anti-corrosion protection, and the control panel is made of stainless steel. Perfect for vehicle wash bays or outdoor maintenance areas.

Independent Mechanical Locks

• Each support leg is equipped with its own mechanical safety lock. This ensures the highest level of safety, even in the event of hydraulic system failure. Mechanics can work safely beneath the platform.

Reverse Roll-off Protection

• A special barrier prevents the vehicle from unintentionally rolling backward off the platform. This safety feature is especially important when working with buses and trucks.

Modular Drive-on Ramp

• Segmented ramp system that can be adapted to suit the needs of various vehicle types. Ensures easy and quick access to the platform, especially with surface-mounted versions.

Ebright Smart Control System

• A 7-inch color touchscreen control panel allows intuitive and secure lift operation. It can even be operated while wearing gloves. The PIN code access system prevents unauthorized use.
