Platform scissor lift for commercial vehicles Stertil-Koni ECOLIFT 60

Platform Scissor Lift for Commercial Vehicles Stertil-Koni ECOLIFT 60

Country of origin: Netherlands, warranty period – 24 months

Available Versions:

• ECOLIFT 90 – 40 TONS
• ECOLIFT 120 – 54 TONS

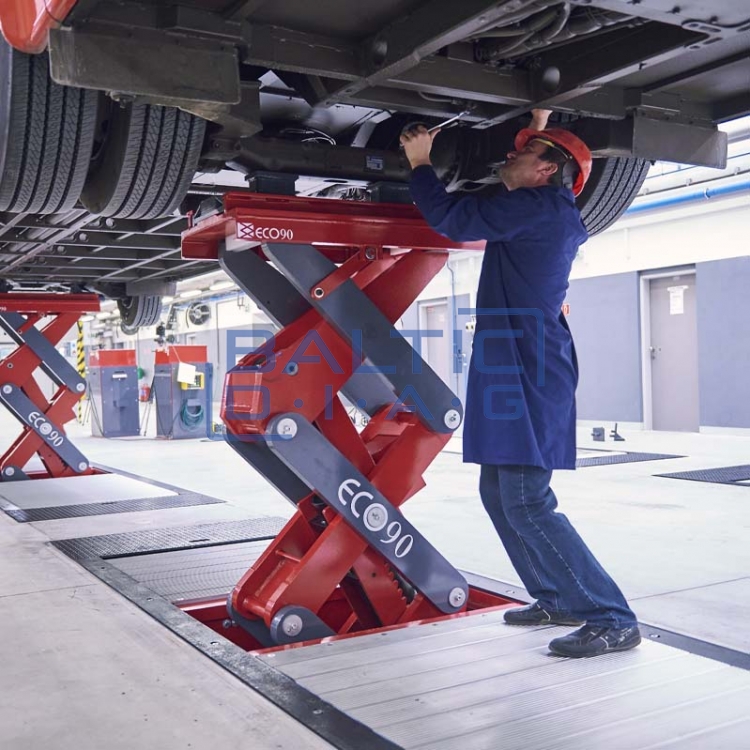

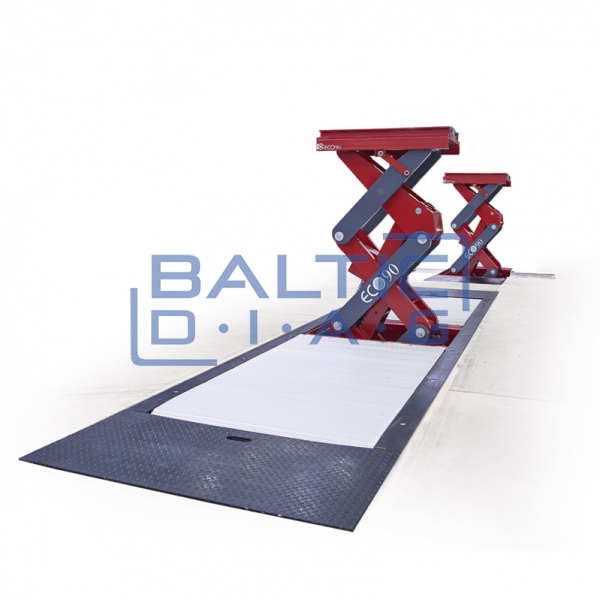

The Stertil-Koni ECOLIFT is the first patented ultra-shallow in-ground scissor lift for commercial vehicles that does not require any concrete-embedded components for installation. This lift is ideal for workshops that require a fast, efficient, and economical lifting solution. It is available in 2-, 3-, or 4-scissor configurations, offering lifting capacities of 27, 40, and 54 tons respectively (13.5 t per scissor). Thanks to its drop-in/bolt-in design, the ECOLIFT is not only quick to install but can also be relocated to a new site if needed.

Features:

• Ultra-shallow installation depth – only 870 mm, making it ideal for challenging conditions (bedrock, high water tables)
• Fully flush system – enables wheel-free vehicle maintenance; the platform is fully level with the workshop floor
• Continuous Recess system – allows the movable mechanism to recess below floor level anywhere in its travel range, perfect for low-floor buses
• Ebright Smart Control system – 7” color touchscreen with intuitive menus, real-time lifting process information, and PIN code protection
• Automatic Wheelbase Positioning (AWBP) – enables pre-programming of multiple lifting positions for different vehicles
• Aluminum covers with anti-slip surface – supports up to 6,000 kg wheel load and 3,400 kg point load
• Strong and safe construction – 5 cm thick high-strength steel scissors, with a reliable mechanical locking system independent from hydraulics
• Relocatable installation – the only in-ground lift on the market that can be dismantled and moved to a new location
• Accessories: wired remote control, adapters, adapter storage stand, biodegradable hydraulic fluid

Technical Specifications:

• Model: ECOLIFT (EC060 with 2 scissors, EC090 with 3 scissors, EC0120 with 4 scissors)
• Lifting system: Hydraulic
• Lifting capacity:
• 27,000 kg (EC060)
• 40,500 kg (EC090)
• 54,000 kg (EC0120)
• Lifting height: 1,780 mm
• Travel range (movable scissor): 3,000 / 4,000 / 5,200 mm
• Minimum wheelbase: Starting from 1,220 mm
• Lifting time: 90 seconds
• Motor power: 2 × 3.7 kW

Easy Operation with Ebright Smart Control System

• The intelligent control system features a 7-inch color touchscreen for intuitive and safe operation. The user can monitor the lifting process in real-time and operate the lift even while wearing gloves. The PIN code protection prevents unauthorized access.

Continuous Floor Level

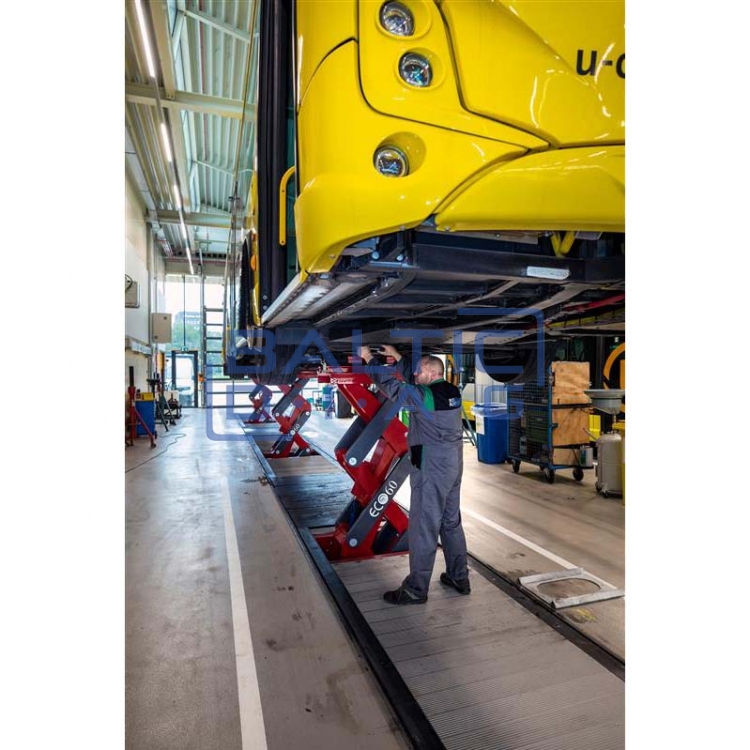

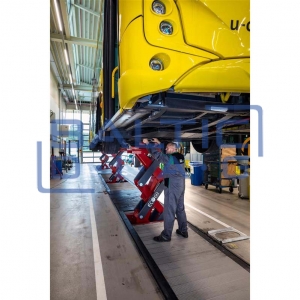

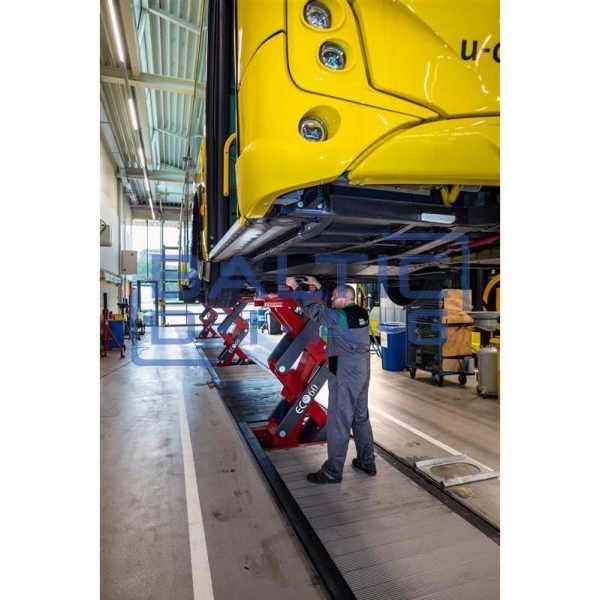

• The movable lifting unit can travel below floor level across the full operating zone. This feature is particularly beneficial when working with low-floor buses or trucks, ensuring safety, optimal space use, and easy access to lifting points.

Wide Range of Adapters

• The lift comes with a variety of adapter types, allowing the system to be easily adapted to different types of vehicles. This increases versatility and ensures precise and secure positioning during lifting operations.
