Plasma cutting machine 100A

Plasma cutting machine 100A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

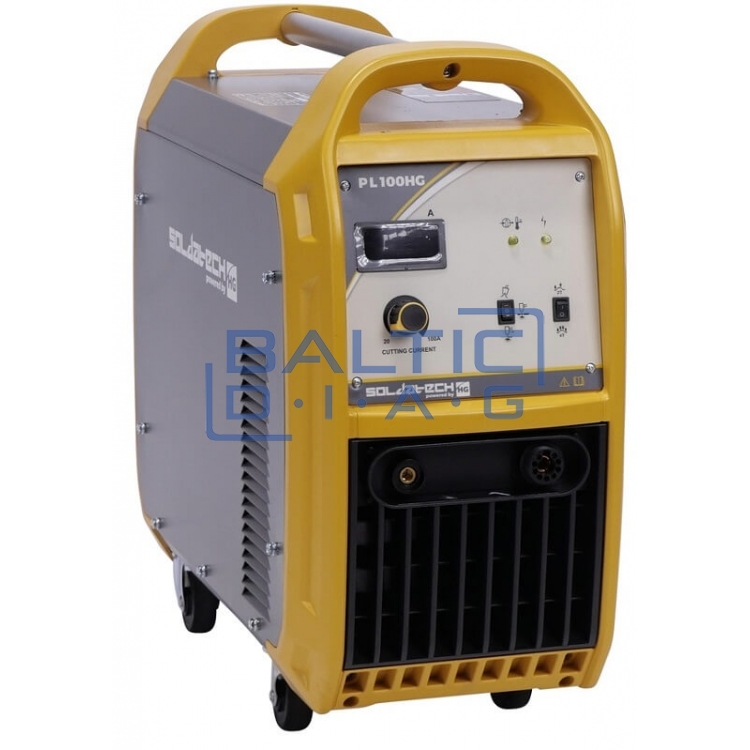

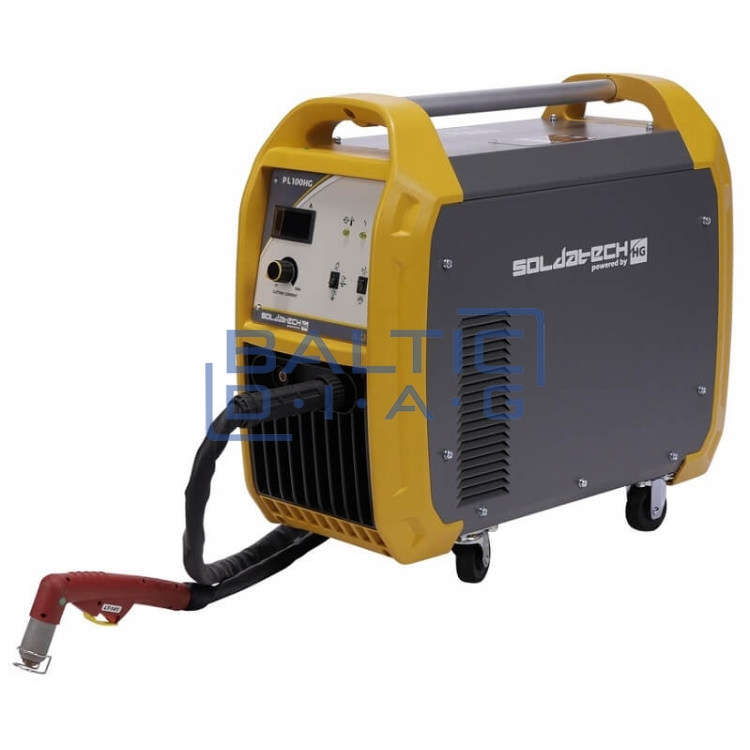

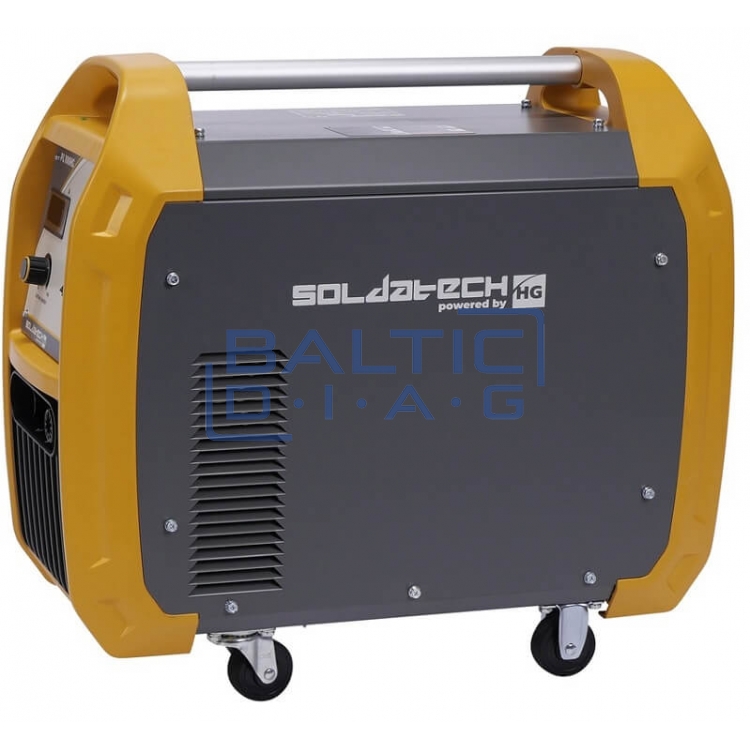

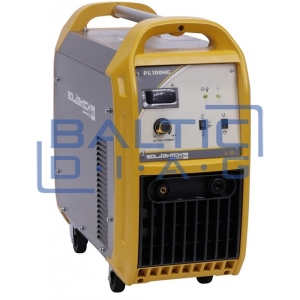

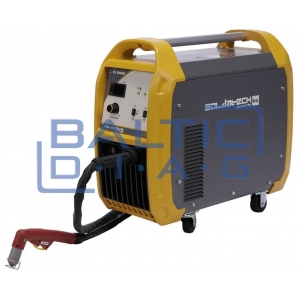

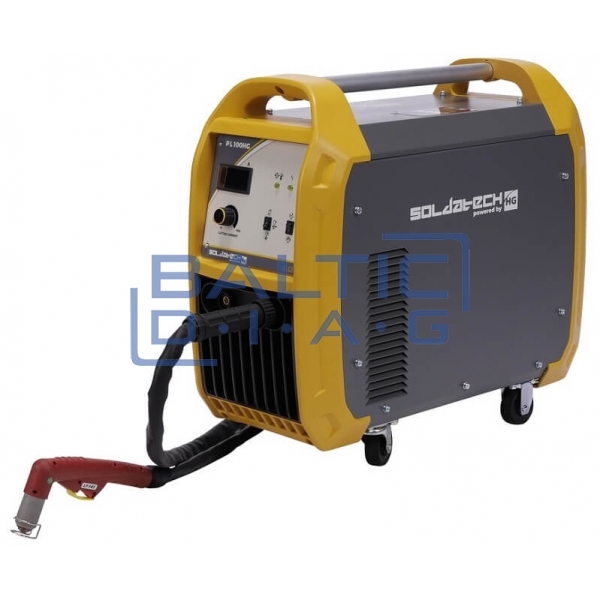

This Soldatech plasma cutter with HG plasma cutter excels in cutting steel and aluminum. The PL100HG is one of the heavier plasma cutters, it ignites very easily with HF ignition and easily cuts rusted, coated or structural material up to 35mm. The plasma cutter has four rotating wheels, so it is mobile during use. The PL100HG has a convenient control panel and can even be adjusted during cutting to achieve the best cutting result. Advanced IGBT inverter technology ensures that the PL100HG operates sustainably with higher power and longer duty cycles. Overload protection combined with a built-in fan prevents overheating and ensures high-quality cutting performance for a long time. Ideal for cutting carbon steel, low alloy steel, stainless steel and aluminum alloys.

Standard equipment:

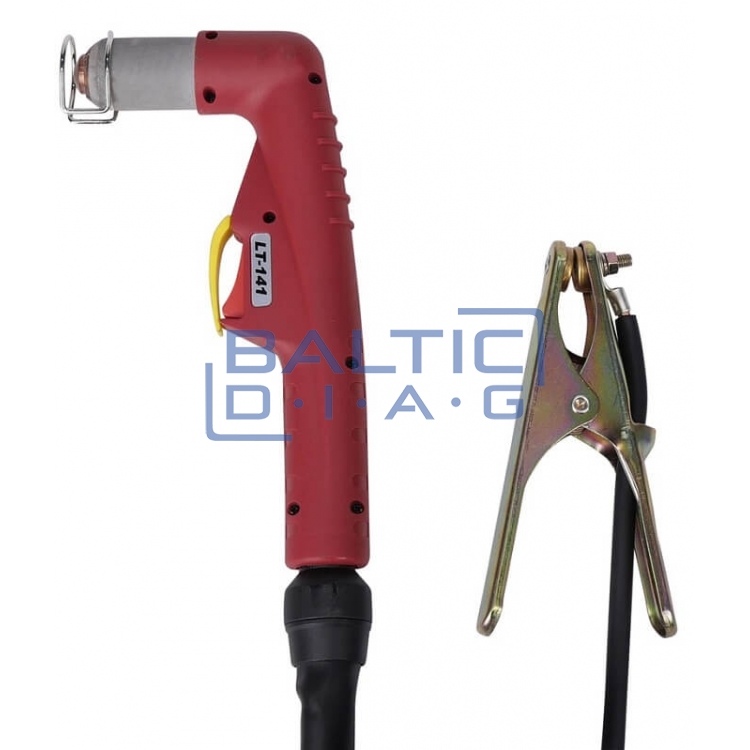

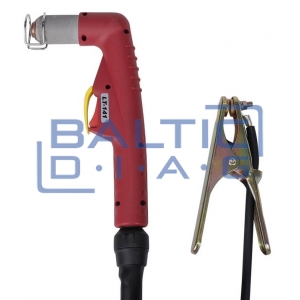

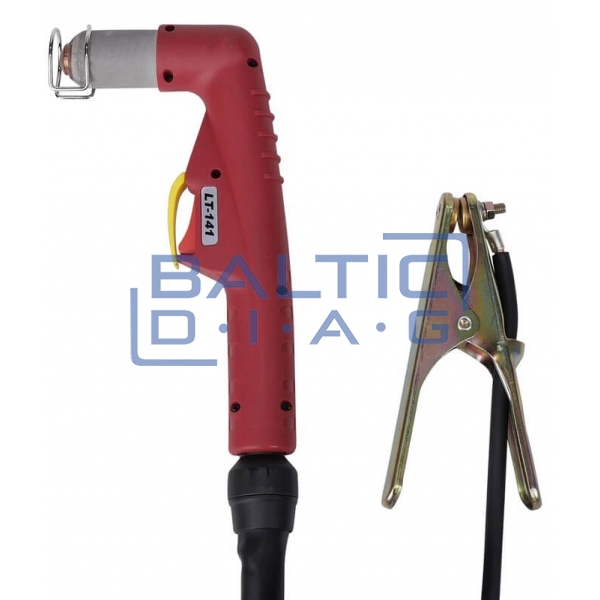

• Soldatech PL141M3 plasma torch with 5m cable
• Welding ground terminal with 3m 16 mm² cable
• Gas pipeline 4 m with hose clamps
• 5-pin 32A plug with 3 m 4x2.5 mm² cable
• European Dinse connectors 9 mm

Technical specifications:

• Voltage = 400V - 3 phases
• Frequency = 50/60 Hz
• Circuit breaker = 3x 20 A B-char
• Duty cycle (at 20°C ambient temperature) = 60% - 100 A
• Duty cycle (at 40°C ambient temperature) = 60% - 100 A
• Welding current range = 20 - 100 A
• Max. no load voltage = 325V
• Max. cutting thickness = 35 mm
• Average air/gas consumption = 220 L/min
• Protection class = IP21S
• Dimensions = 719 x 308 x 633 mm
• Weight = 43 kg
