Plasma cutter Hugong 50A PFC
Plasma cutter Hugong 50A PFC

Plasma cutter Hugong 50A PFC

  • SKU: BD70590
800.00 €

Prices shown include tax

Send Message

Description

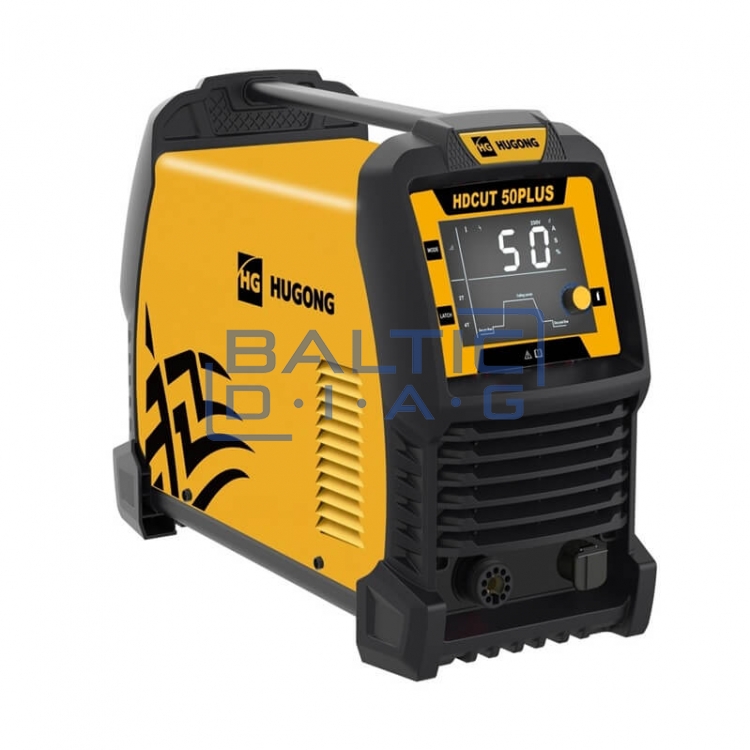

Hugong Plasma Cutter 50A PFC

Country of origin: Netherlands, warranty period – 24 months

The Hugong Plasma Cutter 50A PFC is a compact yet powerful 50A plasma cutting machine featuring modern IGBT inverter technology, digital control, and advanced PFC functionality, which ensures stable operation even with fluctuating voltage. Thanks to high-frequency (HF) ignition and Pilot ARC technology, this device cuts effortlessly through rusted, coated, or painted metal sheets without direct contact with the material. It is ideal for cutting stainless steel, low-alloy steel, and aluminum alloys up to 20 mm thick.

Features:
  • PFC module (Power Factor Correction): ensures smooth and stable electrical flow without surges, providing consistent cutting performance even under unstable voltage conditions
  • HDVision control panel: bright LED display with intuitive buttons for easy and quick adjustments
  • Pilot ARC ignition with HF: reliable contactless ignition – cuts through rust, paint, or coatings with ease
  • Shock-resistant ABS housing: durable and impact-resistant design suitable for tough working environments
  • Adjustable cutting current during operation: allows real-time optimization of settings for best results
Technical Specifications:
  • Voltage: 230V, 1 phase
  • Frequency: 50/60 Hz
  • Input power: 8.05 kVA
  • Start-up voltage: 320 V
  • Nominal input current: 24 A
  • Cutting current range: 20 – 50 A
  • Duty cycle (at 20°C): 40% at 50 A
  • Duty cycle (at 40°C): 20% at 50 A
  • Recommended cutting thickness: 12 mm
  • Maximum cutting thickness: 20 mm
Supplied with:
  • P80 plasma cutting torch – 5 m
  • Ground clamp with 3 m cable (10 mm², 200A)
  • Pressure reducing valve
  • Gas hose Ø 8 mm – 3 m
  • Hose clamps 10–16 mm (4 pcs)
Product Dimensions:
  • Length: 527 mm
  • Width: 223 mm
  • Height: 356 mm
  • Weight: 10.0 kg
Packaging Dimensions:
  • Length: 525 mm
  • Width: 420 mm
  • Height: 305 mm
