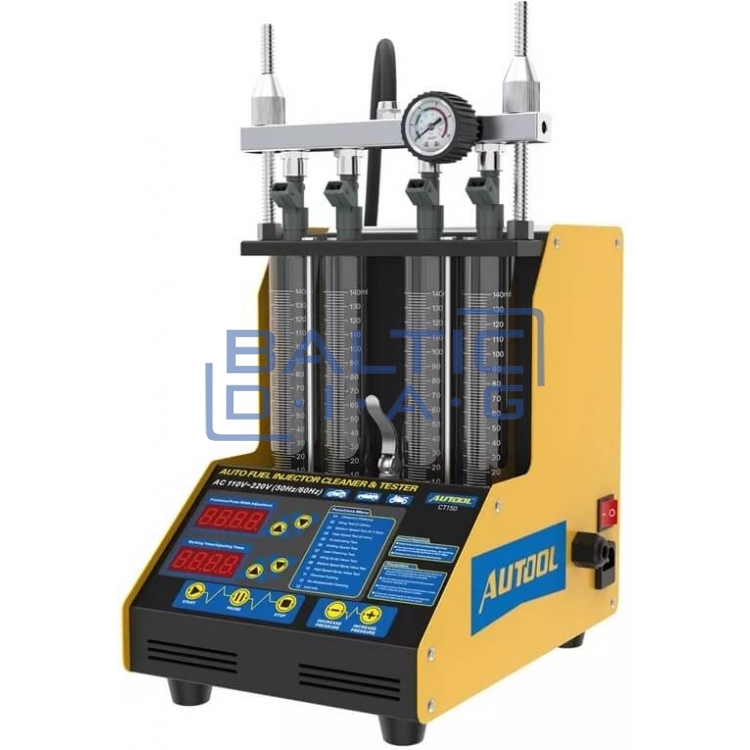

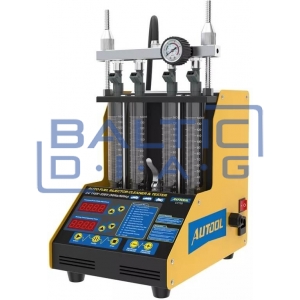

Petrol injector testing and washing device Autool CT150

Petrol injector testing and washing device Autool CT150

Manufacturer: Autool

Autool CT150 - a professional device for testing and washing four fuel injectors. With its help, you will be able to clean and test the injectors of gasoline cars and motorcycles. It is recommended to use 3M washing liquid for washing, and industrial alcohol for testing. This device can be of two types, Russian and English layout.

Using this equipment you will be able to test and clean the petrol injectors of the following cars and motorcycles:

Audi, Australia d, Benz, BMW, Brilliance, Chevrolet, Chevy, Chrysler, Citroen, Dacia, Dadi, Daewo, Daihatsu, Demo, Fiat, d, GM, Holden, Honda, Hyundai, Isuzu, Jaguar, Kia, Lancia, Land Rover, Mahindra, Maruti, Mazda, Mitsubish, Nissan, Opel, Peugeot, Porsche, Renault, Romeo, Rover, Saab, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Toyota, Volvo, VW, Yamaha.

CT series devices:

• Effectively cleans gasoline injectors
• Helps restore power and improve fuel economy
• Helps to improve idle speed and increases response to the accelerator pedal
• Helps eliminate unwanted jerking or stalling associated with stuck injectors
• Helps to see the working condition of individual injector

Advantages of Autool CT150:

• Very wide adaptability with various car and motorcycle injectors. Injector can not only be tested but also washed. You can also use it to wash diesel injectors.
• Easy to use, when washing, simply insert the petrol injector into the cavities in the wash tub and add the required amount of washing liquid. Washing can be done immediately after turning on the power. Testing is done by inserting the nozzles into the metal test liquid dispenser and into the glass flasks.
• Leading technology, as currently only Autool manufactures this portable and multi-functional car fuel injector cleaning and testing machine, which has received a special patent.
• The working voltage of the device is 110 - 230 V. But the fuse built into the device protects the device from current surges or short circuit.
• 3 year warranty

How the CT-150 test and wash unit works:

• Clean the outside of the injectors with cleaning fluids first before putting them back into the device. After placing the nozzles in the ultrasonic bath, fill the liquid so that it does not cover the electrical part of the injectors.
• Turn on the ultrasonic cleaning system to create ultrasonic energy to remove all particles and dirt that have accumulated inside the injector. After cleaning, the remaining cleaning liquid can be reused.
• Fixed test injectors can be tested for resistance, resistance and flow. The test liquid can be filled up to half glass flasks.

The main functions of the CT-150 test and washing machine:

• Ultrasonic cleaning of gasoline injectors
• Cleaning the spark plugs. Place the spark plugs in the cleaning tank, add fluid and start cleaning
• Test the nozzles in their various operating modes. Check for tightness and plugging
• Ability to wash injectors without removing them (requires additional accessories)
• Ability to clean the throttle valve without removing it (requires additional accessories)
• Flushing and testing functions for Honda, Yamaha, Suzuki, Sanyang gasoline injectors (additional accessories required)

Technical parameters:

• Supply voltage: 220 V / 50 Hz / 1 phase
• Ultrasonic cleaning power: 70 W
• Ultrasonic cleaning frequency: 28 kHz / +- 0.5 kHz
• Main unit dimensions: 300 x 220 x 320 mm
• Package dimensions: 395 x 295 x 370 mm
• Package weight: 10 kg

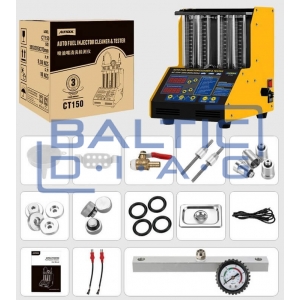

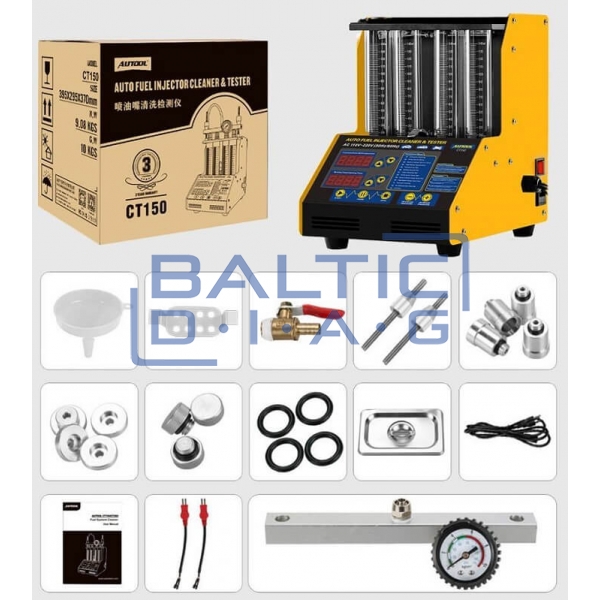

The set includes:

• 1 x Autool CT150 petrol injector testing and cleaning device
• 1 x Test Fluid Dispenser
• 1 x Funnel
• 2 x injectors control wires
• 1 x washer fluid drain valve
• 2 x locking screws
• 4 x flush connection
• 4 x spacers
• 3 x plugs
• 4 x rubber sealing gaskets
• 1 x Ultrasonic Bath Cover
• 1 x Ultrasonic Bath Cart
• 1 x Power Cord
• 1 x user manual
