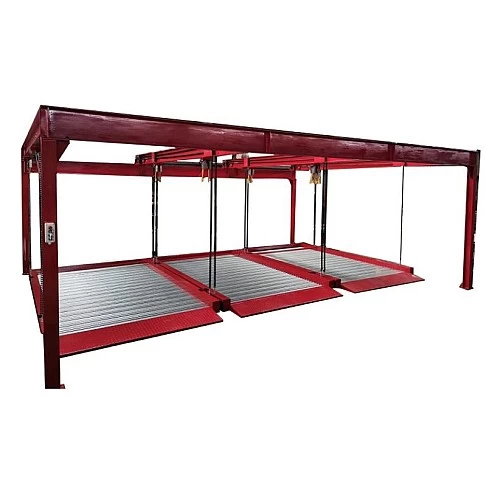

Parking Lift for 6 Cars

Country of origin: China, warranty period – 24 months

This is a reliable and efficient parking lift designed for safe and compact vertical storage of up to 6 cars. The model is perfectly suited for car storage facilities, service centers, or multi-level parking lots where space optimization is essential. The lift operates using chains and a modular drive system, controlled by a PLC controller or key. The platform height allows for safe parking of vehicles with varying heights.


Features:
  • Accommodates up to 6 cars at the same time
  • Compact platform dimensions – ideal for limited spaces
  • Automatic PLC control system with additional key operation option
  • Fast lifting and lowering cycle – only 20 seconds
  • Reliable drive system – chain and modular drive
  • Sturdy construction with optional hot-dip galvanizing or powder coating
  • Suitable for parking passenger vehicles up to 2000 kg each
Technical Specifications:
  • Car size: 5000 × 1850 × 1550/2050 mm
  • Number of parking spaces: 6
  • Load capacity: ≤2000 kg
  • Lifting height: 1800 / 2100 mm
  • Platform width: 2100 mm
  • Motor power: 2.2 kW
  • Lifting/lowering time: 20/20 sec
  • Control mode: PLC control + key
  • Drive type: modular drive and chain
  • Lifting chain: 16A
  • Power supply: 220/415V, 50/60 Hz, 1/3 phase
  • Equipment size: 7385 × 6000 × 2838 mm
  • Package dimensions: 5900 × 1250 × 1300 mm and 1050 × 650 × 1150 mm
