Oil pump for liquid oil with wheels for barrels from 180 to 200 L

Oil Pump for Liquid Oil with Wheels for Barrels from 180 to 200 L

Country of origin: China, warranty period - 24 months

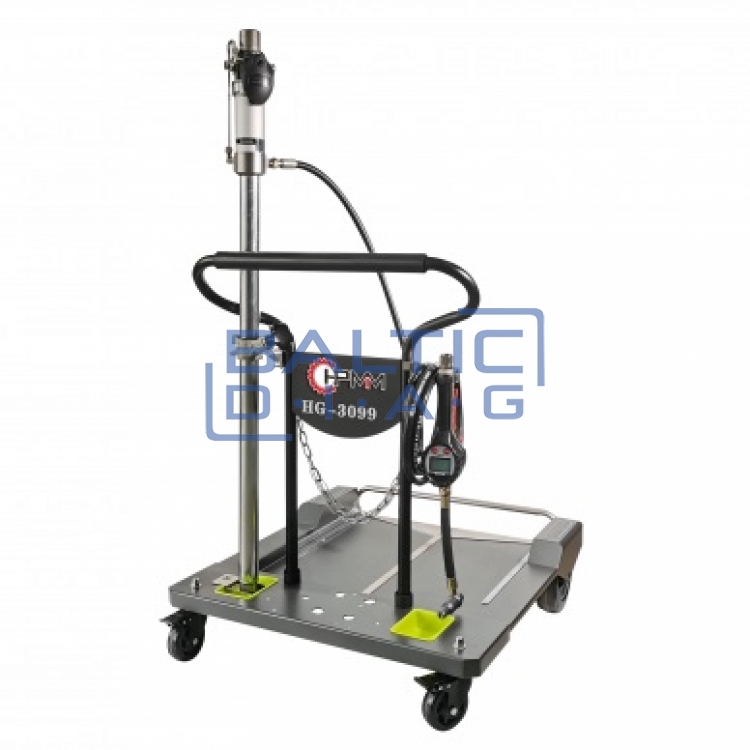

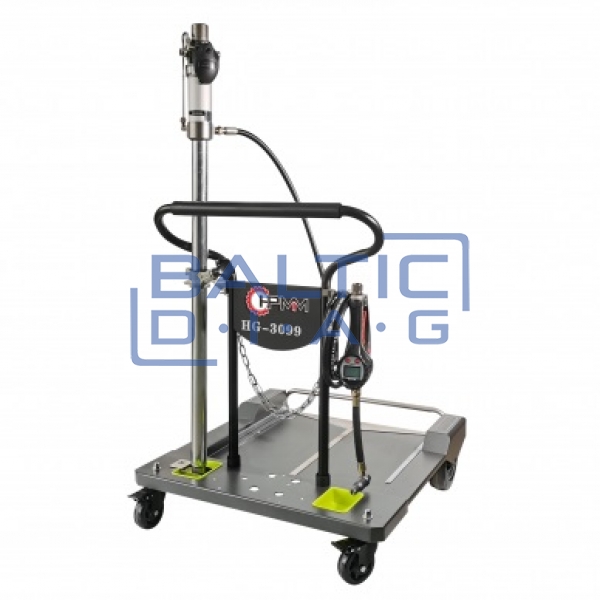

The oil pump for liquid oil with wheels is a reliable and efficient solution for extracting oil from barrels ranging from 180 to 200 liters. This pump is easily transportable, making it ideal for use in workshops and service centers. With its high performance and an electronic meter for precise measurement, the device ensures smooth and accurate oil transfer.

Features:

• Suitable for barrels from 180 to 200 L.
• 3:1 oil pump with a flow rate of up to 30 L/min, ensuring efficient operation.
• Maximum oil pressure of 24 bar, suitable for intensive tasks.
• Electronic meter with a flexible hose and nozzle for precise measurement of transferred oil.
• Wheels for easy movement and placement in the desired location.

Technical Specifications:

• Pump type: 3:1 (30 L/min)
• Suction pipe length: 940 mm
• Working pressure: 4–8 bar
• Maximum continuous flow rate: 22 L/min (with a 4 m hose and nozzle)
• Maximum oil pressure: 24 bar
• Suction pipe Ø: 46 mm
• Electronic Meter:
• Accuracy: ±0.2%
• Working pressure: 3–70 bar
• Inlet/outlet: 1/2"
• Inner diameter: 10 mm
• Power supply: DC 3V

Hose Connection:

• Size: 1/2" x 4 m

Package Dimensions:

• 1320 x 110 x 120 mm
• 800 x 660 x 140 mm
• 330 x 145 x 115 mm
