Country of origin: Italy, warranty period – 24 months
The device has dual voltage 230V/400V. Optional accessories listed below can be purchased for this device, and the pulsed TIG function can be activated!

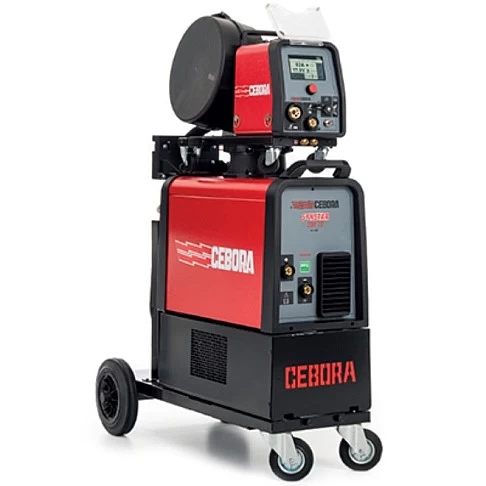

CEBORA SYNSTAR 350 TS is a three-phase synergic inverter welding power source designed for MIG/MAG and MMA welding. This model stands out with dual voltage input, a powerful 4-roll aluminum wire feeding system, a large color touchscreen, and the ability to use pulsed and double-pulse synergic programs. The unit is suitable for various industries – from chemical and food to road construction, energy, transportation, and tank manufacturing.
Functions:
Dual voltage power supply
Aluminum 4-roll wire feeding mechanism (Ø 30 mm)
Ready for connection to a cooling unit
Trolley with grounding cable (3.5 m – 50 mm²)
Maximum current – 350 A (60% duty cycle at 40 °C)
5-inch color touchscreen with adjustable parameters: arc length, 2/4 stroke, spot and pause time, inductance, burnback, Soft Start, pre- and post-gas flow
Pulsed mode (SHORT or PULSE)
Three automatic functions for aluminum welding (3 levels, Auto Hot Start, Auto Crater Filler)
Programs for wires: 0.8 / 1.0 / 1.2 mm (steel, aluminum, stainless steel), 1.2 mm flux-cored wire
Compatible with electrodes Ø 1.6 – 6.0 mm
Software updates via USB and RS232 ports
Option to integrate analog interface (Art. 456)
Technical specifications:
Power supply (MIG/MAG): 230 V ±15 % / 400 V ±15 %, 50/60 Hz
Power supply (MMA): 400 V ±15 %, 50/60 Hz
Fuse (MIG/MAG): 28 A
Fuse (MMA): 16 A
Power (MIG/MAG): 13.3 kVA 40 %, 12.2 kVA 60 %, 11 kVA 100 %
Power (MMA): 12.4 kVA 40 %, 10.8 kVA 60 %, 10.2 kVA 100 %
Power (TIG): 14.2 kVA 60 %, 10.6 kVA 100 %
Current adjustment range (MIG/MAG): 10 – 340 A
Current adjustment range (MMA): 10 – 350 A
Current adjustment range (TIG): 10 – 330 A
Duty cycle MIG/MAG (10 min. at 40 °C): 340 A 40 %, 320 A 60 %, 300 A 100 %
Duty cycle MMA (10 min. at 40 °C): 350 A 60 %, 300 A 100 %
Duty cycle TIG (10 min. at 40 °C): 330 A 60 %, 280 A 100 %
Adjustment: electronic, stepless
Wire types:
0.8 / 1.0 / 1.2 mm (steel)
0.8 / 1.0 / 1.2 mm (aluminum)
0.8 / 1.0 / 1.2 mm (stainless steel)
1.2 mm flux-cored wire
Maximum spool size: Ø 300 mm / 18 kg
Protection class: IP23S
Weight: 95 kg
Dimensions (LxWxH): 527 x 1078 x 1398 mm
Available accessories:
Interface kit for PUSH-PULL torches
Analog interface kit
5 m – 70 mm² cable between power source and wire feeder
1.5 m – 70 mm² cable
10 m – 70 mm² cable
15 m – 70 mm² cable
20 m – 70 mm² cable
25 m – 70 mm² cable
2 gauge flowmeter
Aluminum welding kit: 4.3 m liner for 0.1–1.2 mm wire and gas pipe (for torches 1243–1245)
4.3 m liner for 1.2–1.6 mm aluminum wire (for torches 1243–1245)
Calibration certificate (ordered with the generator, return to Cebora possible)
