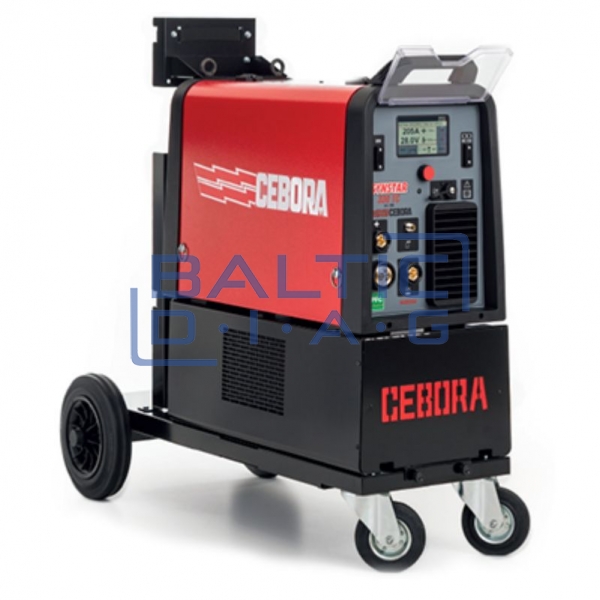

Multiprocess welding machine SYNSTAR 330 TC CEBORA

Multiprocess welding machine SYNSTAR 330 TC CEBORA

Country of origin: Italy, warranty period – 24 months

Optional accessories for this device are listed below and activate the impulse TIG function!

CEBORA SYNSTAR 330 TC is a three-phase synergic multiprocess welding machine designed for MIG/MAG, DC TIG (with “Cebora lift” ignition), and MMA welding processes. The device is equipped with a large LCD touchscreen, allowing easy control of a wide range of parameters and functions, including PULSE and DOUBLE PULSE modes. The SYNSTAR 330 TC is ideal for use in the chemical, food, metalworking, road construction, body repair, agricultural, railway, and energy sectors.

Functions:

• Aluminum four-roller wire feed mechanism (Ø 30 mm)
• Trolley with ground cable (3.5 m – 50 mm²)
• Pre-arranged for connection to a cooling unit
• More than 70 welding programs for various wires (0.8–1.2 mm), including programs for thin sheet welding
• Double current output for both MIG and MMA modes
• PULSE TIG function activation
• Large 5" color touchscreen
• Adjustable parameters: arc length, 2/4 stroke, spot and pause time, inductance, burn back, soft start, pre-gas and post-gas time
• Three automatic functions for optimal aluminum welding
• Firmware updates via USB port
• Ready for wireless connectivity with an auto-darkening helmet
• Additional gas valve and connection for TIG mode

Technical specifications:

• Power supply: 400 V, 50/60 Hz, +15 % / -20 %
• Fuse: 16 A, slow-blow
• Power (MIG/TIG): 12.4 kVA at 40 %, 10.8 kVA at 60 %, 9.2 kVA at 100 %
• Power (MMA): 11.6 kVA at 40 %, 10.2 kVA at 60 %, 9.3 kVA at 100 %
• Current adjustment range (MIG/TIG): 10 – 330 A
• Current adjustment range (MMA): 20 – 300 A
• Duty cycle MIG/TIG (10 min at 40 °C): 330 A 40 %, 300 A 60 %, 270 A 100 %
• Duty cycle MMA (10 min at 40 °C): 300 A 40 %, 270 A 60 %, 250 A 100 %
• Regulation: electronic, stepless
• Wire types:
• 0.8 / 0.9 / 1.0 / 1.2 mm (steel)
• 0.8 / 0.9 / 1.0 / 1.2 mm (aluminum)
• 0.8 / 0.9 / 1.0 / 1.2 mm (stainless steel)
• 0.8 / 1.0 mm (CuSi3%)
• 0.8 / 1.0 mm (CuAl8 / AlBz8)
• Max. spool size: Ø 300 mm / 15 kg
• Protection class: IP23S
• Weight: 72 kg
• Dimensions (LxWxH): 510 x 1022 x 960 mm

Available accessories:

• CEBORA PUSH-PULL (UP/DOWN) torch
• CEBORA 380 A water-cooled torch
• CEBORA 280 A air-cooled MIG torch
• GRV14 torch cooling unit
• Gas flowmeter with 2 pressure gauges
• Aluminum welding kit (4.3 m liner hose, wire guide pipe for 1.0–1.2 mm)
• Aluminum wire hose 4.3 m for 1.2–1.6 mm wire
• BINZEL ‘ABITIG 450 W’ TIG water-cooled torch (4 m)
• Adapter for connecting TIG BINZEL torch (Art. 2068)
• Digital-analog adapter kit for UP/DOWN torch
• Power source calibration certificate
