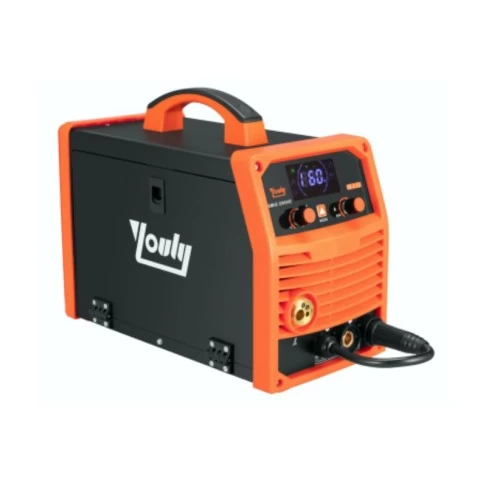

Multifunctional inverter type semi automatic MIG/MAG/MMA/TIG Welder

Multifunctional inverter type semi automatic MIG/MAG/MMA/TIG Welder

Country of origin: China; warranty period: 24 months

This multifunctional inverter semi-automatic welding machine is designed for MIG/MAG, MMA, and TIG welding in workshops, garages, and on farms, as well as for various repair and metal fabrication tasks. A single unit allows you to work with welding wire, electrodes, or a tungsten electrode in inert gas, making it convenient to adapt the welding method to the type of metal and the task at hand. IGBT inverter technology helps ensure a stable welding process, while the compact body and light weight make the unit easy to transport.

Technical Specifications:

• Input voltage: 230 V / 50–60 Hz
• Output current: 15–200 A
• Welding current range in MIG/MAG mode: 40–200 A
• Welding current range in MMA mode: 20–200 A
• Welding current range in TIG mode: 15–200 A
• Rated output voltage in MIG/MAG mode: 15.5–24 V
• Rated output voltage in MMA mode: 20.8–28 V
• Rated output voltage in TIG mode: 10.4–18 V
• Duty cycle: 60%
• Power factor: 0.73
• Efficiency: 85%
• Welding wire diameter: 0.6–1.0 mm
• Welding wire diameter for gasless welding: 0.8–1.0 mm
• Electrode diameter: 1.6–4.0 mm
• Tungsten electrode diameter: 1.6–2.4 mm
• Maximum wire spool diameter: 200 mm
• Wire feed speed adjustment range: 2–13 m/min.
• Protection class: IP21
• Electrical insulation class: F

This 200 A semi-automatic welder is a practical choice for users who need a single, versatile machine for multiple welding methods. MIG/MAG, MMA, TIG, and gasless welding capabilities allow for flexible performance of daily repair, maintenance, and metalworking tasks.
