Multi-functional tester for cars Autool BT280

Multi-functional tester for cars Autool BT280

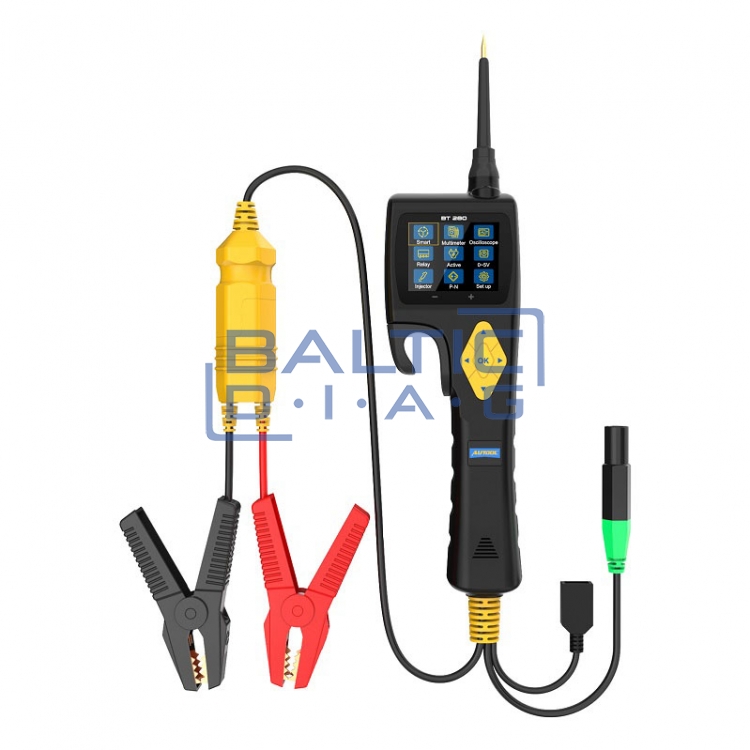

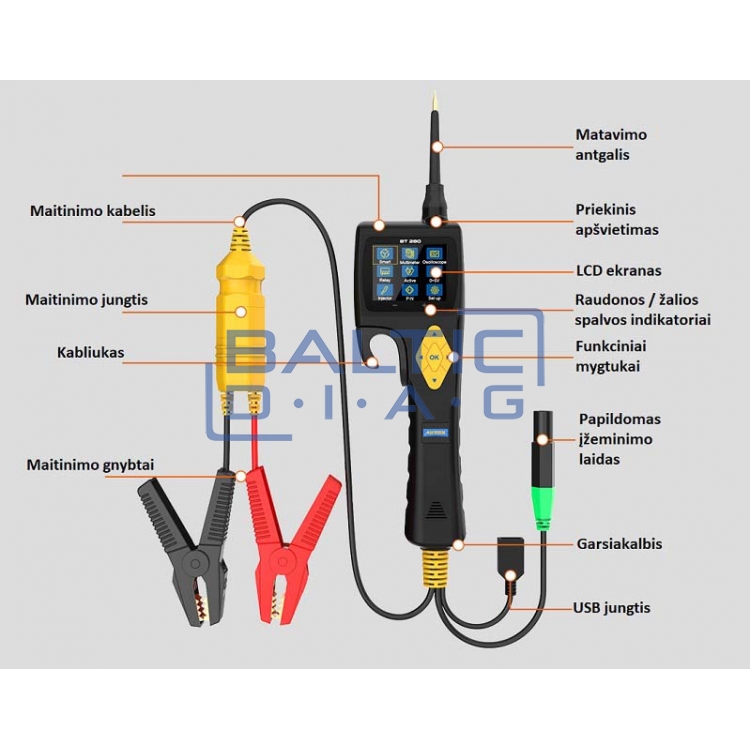

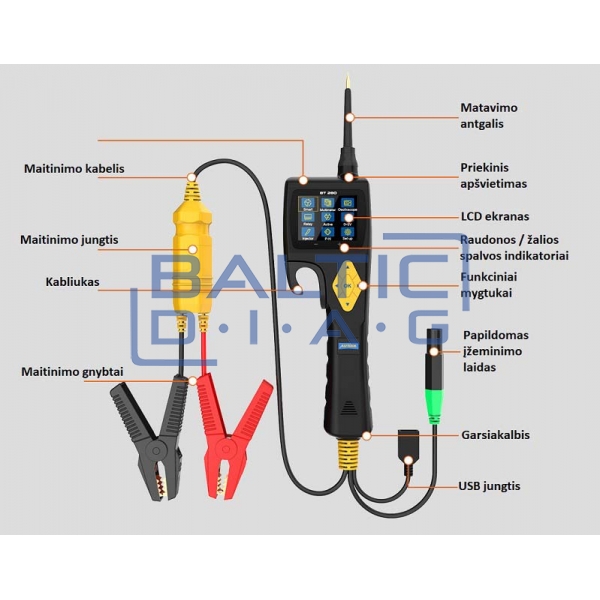

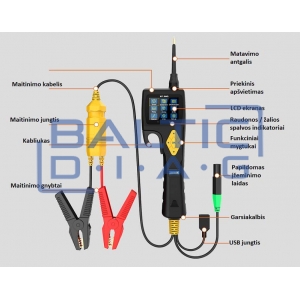

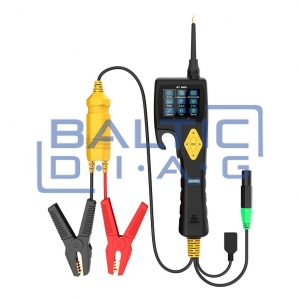

Autool BT280 is a new generation multifunction tester for cars, which has a 2.4" LCD screen. This tester is designed to work within the voltage range of 9 - 30 V. With it, you will be able to quickly perform tests of various electrical circuits, measure voltage values, etc.

Features:

• Multimeter mode and smart measurement - the device has a smart multimeter function, with its help you will be able to quickly and automatically measure voltage, resistance and determine the polarity of components, which greatly facilitates and speeds up diagnostic work.
• Oscilloscope mode and relay testing - Autool BT280 can not only display the voltage, frequency, time and other parameters of the measured components graphically, but also has the ability to perform traditional 5, 4 pin relay testing.
• Component Activation and Injection Mode - The device can generate active signals for various components such as lamps, motors, etc. Also, 4 different types of pulse signals can be generated for nozzle testing. In this way, it is much easier and more accurate to determine their faults.
• 0 - 5 V power supply with warning signal - the possibility to make Autool BT280 as a power source that would generate a voltage from 0 V to 5 V, which would facilitate diagnostic works of wiring and components. Also, you will find an audible signal in the device, with the help of which you will be able to identify short circuits in the electrical circuit and inconsistencies in the set voltage.
• Multi-Language Menu - The control menus have more than 14 languages, you can set the device to English, Spanish, German, Russian, Italian, Polish, Portuguese, French and others
• Three-year warranty period

Technical parameters:

• Screen: LCD 320 x 240 DPI, TFT color
• Operating temperature: 0 - +60 °C
• Storage temperature: - 10 – +70 °C
• External power supply: 12 or 24 V DC
• Minimum operating voltage: 9 V
• Operating voltage: 9 - 30 V
• Measured voltage: 0.1 - 100 V
• Measured resistance: 1 - 200 kΩ
• Measured current: 0 - 18 A
• Power cord length: 6 m

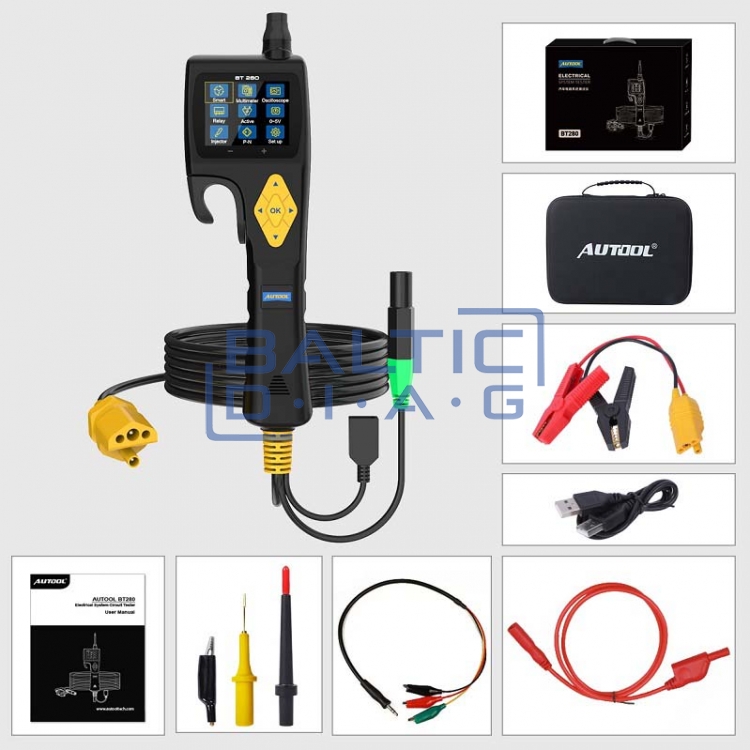

Complete set:

• Autool BT280 multifunction tester
• Copper test tip
• Extension cords
• Accumulator battery crocodiles
• Relay test leads
• Test tip

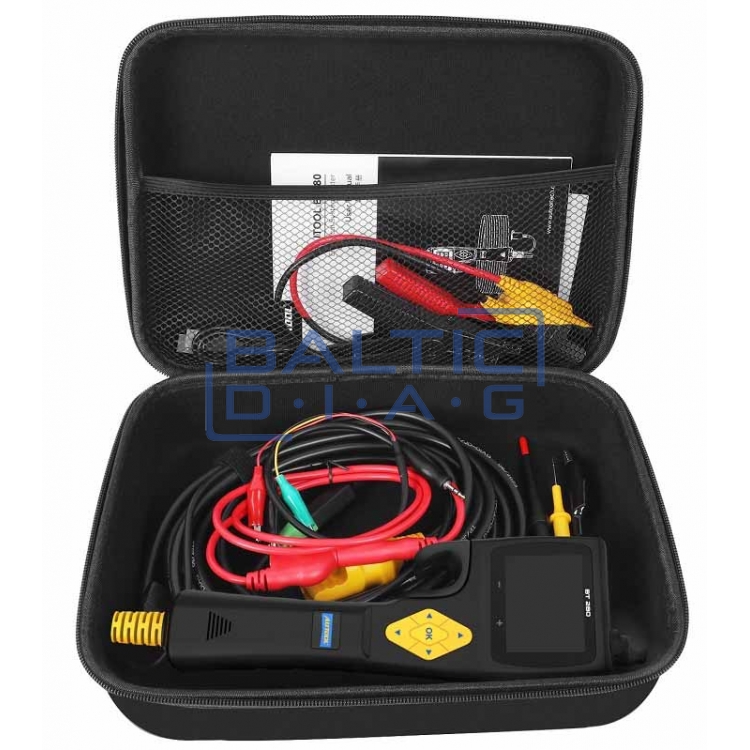

• Equipment bag
