Motorcycle diagnostic tool MS50 STD OBDSTAR

Motorcycle Diagnostic Tool MS50 STD OBDSTAR

Country of origin: China, warranty period – 24 months

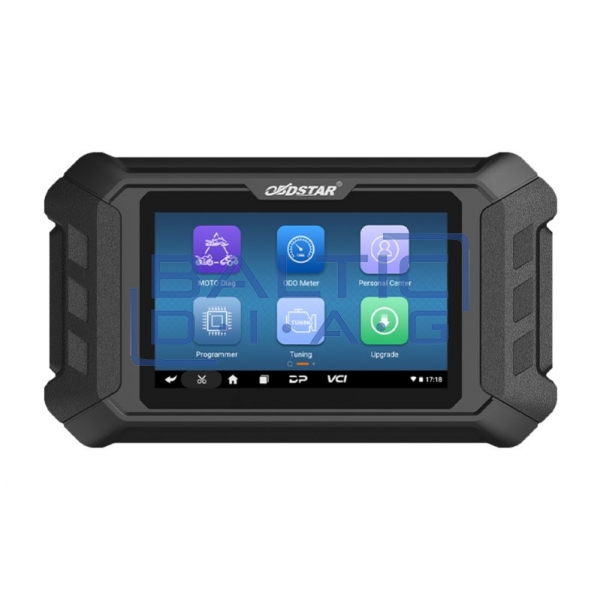

MS50 is a professional, compact-sized diagnostic tool specifically designed for the diagnostics of motorcycles, snowmobiles, ATVs, and UTVs. The device runs on Android 5.1.1, powered by a quad-core RK3128 processor, and features a 5-inch capacitive touch screen and built-in Wi-Fi. The diagnostic device supports a wide range of manufacturers from Asia, Europe, China, and the Americas, offering powerful functionality: from standard OBD procedures to odometer recalibration and tuning. The MS50 STD version includes the widest range of compatible adapters and advanced functions, allowing for deep system analysis and programming.

Functions:

• Android 5.1.1 operating system
• Intuitive menu and easy navigation
• Diagnostics: fault code reading and clearing, data stream, activation tests, settings, coding
• Real-time data recording and playback
• Automatic system scanning and VIN recognition
• One-click software update via Wi-Fi
• Remote assistance via one-click connection
• Odometer recalibration, tuning, ECU settings, module programming, TPMS, service light reset, A/F value adjustment, EOL mode, etc.

Diagnostics supported for the following vehicle groups:

ASIA:

• AEON, BAJAJ, BENELLI (DSK), HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TVS, YAMAHA

EUROPE:

• APRILIA, BENELLI, HM, HUSQVARNA, KTM, PIAGGIO, ROYAL ALLOY, VESPA

CHINA:

• CHINA ABS, CHINA ENGINE, CFMOTO, HAOJUE, LINHAI, QJBENELLI, SHINERAY, WYHONDA, XDZHONDA, ZONTES

AMERICAS:

• ACELLERA, VICTORY_colombia

Cluster Recalibration supported:

• KTM

Programming via memory dump:

EUROPE:

• APRILIA, BENELLI, BMW, CAGIVA, DUCATI, GENERIC, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, TRIUMPH

AMERICAS:

• BUELL, HARLEY-DAVIDSON

ASIA:

• HONDA, KAWASAKI, SUZUKI, YAMAHA

CHINA:

• HAOJUE, KYMCO

Tuning supported:

• HONDA

Technical specifications:

• Operating system: Android 5.1.1
• Processor: RK3128 quad-core ARM Cortex-A7
• Battery: 2600 mAh, rechargeable polymer lithium battery
• Memory expansion: supports up to 32 GB micro SD (TF) card
• Display: 5.0-inch capacitive touch screen
• Screen resolution: 800 x 480
• Wi-Fi: supported
• Operating temperature: -20°C ~ 55°C
• Storage temperature: -20°C ~ 70°C
• Weight: approx. 700 g
• Dimensions: 198 mm x 115 mm x 31 mm

Accessories included in the STD configuration:

• M001A – Main cable
• M002 – Power cable
• M003A – Multifunction jump cable
• M004 – MULTI-3 adapter
• M005 – KAWASAKI 4+6 pin adapter
• N012A – SUZUKI 6 pin adapter
• N015A – HONDA 4 pin adapter
• M018A – YAMAHA 3+4+3 pin adapter set
• N019 – KTM 6 pin adapter
• N021A – MULTI-6 adapter
• N026 – SYM 3 pin adapter
• N027 – KYMCO 3 pin adapter
• M028 – PGO 6+6 pin adapter
• M030 – HARTFORD 6 pin adapter
• N041 – OBD 6 pin adapter
• 12V2A – Charger
