Mobile pneumohydraulic jack AC Hydraulic 25/10 ton
Mobile pneumohydraulic jack AC Hydraulic 25/10 ton

Mobile pneumohydraulic jack AC Hydraulic 25/10 ton

  • SKU: BD13600
Price

1,712.15 €

Price in store with tax

1,712.15 €

Prices shown include tax

Send Message

Description

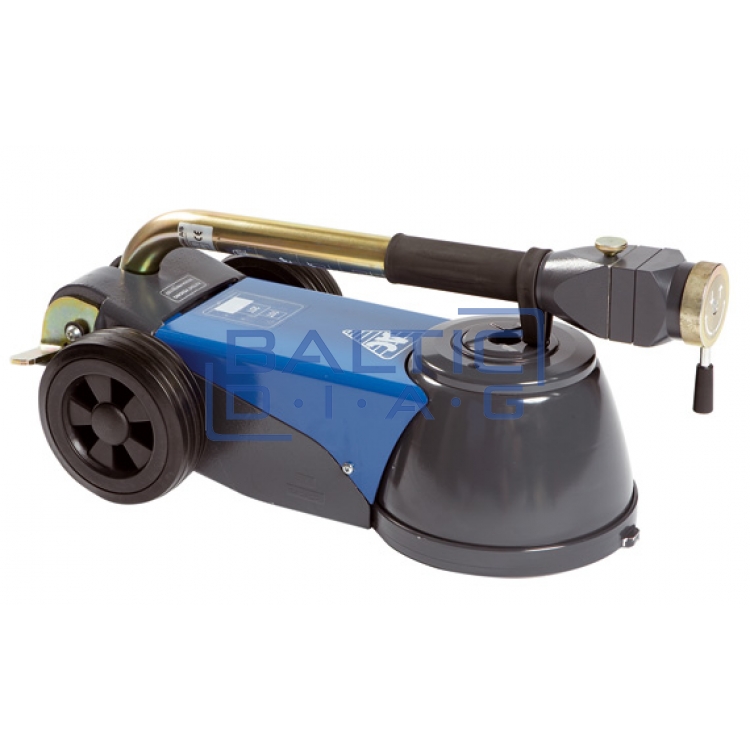

AC Hydraulic B25-2 portable pneumatic hydraulic jack


AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Portable pneumatic-hydraulic jack, well suited for tech support in machinery and elsewhere

Description:

- Low 160 mm height and 28 kg weight
- Comfortable design - no loose hoses, knobs or valves
- Easy operation - handle can be used for carrying, lifting, lowering and maneuvering
- Solid chrome plated cylinder for durability
- Manual emergency control for optimum safety during lifting and lowering
- Supplied with two extensions (50/100 mm)
- Manufacturer: Denmark
- Warranty: 3 years

Technical parameters:

- Lifting capacity: 25/10 tonnes
- Minimum height: 160 mm
- Maximum height: 235/320 mm
- Case length: 535 mm
- Handle length: 550 mm
- Width: 225 mm
- Width (with wheels): 290 mm
- Required compressed air pressure: 9 - 12 bar
- Required compressed air flow: 350 L / min
- Weight: 28 kg
